11 Assembly
23342
Assembly
Gauge Wheel Arms
Refer to Figure 7
1. With box in rack, attach gauge wheel
arms to box using pin and 5/8-11 x 4 bolt.
2. Remove inside and outside hub assem-
bly from gauge wheel arms.
Refer to Figure 8
3. Attach transport lock channel (5) to
gauge wheel arm and gauge wheel flex
lug (2) using pin (4).
4. Remove shipping wire securing hydraulic
cylinder to box. Attach hydraulic cylinder
(1) from box to gauge wheel flex lug (2)
using 1.25 x 3.88 clevis pin (3).
5. Repeat on other side of drill.
23299

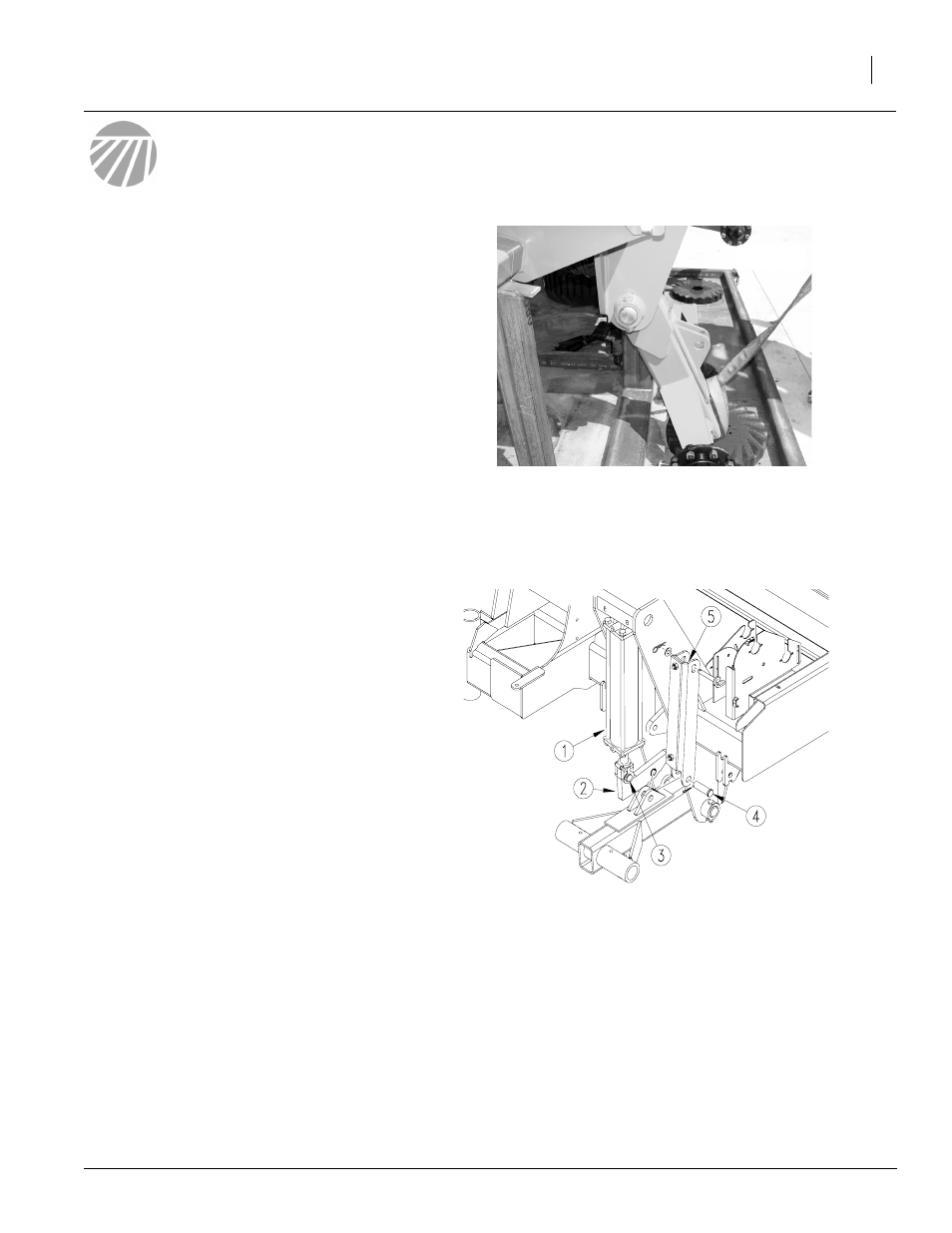

Figure 7
Attaching Gauge Wheel Arms
Figure 8
Attaching Hydraulic Cylinder
