The following headings are step-by-step instructions for
assembling the Verti-Drill. Begin with Tools Required
and Pre-Assembly Checklist to make sure you have all
necessary parts and equipment. Then proceed with
Unload Drill from Truck. Follow each step in order to
make the job as quick and safe as possible and produce
a properly working machine.
The Verti-Drill is shipped via flat bed truck. It is the deal-
er’s responsibility to unload the drill. Unload all equip-
ment before beginning assembly. Do not attempt any
assembly work while the Verti-Drill is on the truck.
Tools Required
•
General hand tools
•
Forklift, crane, or loader capable of lifting 6,000lbs
Pre-Assembly Checklist
1. Read and understand “Important Safety Informa-
tion” on page 1 before assembling.
2. Have at least two people on hand while assem-
bling.
3. Make sure the assembly area is level and free of
obstructions (preferably an open concrete area).
4. Have all major components.
5. Have all fasteners and pins
shipped with drill.
IMPORTANT: If a pre-as-
sembled part or fastener is
temporarily removed, re-
member where it goes.
Keep the parts separated.
6. Have a copy of the parts
manual on hand. If unsure
of proper placement or use
of any part or fastener, refer
to the parts manual.
7. Check that all working parts are moving freely,
bolts are tight, and cotter pins are spread.
8. Check that all safety labels and reflectors are
correctly located and legible. Replace if improp-
erly located or damaged. Refer to Safety De-
cals, “Important Safety Information” in the
operator’s manual.
Unload Drill from Truck
1. Using a forklift or tractor, remove drill from truck.
2. When ready to assemble drill, place it in an
open, level area. Make sure there is enough
overhead and side clearance to fold and unfold
assembled drill.
Unload Rack
Refer to Figure 1
1. Unload all loose pieces from rack. Keep all piec-
es separate.
2. Unscrew bolts securing walkboard to rack.
3. Remove shipping wire securing handrailing to
rack.
Pre-Assembly

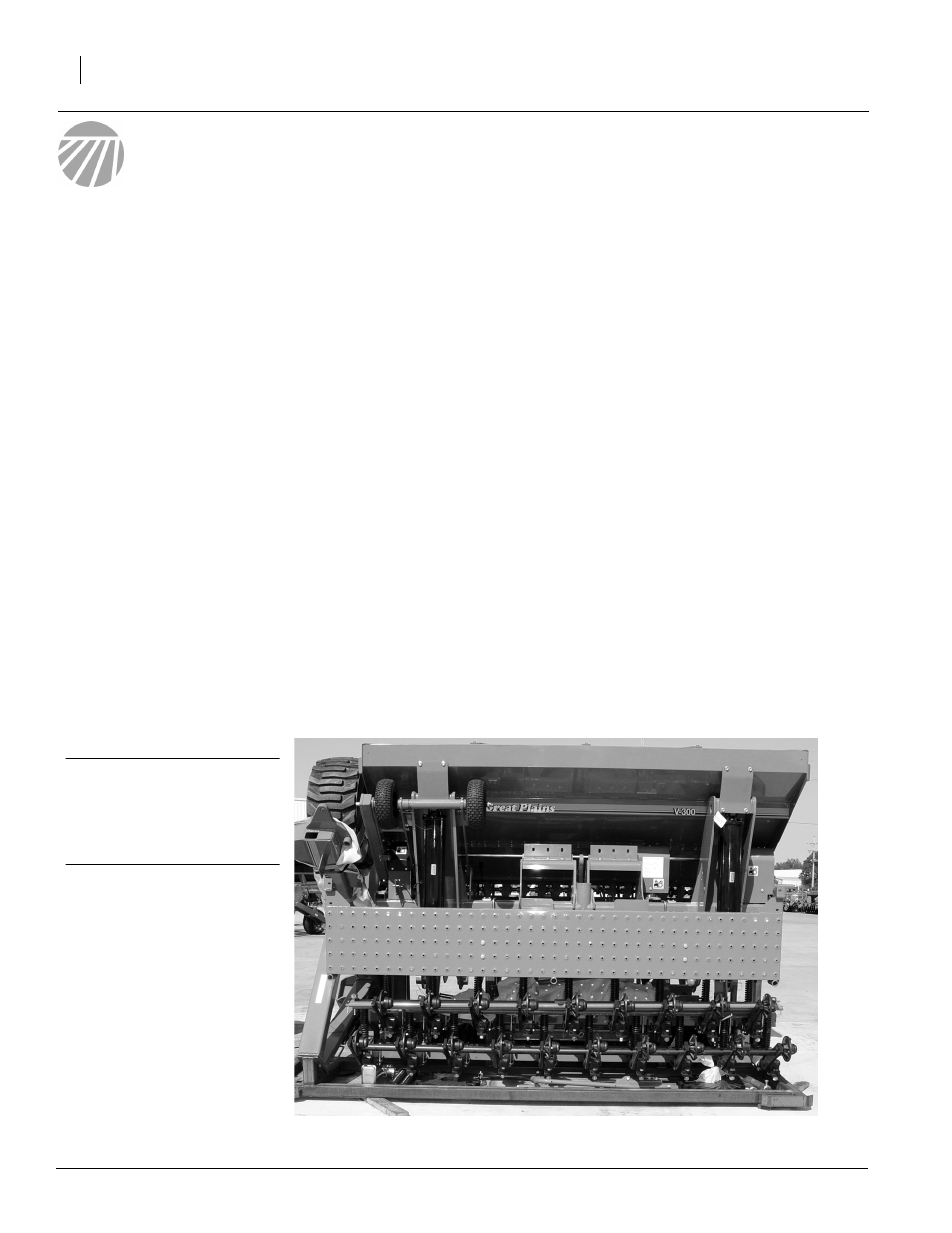

Figure 1
Unloading Rack
23330
