Manual Pak
NOTE: If drill is equipped with small seeds box, the
manual pak will need to be mounted according to the
instructions below. If drill is not equipped with small
seeds box, manual pak should already be mounted on
back of drill.
Refer to Figure 46
1. Place 1000 small seeds chain guard on FCP 1000
small seeds left-hand drive bracket weldment.
Refer to Figure 47
2. Secure handle, mounting plate, and small seeds
chain guard to small seeds left-hand drive bracket
weldment with two 1/2-13 x 1 1/2 self tapping
screws.
NOTE: Handle attaches to two outer most holes on the
mounting plate. The middle two holes will not be used.

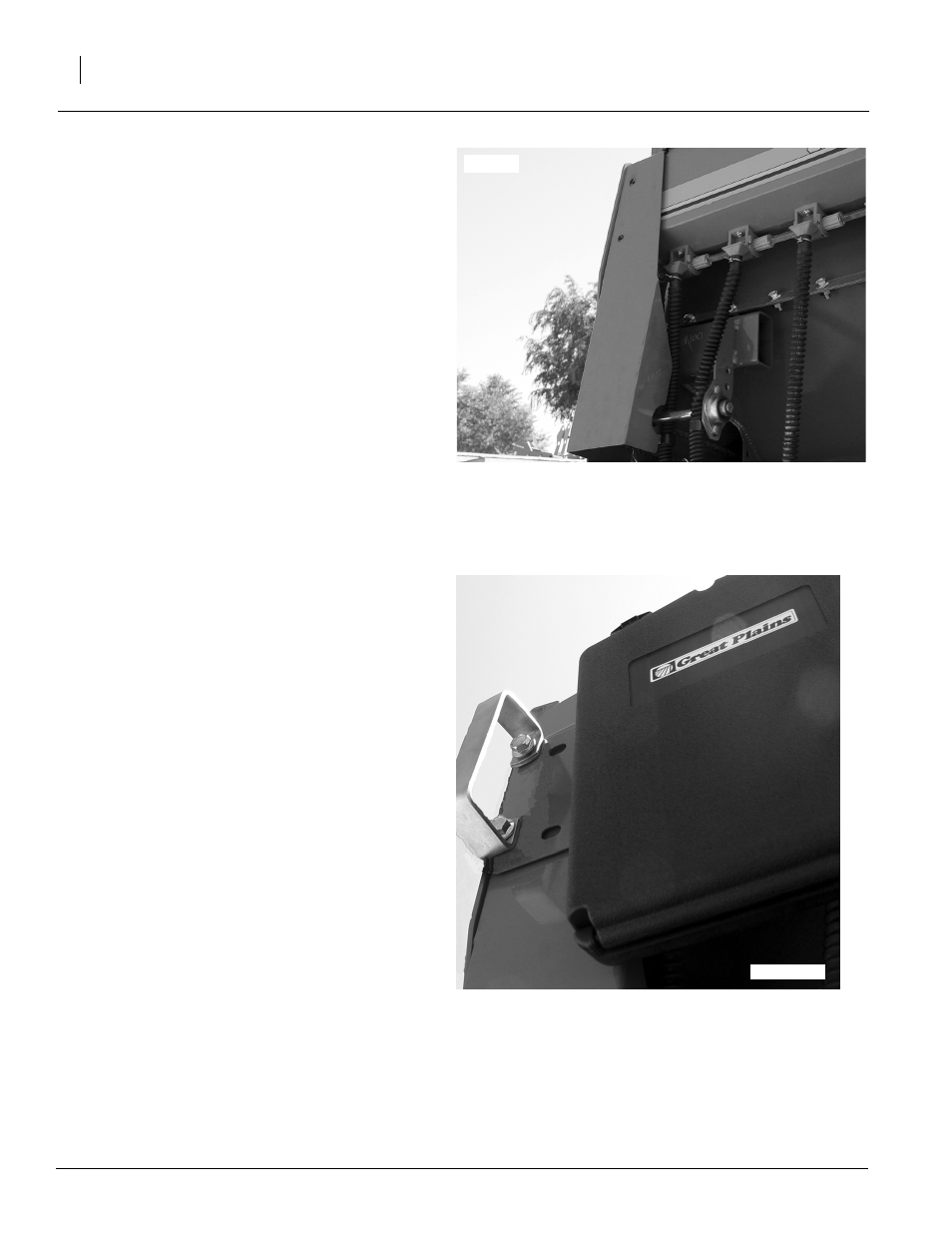

23375
Figure 46
Small Seeds Chain Guard
23376
Figure 47
Manual Pak
