13 Assembly

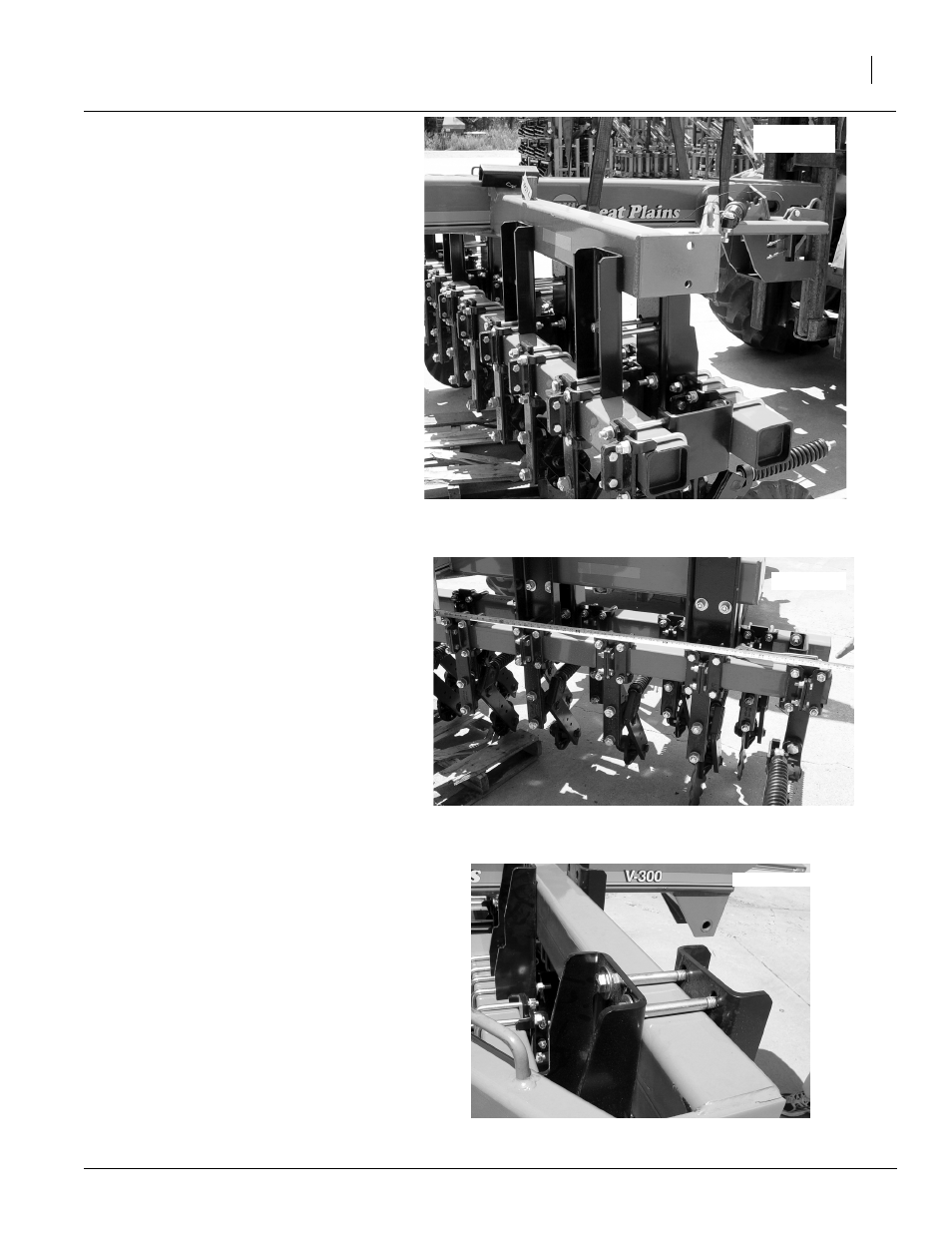

Refer to Figure 11
5. Using forklift or other implement, lift
frame over and position into coulter tool-
bar.
Refer to Figure 12
6. Before removing lift straps, measure
from center of frame to center of outer
most coulter to be sure frame is centered
on toolbar.
Refer to Figure 13
7. Secure frame to coulter toolbar using
bolts removed in step 4.
NOTE: Make sure bolts rest on top of frame.
Bolts should rest easily in bottom of slot.
8. Remove end coulters. Reattach coulters
turning them forward.
NOTE: ALL COULTERS SHOULD BE FAC-
ING SAME DIRECTION.
23306
Figure 11
Attaching Frame to Coulter Toolbar
23334
Figure 12
Centering Frame
23307
Figure 13
Securing Frame
23306
Figure 11
Attaching Frame to Coulter Toolbar
23334
23307
Figure 13
Securing Frame
