Use the User Interface available on the Liquid Crystal
Display (LCD) to setup and monitor the operation of the
setpoint control. Use the four push buttons below the LCD
(Menu, Item, Up, Down) to select settings. As the settings
are entered, record the settings in the Job Record J 162.
Menu
The menus display in the Menu Field at the left of the
LCD.
Up to 6 menus are available:
•
• VIEW
•
• ADJUST
•
• TIME
•
• SCENE
•
• SCHD (Schedule)
•
• MISC (Miscellaneous)

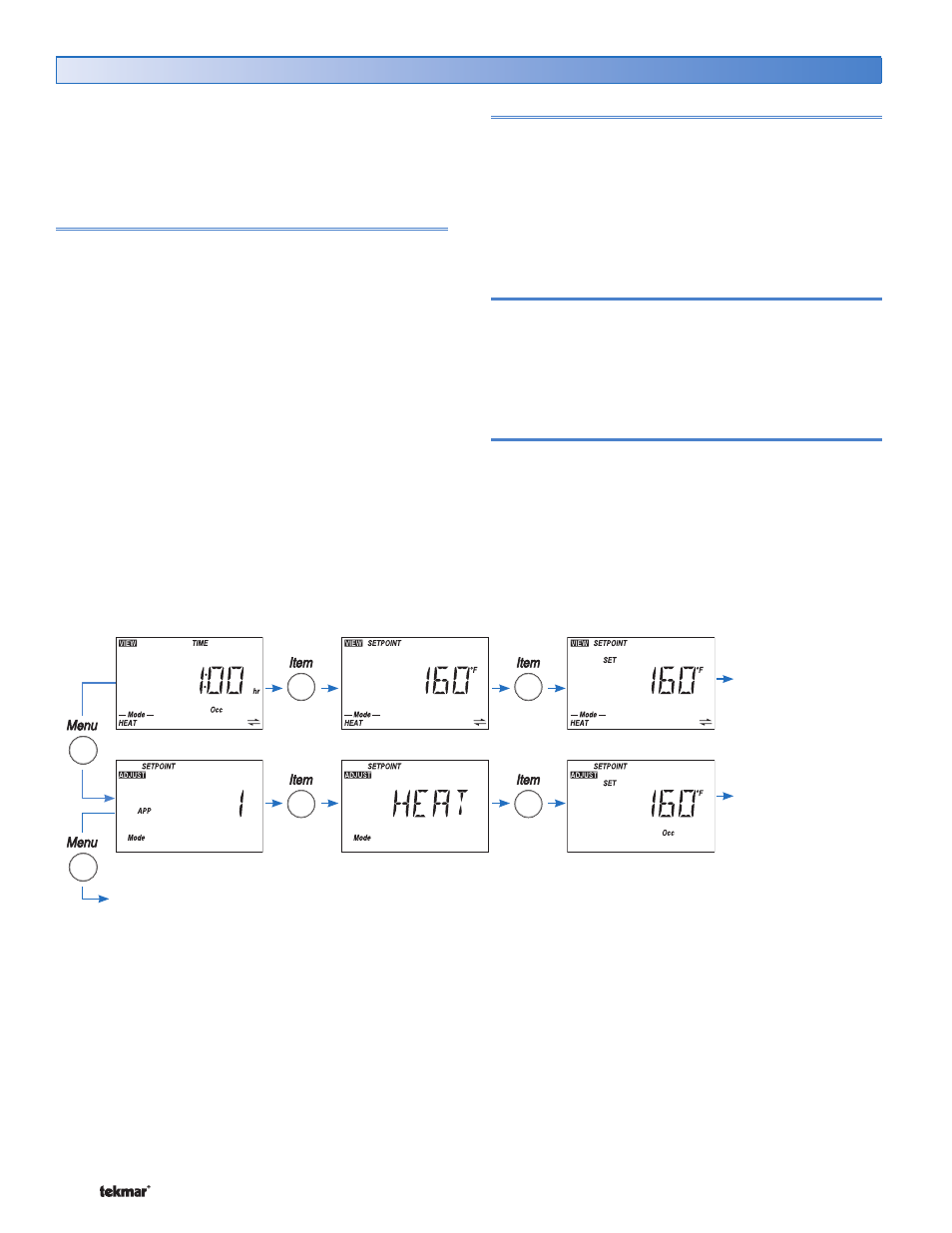

To select a menu, press and release the Menu button.
User Interface
Item
In each menu, a group of items can be selected. The
abbreviated name of the selected item displays in the Item
field of the LCD display.
•
• To view the next available item, press and release the
Item button.
•
• To view the previous item, hold down the Item button
and press and release the Up button.
Adjusting a Setting
To adjust a setting:
1. Use the Menu button to select the appropriate menu.
2. Use the Item button to select a menu item.
3. Use the Up or Down button to adjust the setting.
Default Item
To set the default item in the VIEW Menu, display item for
more than five seconds.
After navigating menus, the display reverts back to the
default item after 60 seconds of button inactivity.
The Time can also be made the default item.
Continue to next Item
Continue to next Menu
Continue to next Item
