tekmar 162 Setpoint Control Installation - Manual (Page 18)

© 2007 D 162 - 08/07 18 of 32

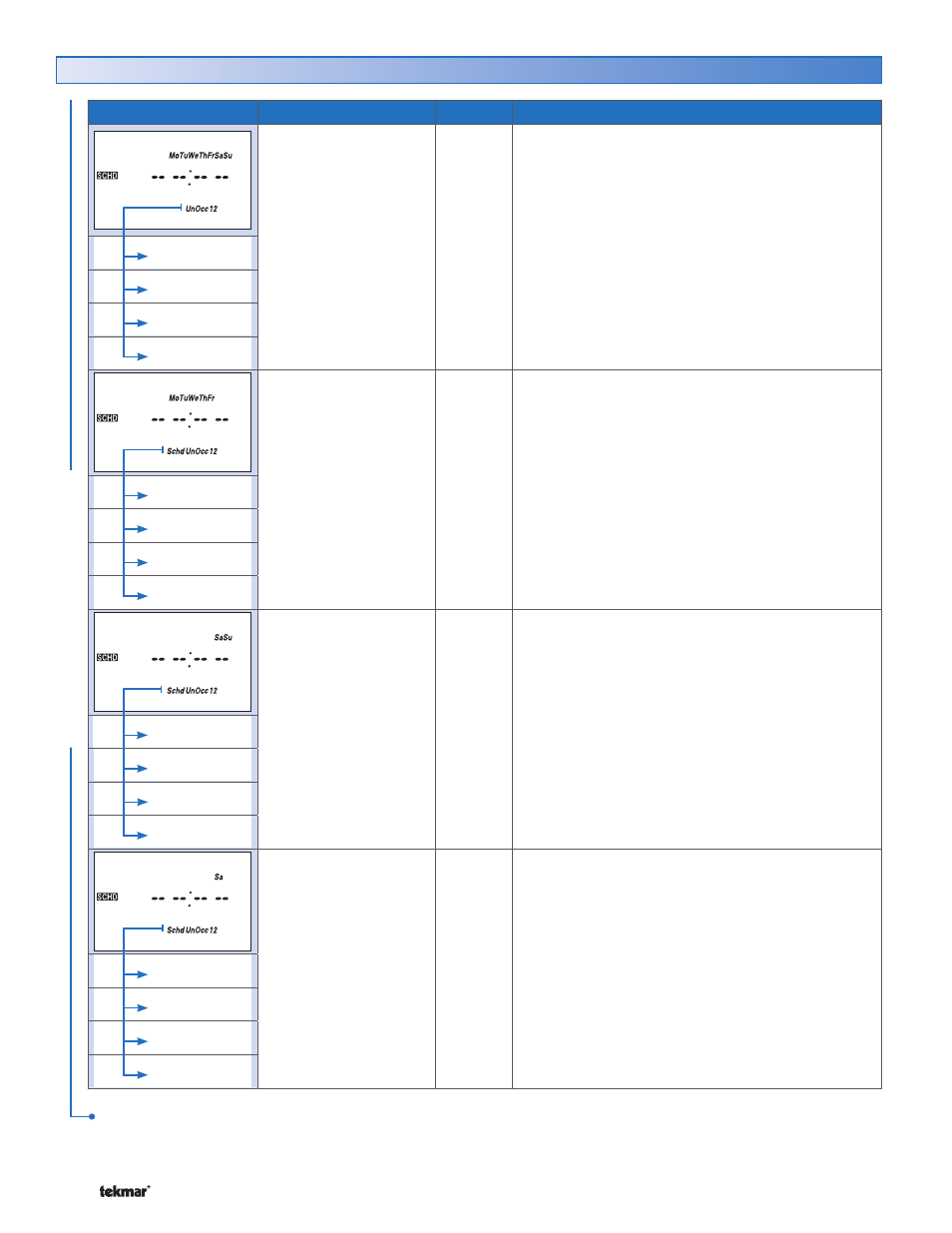

SCHD (Schedule) Menu (2 of 2)
SC
HEDULE MENU
Item Field Range Access Description
– –:– – ,
12:00 AM to 11:50 PM
or
– –:– –,
00:00 to 23:50
Default = – –:– –
USEr
InST
ADV
ALL DAYS OF THE WEEK SECTION L
Select the times for the scheduled events.
Note: This item is only available when the Heat or
Cool Schedule is set to Zone or to a Schedule Master
and the Schedule Type is set to 24 hr.
Occupied 1
Unoccupied 1
Occupied 2
Unoccupied 2
– –:– – ,
12:00 AM to 11:50 PM
or
– –:– –,
00:00 to 23:50
Default = – –:– –
USEr
InST
ADV
MONDAY THROUGH FRIDAY SECTION L
Select the time for the scheduled events.
Note: This item is only available when the Heat
or Cool Schedule is set to Zone or to a Schedule
Master and Schedule Type is set to 5-2 or 5-11.
Occupied 1
Unoccupied 1
Occupied 2
Unoccupied 2
– –:– – ,
12:00 AM to 11:50 PM
or
– –:– –,
00:00 to 23:50
Default = – –:– –
USEr
InST
ADV
SATURDAY AND SUNDAY SECTION L
Select the times for the scheduled events.
Note: This item is only available when the Heat or
Cool Schedule is set to Zone or to a Schedule Master
and the Schedule Type is set to 5-2.
Occupied 1
Unoccupied 1
Occupied 2
Unoccupied 2
– –:– – ,
12:00 AM to 11:50 PM
or
– –:– –,
00:00 to 23:50
Default = – –:– –
USEr
InST
ADV
SATURDAY TO FRIDAY SECTION L
Select the times for the scheduled events for Saturday,
Sunday, Monday, Tuesday, Wednesday, Thursday,
Friday.
Note: This item is only available when Heat or Cool
Schedule is set to Zone or to a Schedule Master and
the Schedule Type is set to 7 day.
Occupied 1
Unoccupied 1
Occupied 2
Unoccupied 2
After the last item, the control returns to the first item in the menu.
