Item Field Range Access Description
Occ, Away,
PERM 1, PERM Away 2,
PERM UnOcc 3, PERM
4, PERM 5, TMPY Occ
6, TMPY 7, TMPY 8
Default = Occ PERM 1
USEr
InST
ADV
SELECT SECTION M
Select the scene for the building.
Note: Only Occupied and Away are available when
a programmable setback schedule is not selected.
Note: This item is only available when SCENE menu
is set to On.
INF, 1 to 180 days
Default = INF
USEr
InST
ADV
AWAY HOLD SECTION M
Set the number of days for the Away 2 scene. When
the scene is selected, the tN4 system remains in that
scene for the set number of days then reverts to the
last permanent scene.
Note: This item is only available when SCENE menu
is set to On.
Schd, UnOcc,
Occ, Away
Default = Schd
InST
ADV
SET PERMANENT 1 SECTION M
Select an action for the Permanent 1 scene.
Note: This item is only available when SCENE menu
is set to On and a programmable setback schedule
is selected.
Schd, UnOcc,
Occ, Away
Default = Schd
InST
ADV
SET PERMANENT 4 SECTION M
Select an action for the Permanent 4 scene.
Note: This item is only available when SCENE menu
is set to On and a programmable setback schedule
is selected.
Schd, UnOcc,
Occ, Away
Default = Schd
InST
ADV
SET PERMANENT 5 SECTION M
Select an action for the Permanent 5 scene.
Note: This item is only available when SCENE menu
is set to On and a programmable setback schedule
is selected.
Schd, UnOcc,
Occ, Away
Default = Schd
InST
ADV
SET TEMPORARY 7 SECTION M
Select an action for the Temporary 7 scene.
Note: This item is only available when SCENE menu
is set to On and a programmable setback schedule
is selected.
Schd, UnOcc,
Occ, Away
Default = Schd
InST
ADV
SET TEMPORARY 8 SECTION M
Select an action for the Temporary 8 scene.
Note: This item is only available when SCENE menu
is set to On and a programmable setback schedule
is selected.

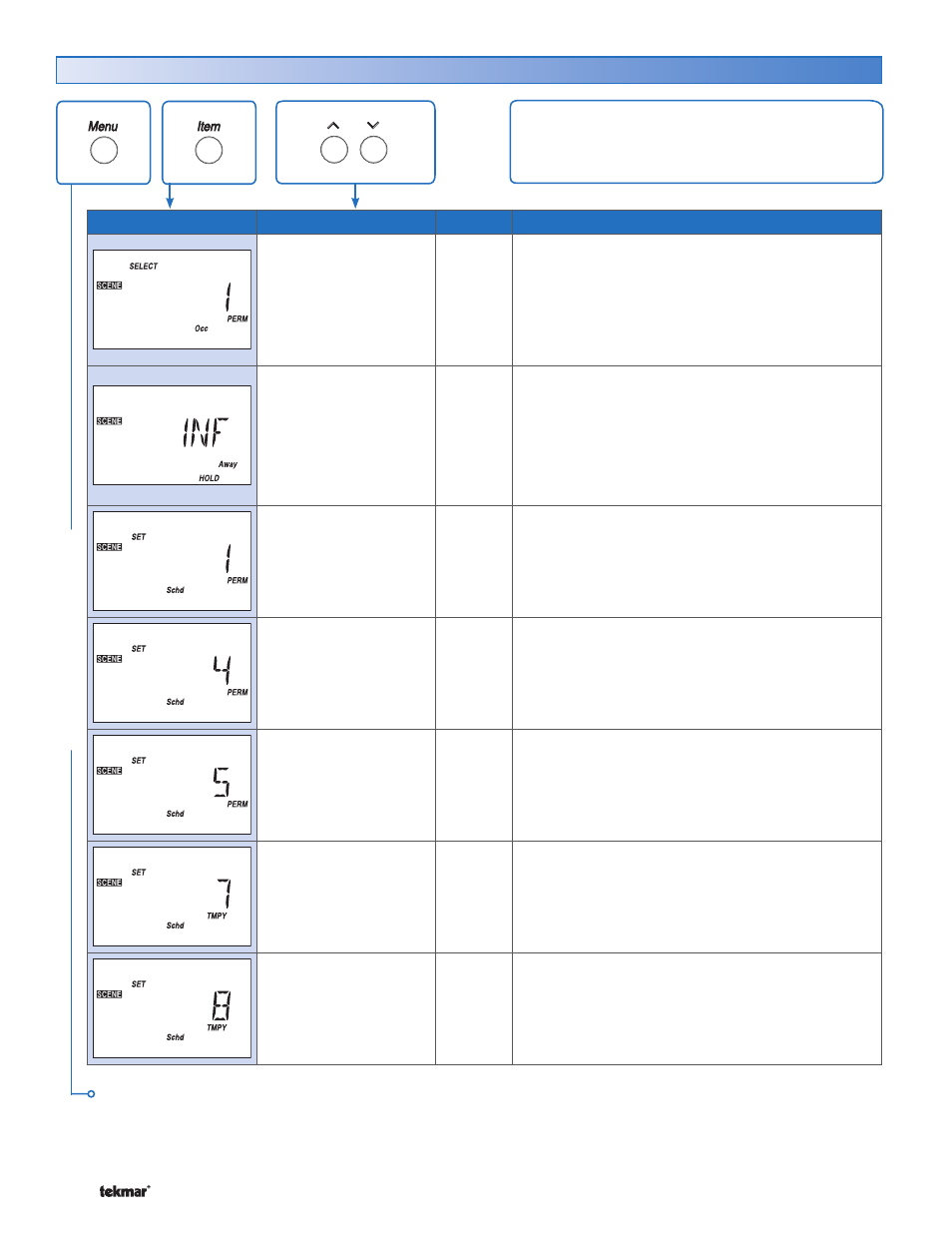

SCENE Menu (1 of 2) Note: The SCENE menu is not available when the Application Mode is set to Pool (6)
The SCENE Menu items set the current scene as
well as the scene settings.
SCENE MENU
Continued on next page.
