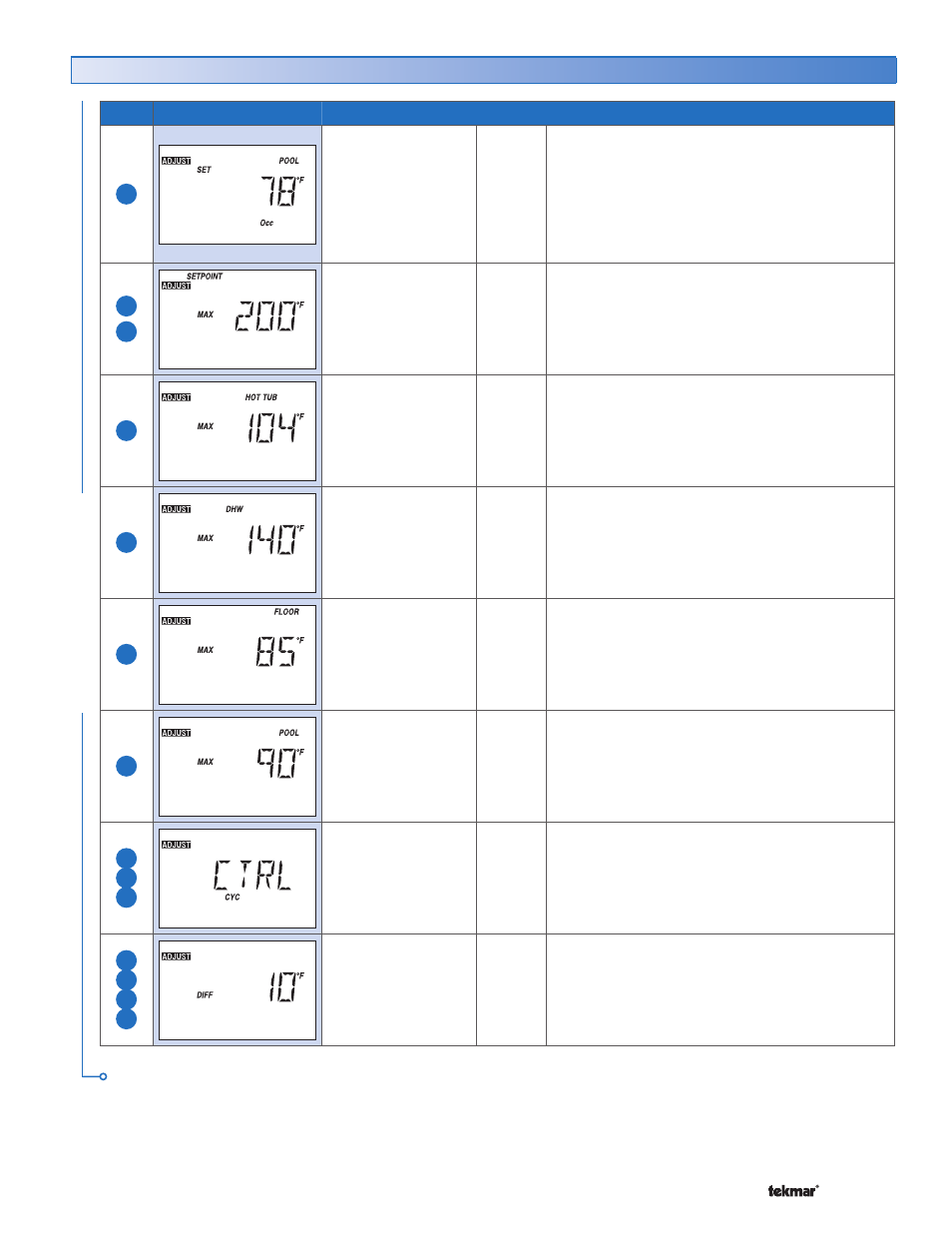

Mode

Item Field

Range

Access

Description

6

OFF, 40°F (4.5°C)

to Pool Maximum

Default = 78°F

(25.5°C)

LTD

USEr

InST

ADV

SET POOL OCCUPIED

SECTION

F

Select the pool temperature during the occupied
period.
Note:

In the Limited Access Level, the temperature

can only be adjusted by +/-3°F (1.5°C) from the
temperature setting entered prior to entering the
Limited access level.

1

4

50 to 239°F

(10.0 to 115.0°C)

Default = 200°F

(93.5°C)

ADV

SETPOINT MAXIMUM

SECTION A, D

Select the maximum setpoint temperature range
adjustment.
Note:

This item is only available when the mode

of operation is set to Heat.

2

50 to 104°F

(10.0 to 40.0°C)
Default = 104°F

(40.0°C)

ADV

HOT TUB MAXIMUM

SECTION

B

Select the maximum hot tub temperature range
adjustment.

3

50 to 200°F

(10 to 93.5°C)

Default = 140°F

(60.0°C)

ADV

DHW MAXIMUM

SECTION

C

Select the maximum indirect domestic hot water
tank temperature range adjustment.

5

50 to 110°F

(10.0 to 43.5°C)

Default = 85°F

(29.5°C)

ADV

FLOOR MAXIMUM

SECTION

E

Select the maximum floor temperature range
adjustment.

6

50 to 120°F

(10 to 49.0°C)

Default = 90°F

(32.0°C)

ADV

POOL MAXIMUM

SECTION

F

Select the maximum pool temperature range
adjustment.

4
5
6

CTRL, SYNC, 5 to

30 minutes

Default = CTRL

InST

ADV

CYCLE LENGTH

SECTION

G

Select the heating or cooling cycle length in
minutes for PWM applications.

1
2
3
4

1 to 40°F

(0.5 to 22.0°C)
Default = 10°F

(5.5°C)

InST

ADV

DIFFERENTIAL
Select the differential to cycle on and off around
the setpoint temperature.

ADJUST Menu (3 of 6)

ADJUS

T MENU

Continued on next page.
