U = Upper Port/Cold Water Inlet
B = Bottom Port/Hot Water Inlet
C = Combination Port/Mixed Water
Outlet

TWO TEMPERATURE HOT

WATER SYSTM

JACKET WATER COOLING

APPLCIATION

Powers #11 Water Mix Regulators are typically used for automatic
control of domestic or process water tempering. The self-actuated
regulator can easily be installed in any convenient location. Among
its applications are: two-temperature hot water systems, jacket
water cooling of engines or compressors, and many other industri-
al processes. Below are two typical applications.

The three-way regulator can also be used for bypass control, in lieu
of a diverting valve, but it must be piped as a mixing valve, with two
inlets and one outlet.

WARNING:

In domestic water system, a safety shutdown
device should be installed in conjunction with a #11
regulator. Failure of the #11 thermal system will
result in a constant rise in temperature (or constant
high temperature ) of the fluid which you are trying
to control.

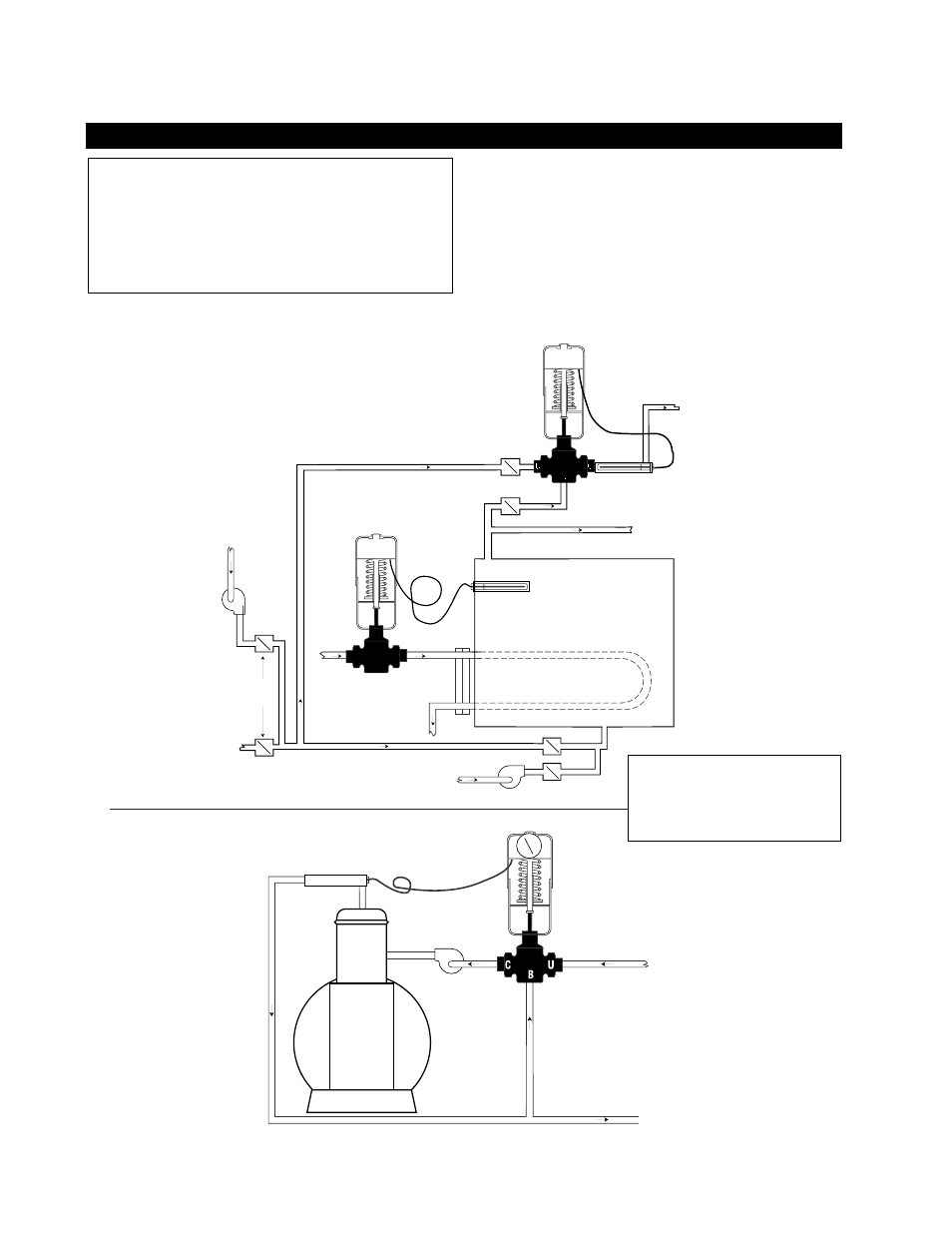

APPLICATIONS

#11 Indicating
Regulator WM

(Water Mix)

Engine

or

Compressor

Pump

Cool Water from

Heat Exchanger

Hot Water to

Heat Exchanger

Bulb in Well

By-Pass

#11 Regulator DS

Double Seat

DIRECT ACTING

#11 Regulator WM

Water Mix

Bulb in Well

Bulb in Well

Steam

Supply

Pump

Pump

Check

Valves

Cold Water Supply

HTHW Return

WATER HEATER

Tempered

Return

HTHW

Tempered

Water

To Condensate Return
