INSTALLATION
INSTRUCTIONS
1210 Instructions 6-27-14.docx Page 7 of 12

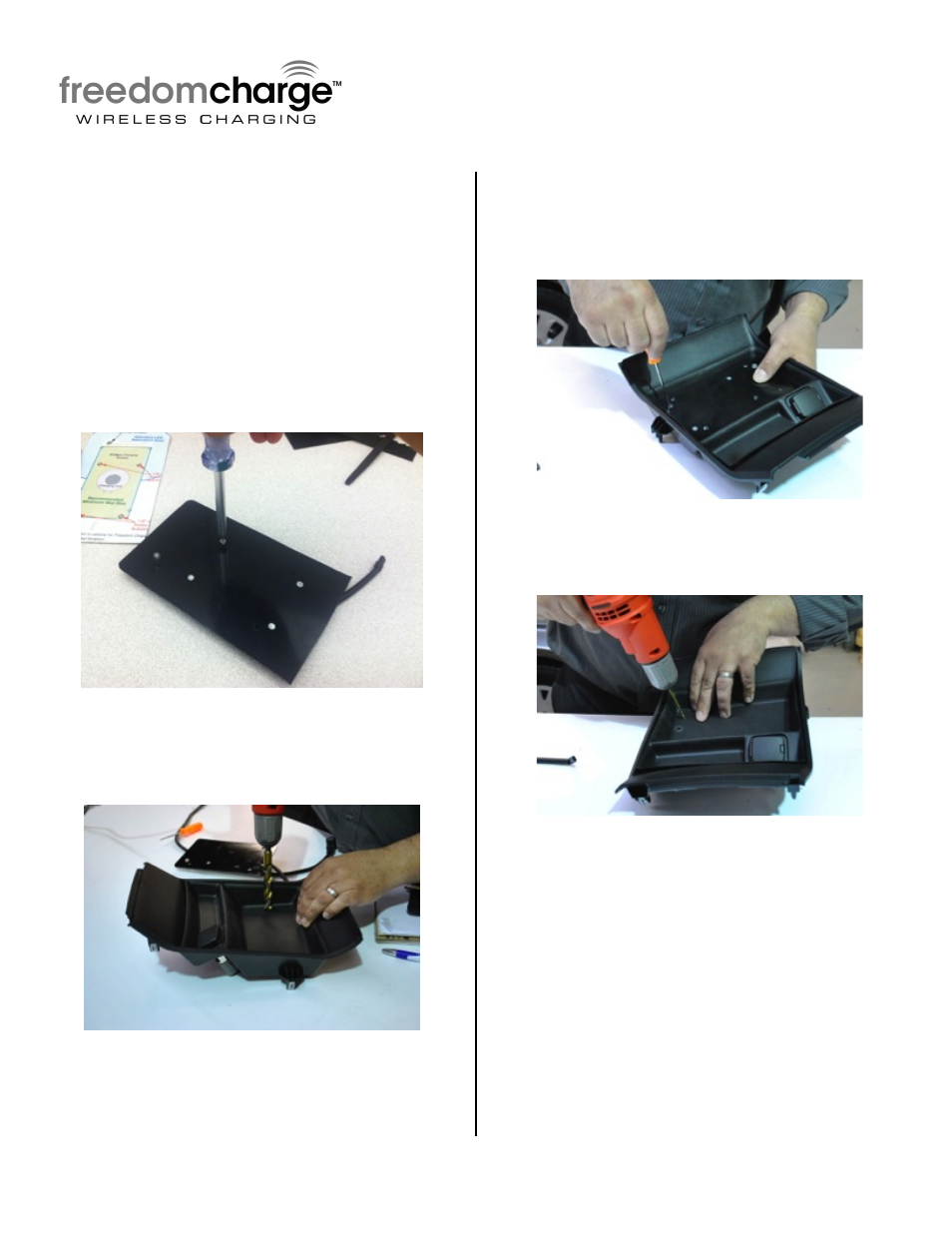

Section 3: Drop-In Mounting
(from below)
Follow the next step if you can reach the
underside of your mounting location
Step 15: Assembly of Substrate to Freedom
Charge module for Drop-In Mounting from
above. Insert (2) ¼” Torx Flat head screws
through substrate into Freedom Charge
Module. This will leave two open chamfered
holes.
Step 16: Place new assembly into vehicle
tray or bin to mark ½” hole location required
for power connector to pass through. Drill
1/2” hole in marked location.
Step 17: Route Plug of Charging Module
through 1/2" hole and place module in bin.
Mark the hole locations by inserting center
punch or scribe tool through the 2 chamfered
holes and firmly marking.
Step 18: Remove Charging Module and Drill
3/18" holes at the previous 2 marked
locations.
