INSTALLATION
INSTRUCTIONS
1210 Instructions 6-27-14.docx Page 2 of 12
Section 1: The Three Types of Mounting Page 2-3
Section 2: Template, Substrate, and Mat Trimming Pages 4-6
Section 3: Example of Drop In Mounting from below Pages 7-8
Section 4: Example of Drop In Mounting from above Pages 9-10
Section 5: Example of Under Mounting Page 11
Section 6: Power Harness wiring Page 12
Section 7: Test System and Consumer Label Page 12
Section 1: The Three Types of Mounting
Freedom Charge™ has been designed with three unique mounting possiblilities to fit
almost any application. Please review sections below to determine the best solution for
your particualer application. Note: Due to high heat and sun exposure the top of dash is
not a recommended location for mounting Freedom Charge.

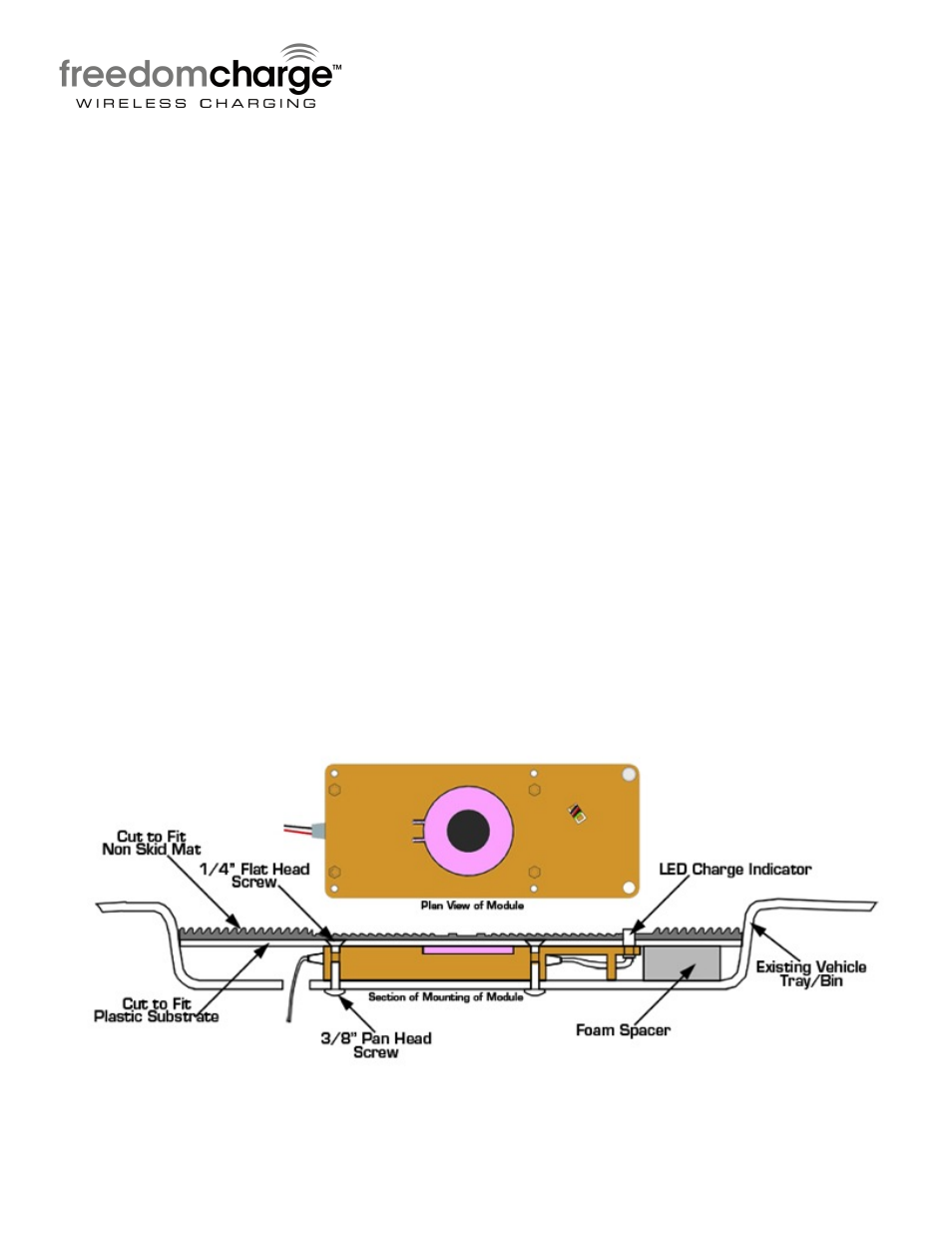

Drop-In Mounting (from below)
