INSTALLATION
INSTRUCTIONS
1210 Instructions 6-27-14.docx Page 12 of 12

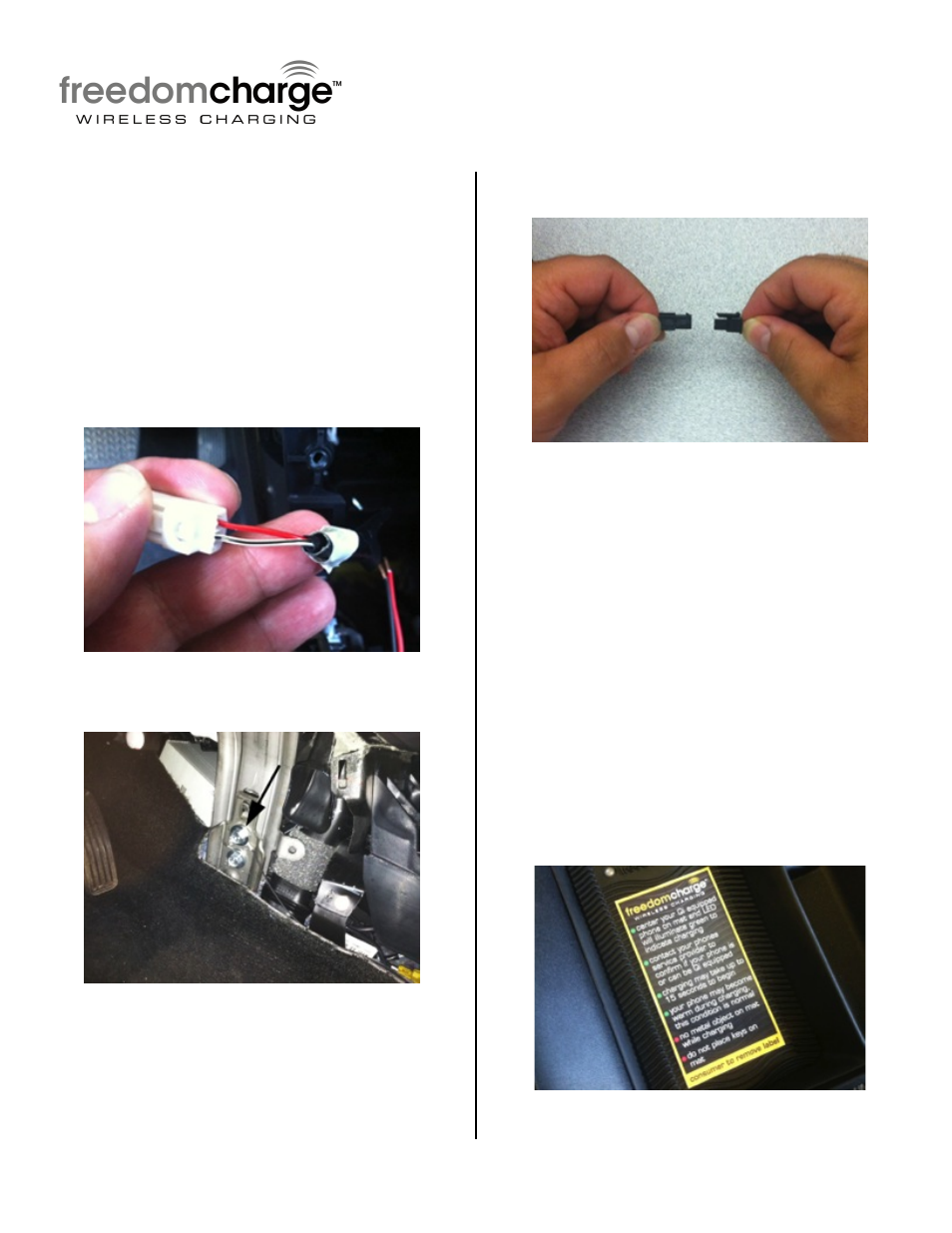

Section 6: Power Harness
Wiring (from above)
Freedom Charge is powered by ignition
control 12v power source. Use a Multi-Meter
of test light or manual to determine your
vehicle power location.
Step 38: Splice Red wire of Power Harness to
the Red (12v ignition) wire of the vehicle.
RECOMMENDED: Solder wires and cover with Heat
Shrink Tubing.
Step 39: Connect Power Harness grounding
eyelet to vehicle ground.
Step 40: Connect Power Harness to Charging
Module.
Section 7: Test System and
Consumer Label
Step 41: Test system. LED light will
illuminate Blue once accessories are on.
Once Qi equipped device is placed on
Freedom Charge LED will illuminate Green
and charging begins. *Please note on some
devices syncing may take up to 15 seconds. Coil
locations vary on various devices; move device on
mat until LED illuminates green.
Step 42: Reassemble vehicle taking care not
to bind the harness wiring when reinstalling
trim.
Step 43: Place removable consumer product
label on center of mat.
