INSTALLATION
INSTRUCTIONS
1210 Instructions 6-27-14.docx Page 6 of 12

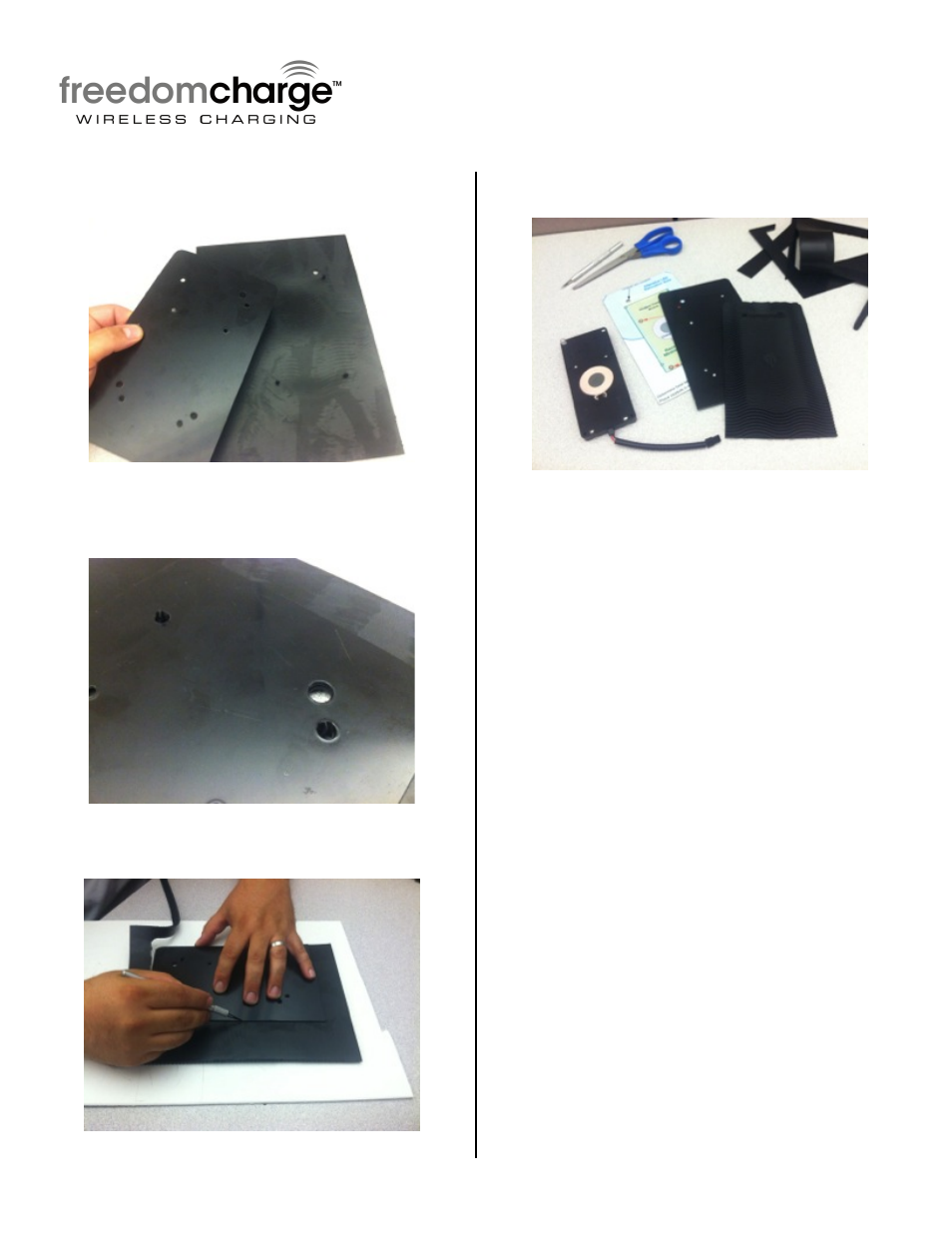

Step 11: Flip Freedom Charge mat and newly
trimmed substrate upside down.
Step 12: Align LED holes and insert mats
crosshair locators through substrate hole to
insure proper alignment.
Step 13: Using an X-Acto knife carefully trim
mat using substrate as guide.
Step 14: Substrate and Mat now trimmed and
ready for assembly and mounting.
