INSTALLATION
INSTRUCTIONS
1210 Instructions 6-27-14.docx Page 5 of 12

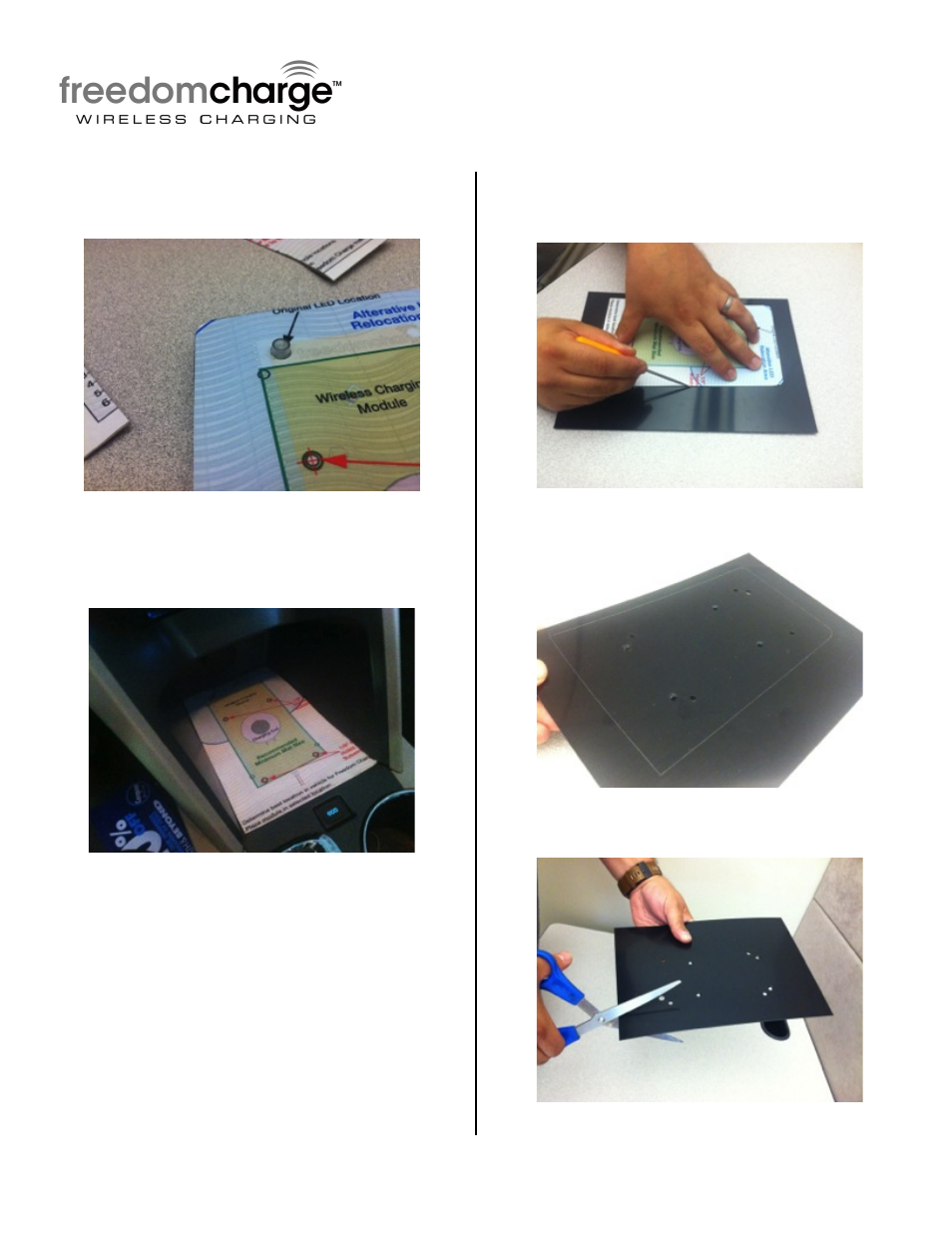

Step 6: With X-Acto knife cut out LED hole
location. Lay template on Freedom Charge
module with LED sticking up through hole.
Step 7: With trimmed template placed on top
of Freedom Charge module check for correct
fit in vehicle. Make any trim adjustment(s)
needed to template to achieve perfect fit.
Step 8: Place template on plastic substrate
aligning LED and mounting holes.
Step 9: Scribe outline.
Step 10: Substrate can be trimmed with
scissors. Be careful to cut right on the
scribed line. Again check fit in vehicle.
