INSTALLATION
INSTRUCTIONS
1210 Instructions 6-27-14.docx Page 10 of 12

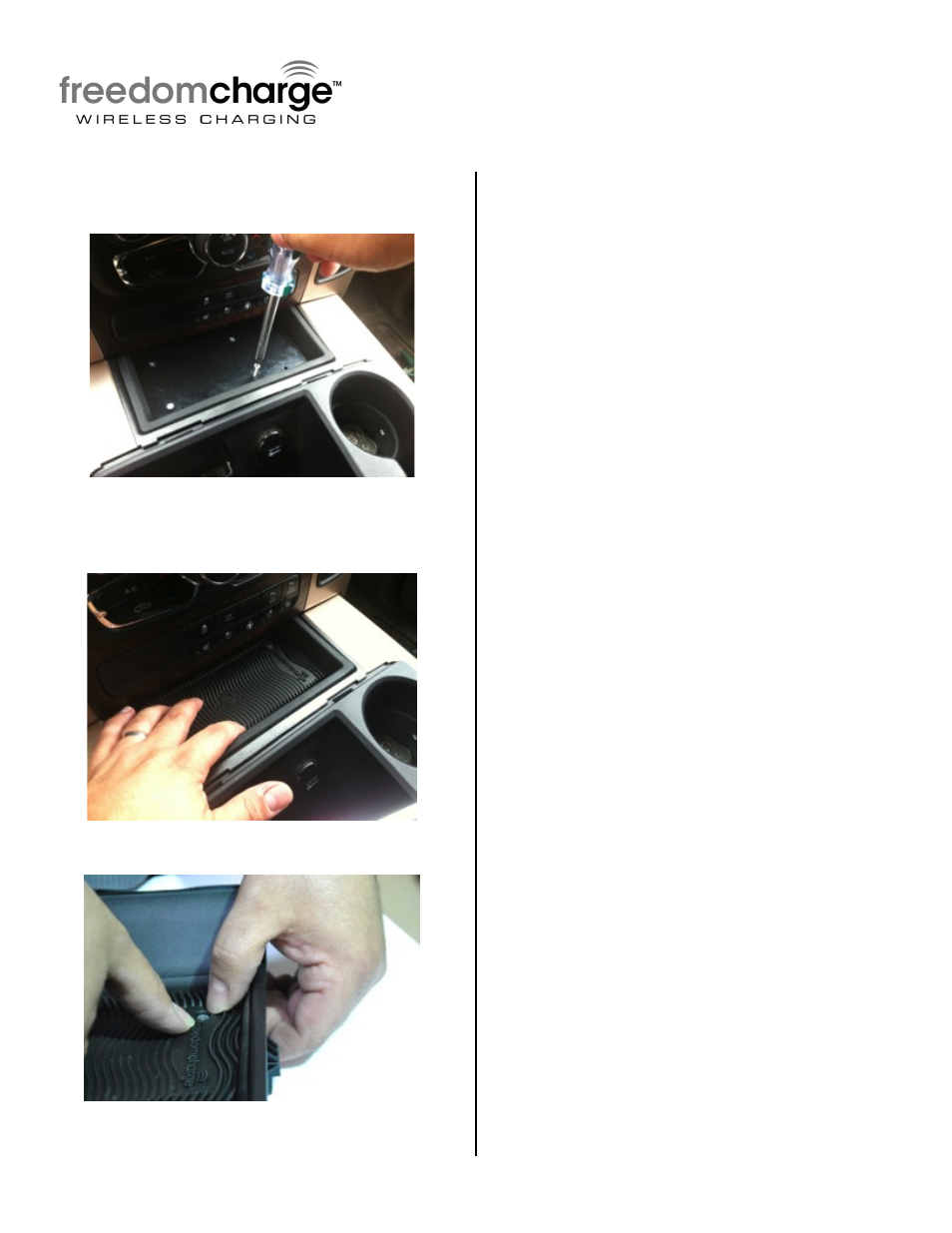

Step 28: Insert the (2) 1” Flat Head T-10
Torx Screws through Charging Module and
into tray/bin. Repeat steps 26 through 28.
Step 29: Install Non-Slip Freedom Charge
Mat to Wireless Charging Module. Place the 4
locator pins in corresponding holes.
Step 30: Firmly press Mat around LED.
Step 31: Proceed to Power Harness wiring
(Section 5)
