Trusted
TM
Module T8442
Issue 8 Apr 10
PD-T8442
24
3. Application
3.1. System Configuration
This section details speed monitor operating parameters that can be configured through the system
configuration tool.
Figure 5 shows the Speed monitor configuration template in the system configuration tool. The tool
allows configuration of all user adjustable operating parameters required by the speed monitor. The
configuration parameters become part of the resulting SYSTEM.INI file which is then transferred to the
Trusted
TM
TMR processors. The configuration parameters are passed from the TMR processors to the
speed monitor module during initialisation.

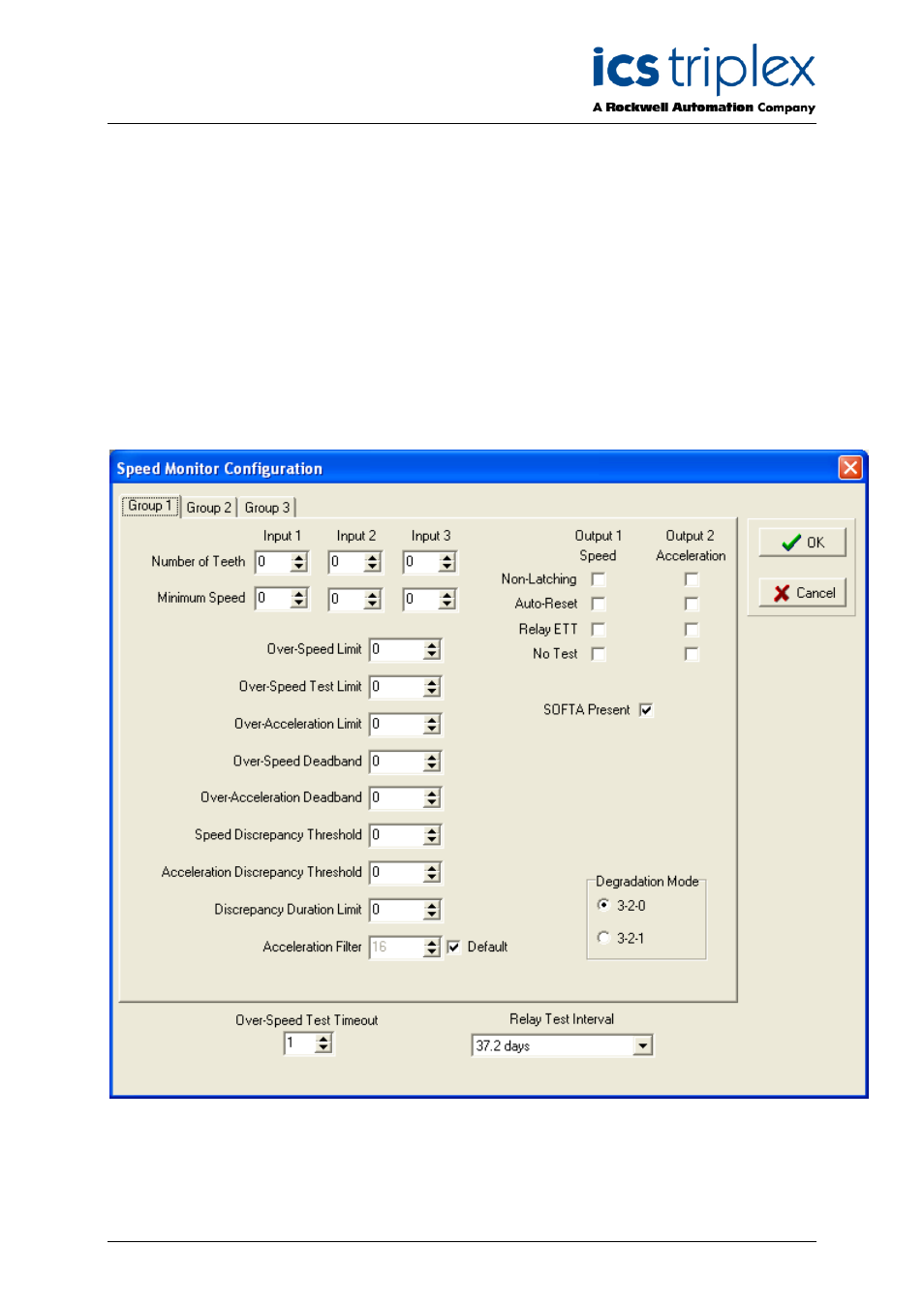

Figure 5 Group 1 Configuration Tab
