Publication DNET-UM072C-EN-P - July 2004
3-12 Make Cable Connections

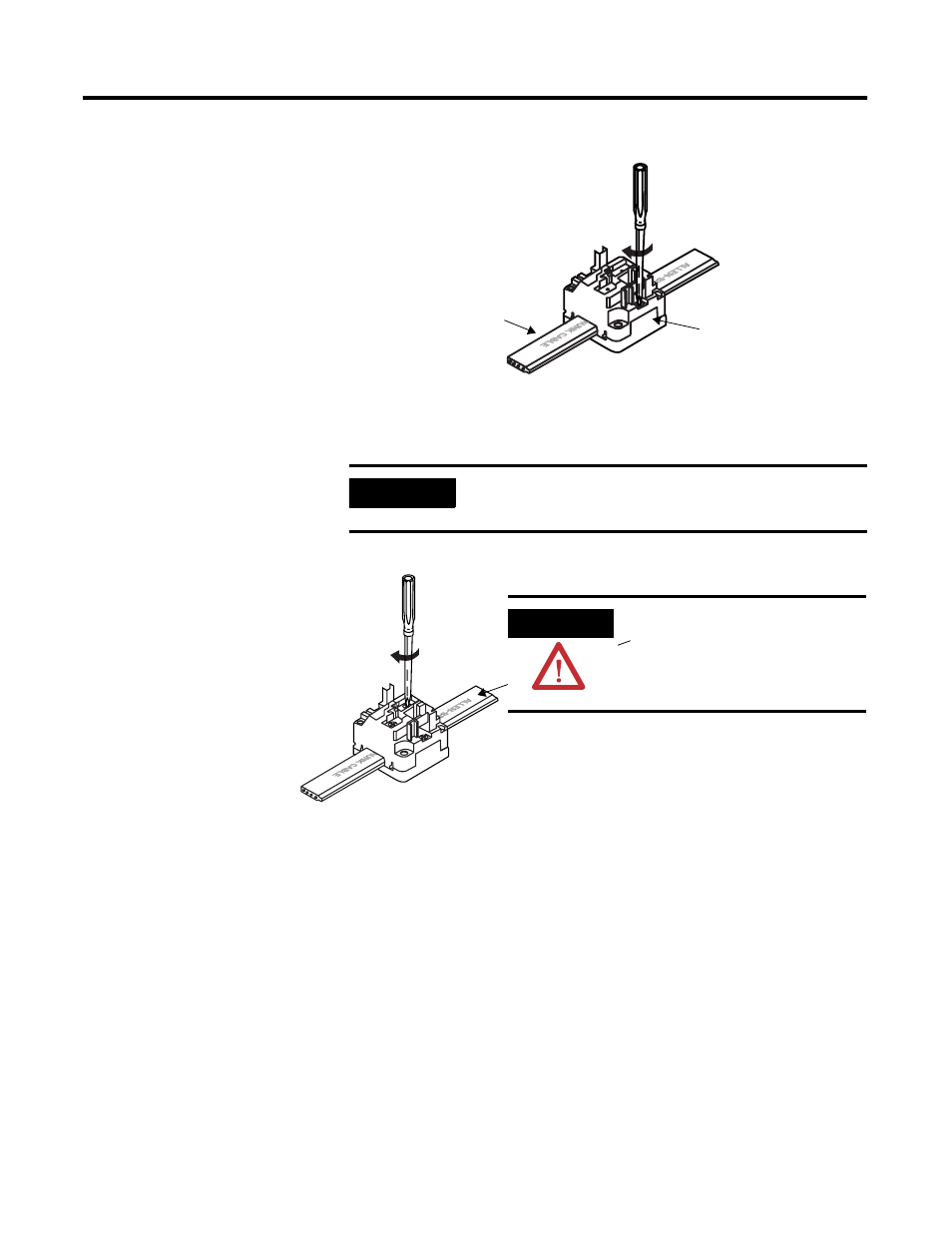

6. Drive the IDC contacts into the cable by tightening down the two
screws in the center of the base assembly. .
7. Follow these guidelines for installing the connectors:
• We recommend you only install the connectors at temperatures of
0°C to 75°C.
• Make sure the cable is free of debris or scratches before attaching the
connector to ensure a proper seal.
• The recommended distance between mounts is 3-5 m (10-16 ft). To
mount flat cable, use flat cable mount 1485A-FCM.
• When running cable into an enclosure, use flat cable gland
1485A-CAD.
• Connectors are designed for single use and cannot be reused. Once
installed, connectors should not be removed from the trunkline.
IMPORTANT
Take care to avoid stripping the screws. Ample torque
should be 5.56 N (15 in-lbs).
30476-M
Tighten screws by the
latch first
Check the cable position prior
to tightening the screws.
30477-M
The module should not be removed
after connection is made. Determine
the exact placement of the
connector before engaging the IDC
contacts.
ATTENTION
Once the IDC contacts are driven into
the cable, the module should not be
removed.
Connectors are single-use only and
cannot be removed or re-used.
