Publication DNET-UM072C-EN-P - July 2004
Identify Cable System Components 2-3

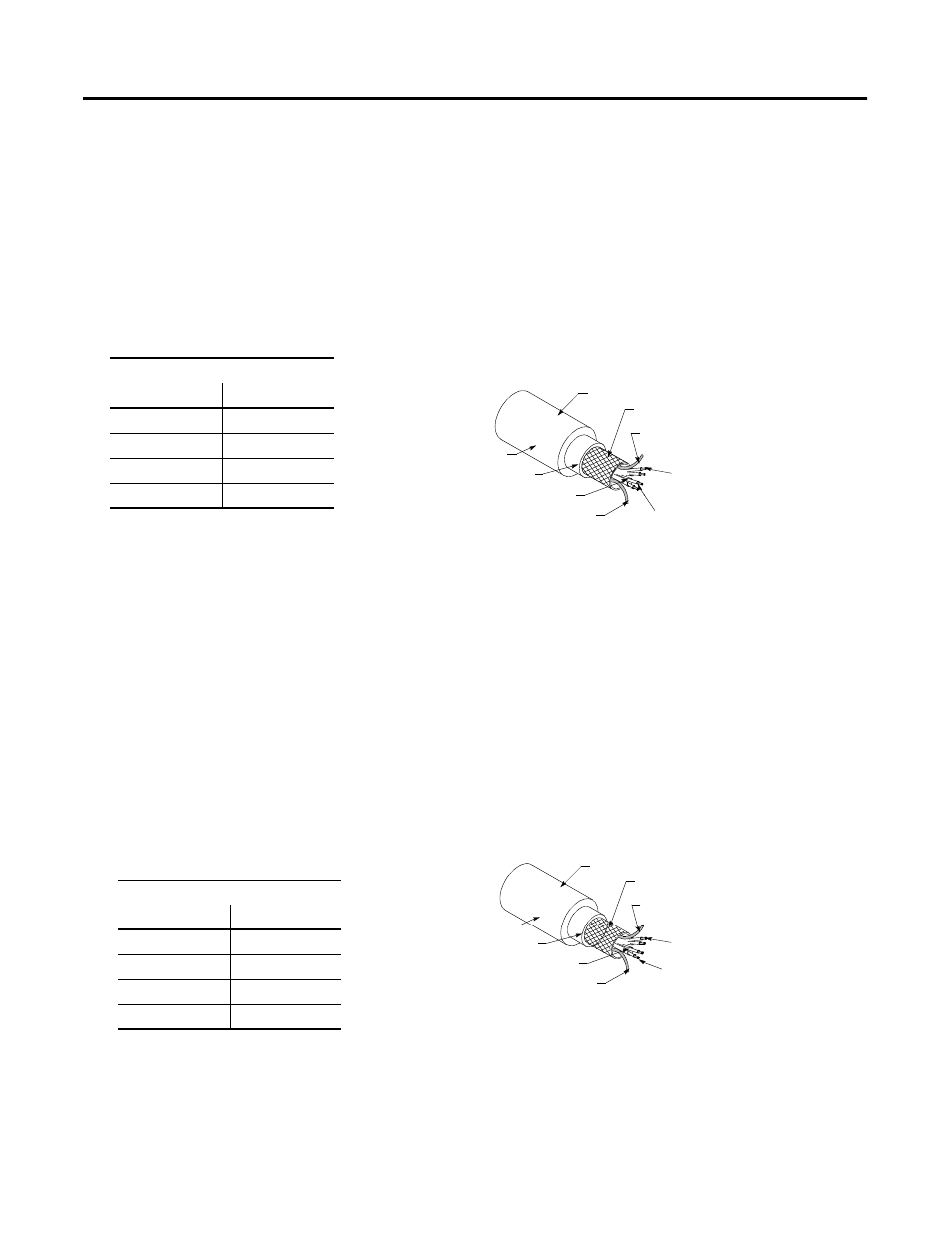

About Thick Cable Thick cable, with an outside diameter of 12.2 mm (0.48 in.), is generally
used as the trunk line on the DeviceNet network. Thick cable can be used
for trunk lines and drop lines. High-flex thick cable offers greater flexibility
than traditional thick cable.
About Thin Cable Thin cable, with an outside diameter of 6.9 mm (0.27 in.), connects devices
to the DeviceNet trunk line via taps. Thin cable can be used for trunk lines
and drop lines.
gray jacket
overall mylar tape
aluminum/polyester shield
over each pair
18 AWG 19 x 30 tinned copper-
stranded drain wire
12.2 mm (0.48 in.) outside diameter
65% coverage tinned copper-
braid shield
polypropylene fillers
blue & white data-pair
foamed insulation (18AWG
19 x 30 tinned & stranded
copper conductors)
red & black dc power pair (15 AWG 19
x 28 tinned & stranded copper
conductors)
Additional configurations are available.
Refer to the On-machine Connectivity
catalog, publication M115-CA001.
Class 2 Thick Cable
Spool Size Catalog Number
50 m (164 ft) 1485C-P1A50
150 m (492 ft) 1485C-P1A150
300 m (984 ft) 1485C-P1A300
500 m (1640 ft) 1485C-P1A500
41834
yellow chemical
resistant jacket
overall mylar tape
aluminum/polyester shield over each pair
22 AWG 19 x 34 tinned copper-stranded
drain wire
6.9 mm (0.27in) outside diameter
65% coverage tinned copper braid shield
blue & white data-pair foamed PE/PE
insulation (24 AWG 19 x 36 tinned &
stranded copper conductors)
polypropylene fillers
red & black dc power pair (22 AWG 19 x 34
tinned & stranded copper conductors)
41834
Additional configurations are available.
Refer to the On-machine Connectivity
catalog, publication M115-CA001.
Class 2 Thin Cable (Yellow CPE)
Spool Size Catalog Number
50 m (164 ft) 1485C-P1C50
150 m (492 ft) 1485C-P1C150
300 m (984 ft) 1485C-P1C300
600 m (1968 ft) 1485C-P1C600
