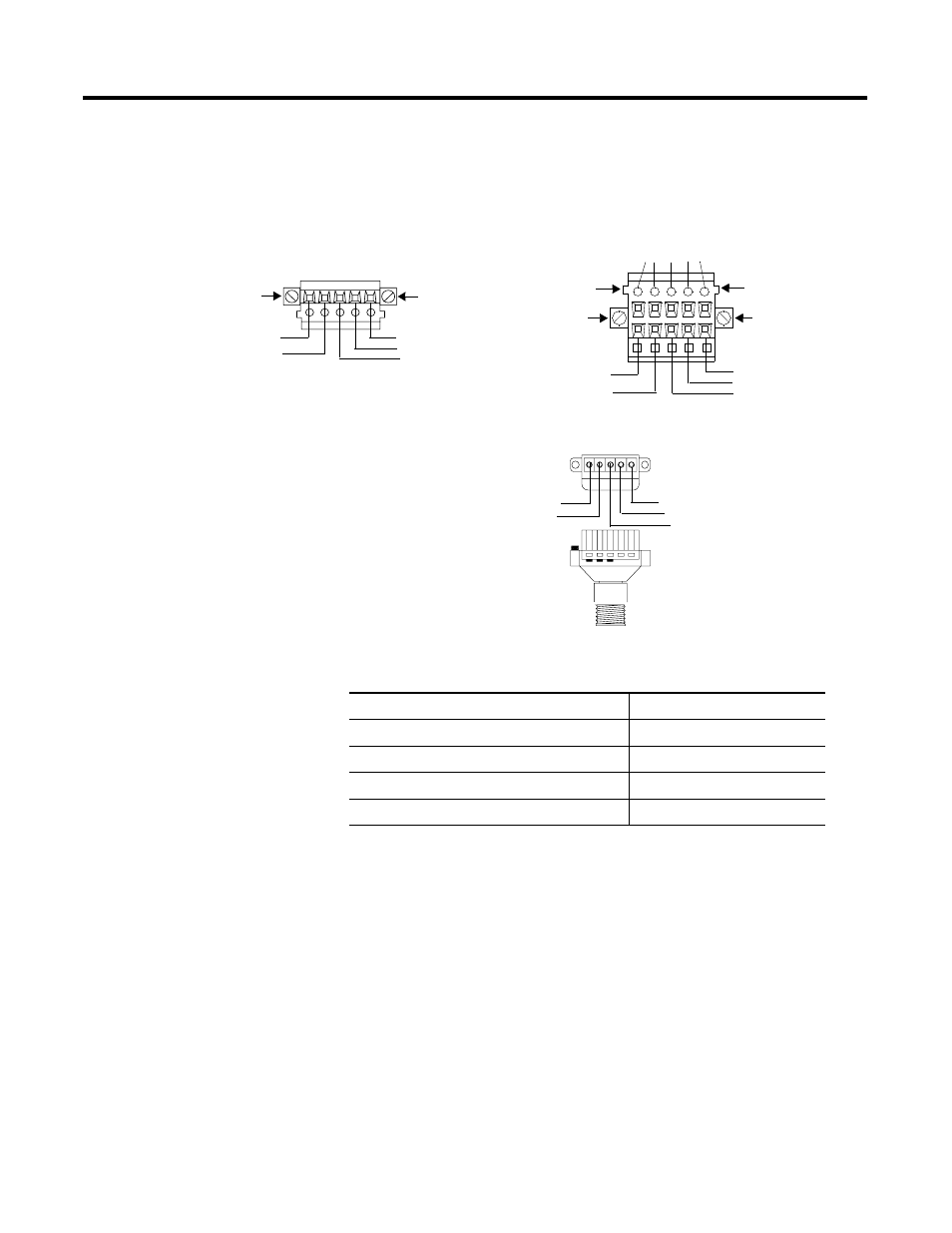

Plug-in field-installable (open) connectors
Most open-style devices ship with an open-style connector included. These
connectors are also shipped in packages of 10.
jack screw
jack screw
mechanical key
10-pin linear plug (open)
mechanical key
5-pin linear plug (open)
jack screw
jack screw
Blue
Shield or Bare
White
Red
Black
41707
41708
Blue
Shield or Bare
White
Red
Black
probe holes
Description
Catalog number
5-pin linear plug (open; with jack screws)
1799-DNETSCON
5-pin linear plug (open; without jack screws)
1799-DNETCON
10-pin linear plug (open)
1787-PLUG1OR
5-pin linear to micro male adapter
1799-DNC5MMS
5-pin linear to micro adapter
Shield or Bare
Red
Black
Blue
White
