Identify cable system components, Chapter – Rockwell Automation DeviceNet Media Design Installation Guide User Manual
Page 37
1
Publication DNET-UM072C-EN-P - July 2004
Chapter
2
Identify Cable System Components
Use this chapter to identify and become familiar with the basic DeviceNet
cable system components.
Integrated Architecture Builder (IAB)
software can be used to lay out a
DeviceNet System and generate a BOM.
Download IAB from
www.ab.com/logix/iab/.
sealed device
sealed device
terminator
T-Port tap
power
supply
thick cable
DevicePort tap
(8 port)
terminator
T-Port tap
thin cable
DeviceBox
tap (4 port)
thick cable
open-style tap
sealed device
PowerTap
tap
20479-M

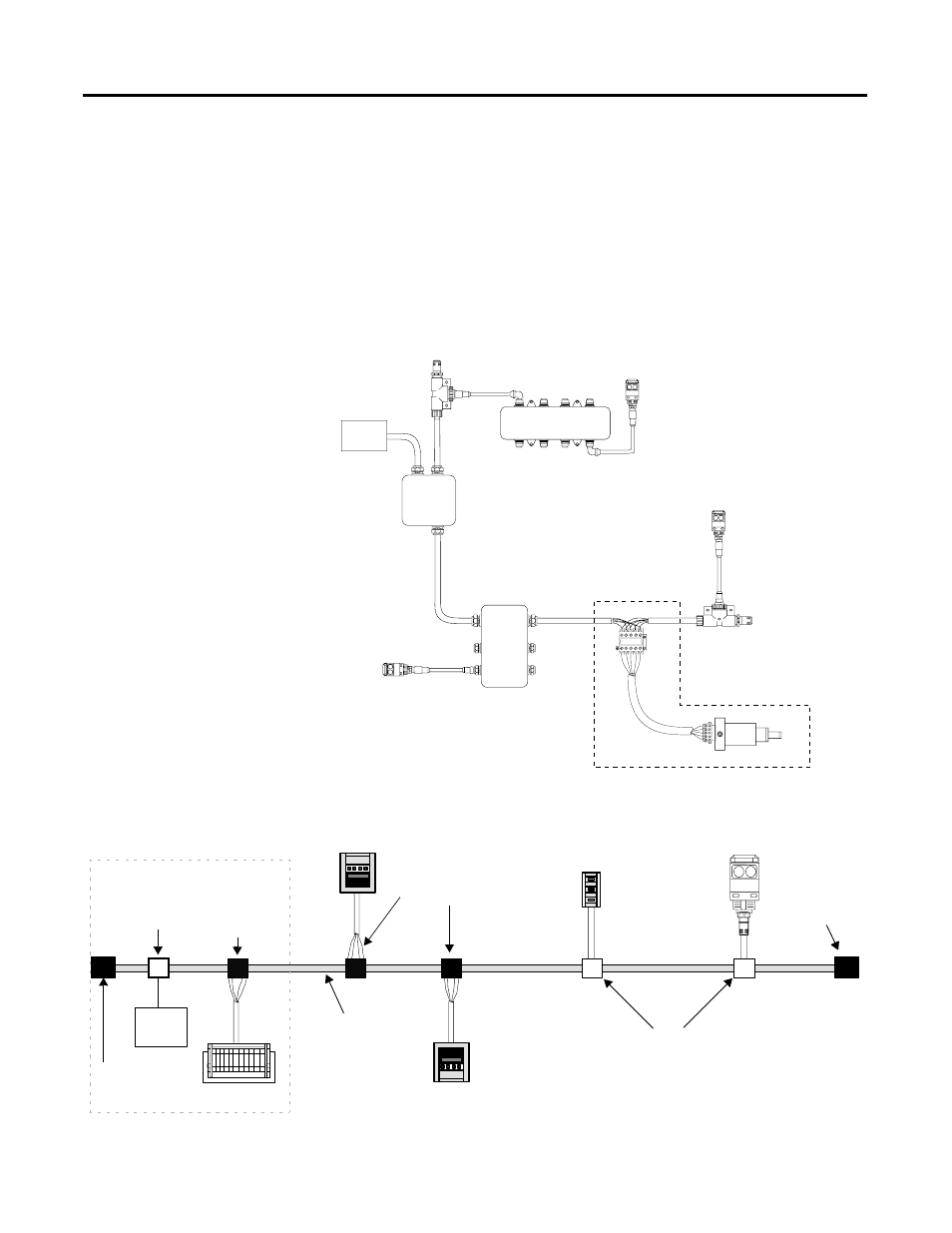

Round (Thick and Thin) Cable Network
KwikLink Flat Media Network
open-style
modules
micro connector
module
power
supply
open-style
terminator
PLC
enclosure
flat trunk
cable
micro connector
modules
terminator
40898
enclosure
thick cable
open-style device
