5–34 Configuring PanelView Operator Terminals
Publication 2711E-821 – January 1998

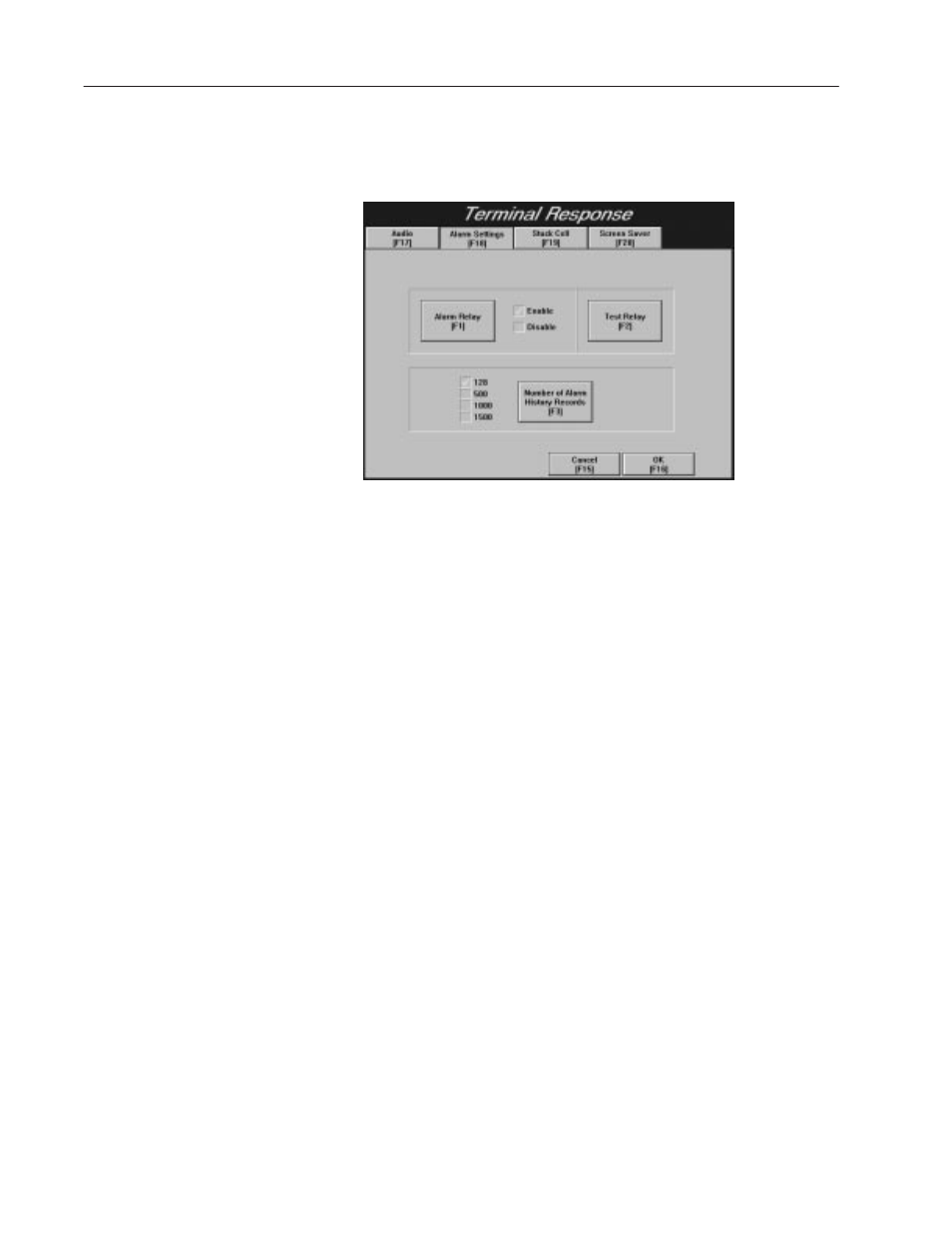

For enhanced PanelView 1200 (Series F and above), and PanelView
1200e, and 1400e terminals, the following Alarm Settings screen is
displayed.
To enable or disable alarm relay:
" Press the Alarm Relay button or corresponding function key to
enable or disable the relay. The default setting is Enable.
To test the alarm relay:
1. Connect a contact device such as a bell or alarm to the terminal’s
alarm relay. See Appendix A, B, and C for relay specifications.
2. Press the Test Relay button or corresponding function key. See
Figures 2.1, 3.1, and 4.1 for the location of the alarm relay on the
1000e, 1200e, and 1400e terminals.
3. Press the test button (On) to energize the relay, and release it
(Off) to de-energize it. The Test Relay is inactive if the Alarm
Relay is disabled.
To set the number of alarm history records to be displayed:
" Press the Number of Alarm History Records button to select
either 128, 500, 1000, or 1500. The default setting is 128 alarm
history records.
