Setting up Your Operator Display Station 9
Publication 6188-UM001A-EN-P
Setting up Your Setting up Your Setting up Your Setting up Your Operator Display Operator Display Operator Display Operator Display
Station Station Station Station
This section describes how to setting up 6188.
When installing the Operator Display Station, it is important to consider
environmental factors that could affect performance as well as possible
effects from equipment operation on personnel and nearby equipment.

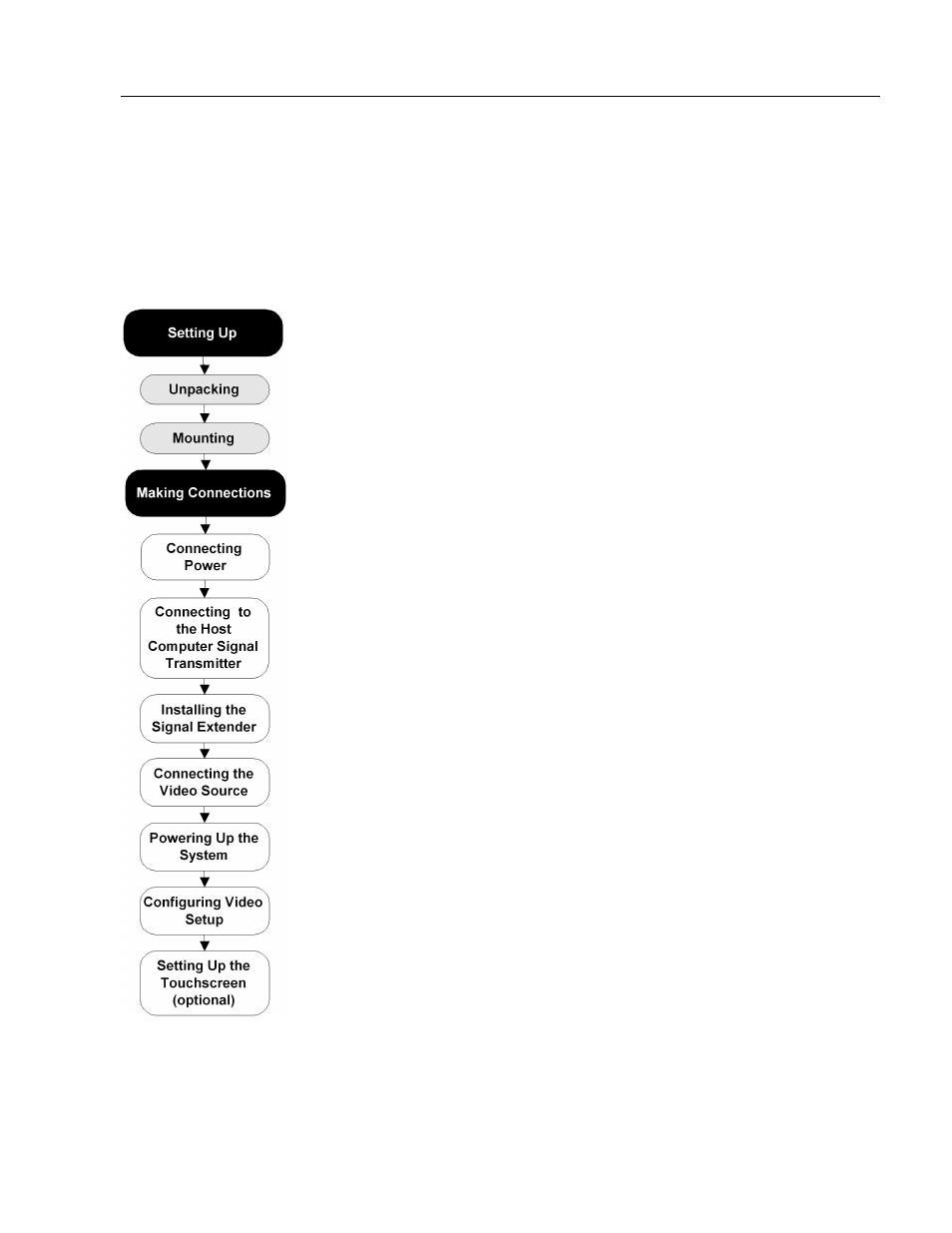

The figure on the left displays the general process to install, connect, and
adjust your monitor.
Installation Guidelines
Following these guidelines will help ensure that the monitor provides
safe and reliable service.
•
Ensure that sufficient power is available from a single phase AC
outlet at the site.
•
Ensure that sufficient space is available for air circulation necessary
for cooling.
•
Ensure that the ambient air temperature will not exceed the
specified maximum temperature.
Important: This Operator Display Station is designed to operate at a
range of extremes, however it is not good design practice to
continuously operate it at the highest end of the specified
temperature range.
While the product will operate at its highest specified
temperature, the overall life span of any electronic device is
shortened when it operates at its highest rated temperature.
•
Leave the Operator Display Station’s rear door closed at all times
during operation. The sealed enclosure affords protection against
dust, dirt, and liquids in the environment.
•
The Federal Communications Commission has prepared a pamphlet
that addresses the problem of radio frequency interference to radio
and television reception, which should be consulted in case of
problems with such interference. This publication, “How to Identify
and Resolve Radio/TV Interference Problems” (Stock #004-000-
00345-4) may be obtained from the US Government Printing Office,
Washington, DC 20402.
Before you Begin
