Appendix A: Technical Specifications 31
Publication 6188-UM001A-EN-P
For applications where floor space is limited, consider the overhead or
wall mount arm options of the RAC6188.
15.1 Display 18.1 Display
Overhead Specifications
The overhead mount option allows you to mount the RAC6188 above
the operator in a fixed position. This option gives you 30
°
tilt
adjustment.
Wall Mount Arm Specifications
Each wall mount arm for the RAC6188 provides 360
°
swivel, 30
°
tilt,
and full side-to-side positioning. Vertical positioning options depend on
the enclosure material:
•
The NEMA 4X stainless steel arm has a fixed vertical position.
•
The NEMA 4 aluminum construction provides 12 in. vertical height
adjustment.

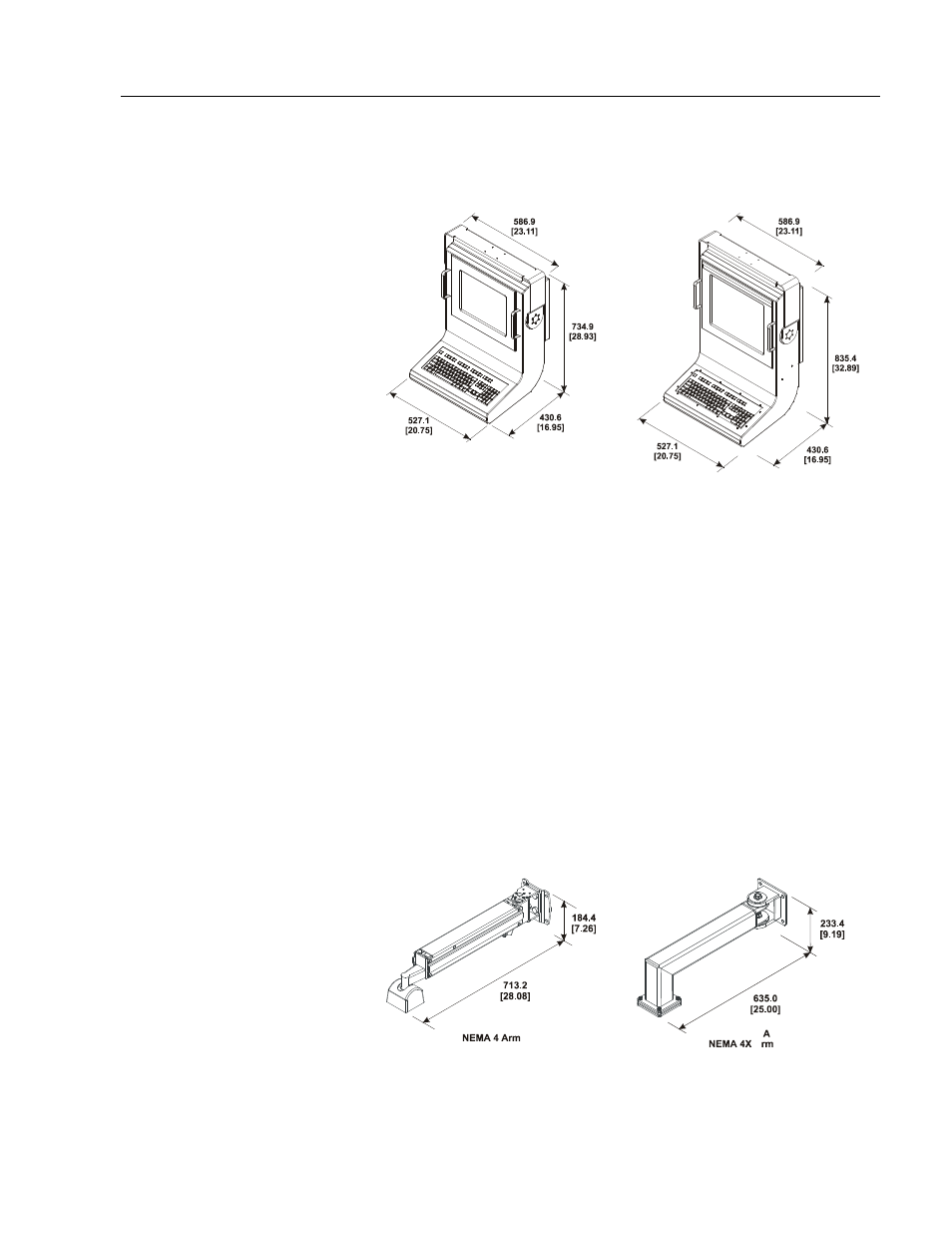

NEMA 4 NEMA 4X
Wall Mount Arm and
Overhead Mounting
