Push Buttons

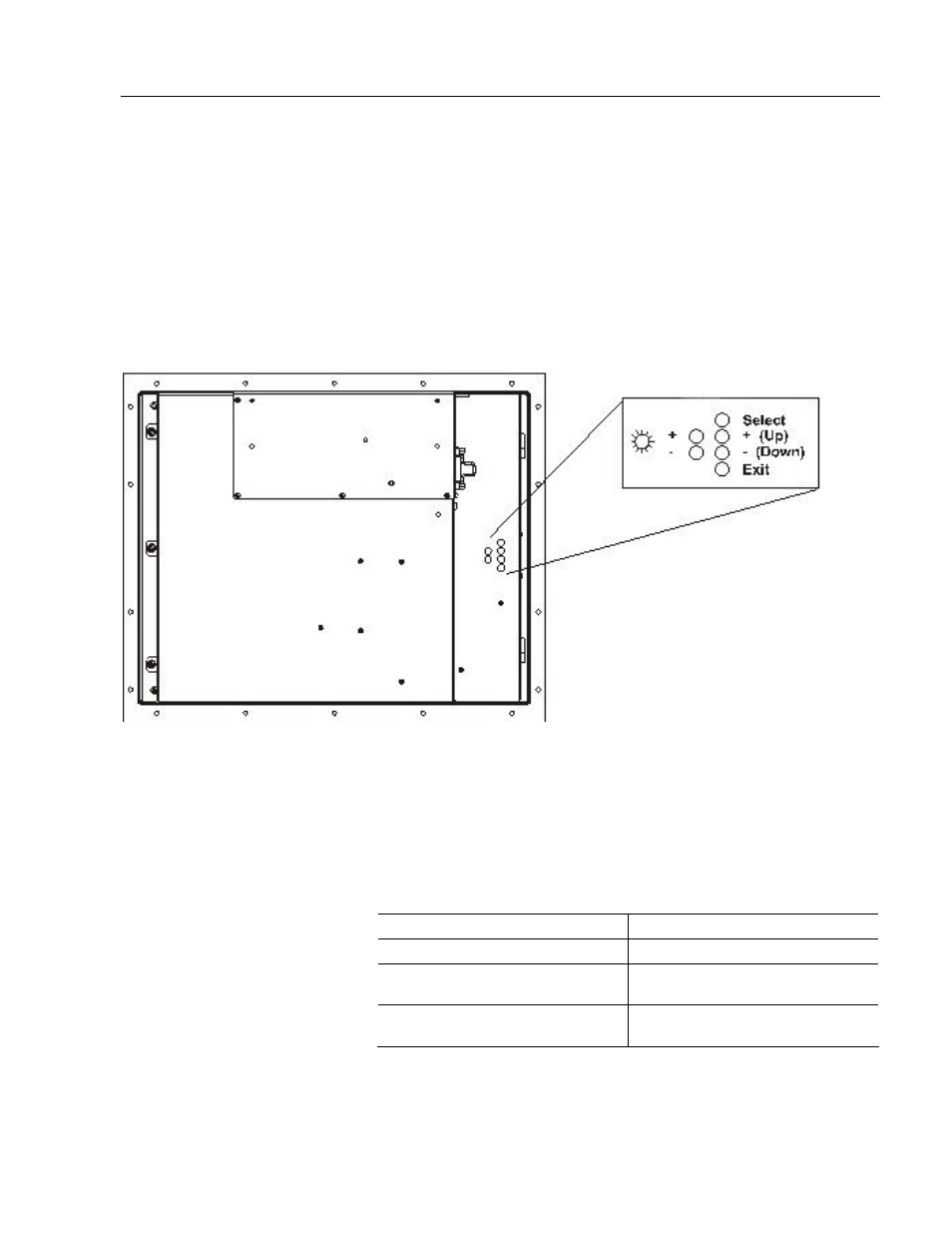

The Operator Display Station provides push buttons on the rear of the
monitor to adjust the following settings:
•
Brightness
•
Contrast
•
Position Information
By using the Flat Panel Monitor Adjustment Utility and push buttons on
the rear of the monitor you can adjust these settings. The push buttons
control the monitor’s On-screen display (OSD).
The following table provides a summary to using the pushbuttons:
Table C
Pushbutton Summary
The Select Pushbutton… The Up and Down Pushbuttons…
Starts the OSD. Highlight the option you want.
Selects a highlighted option. Adjust the selected option higher or
lower.
Saves the value and returns to the
previous menu.
