30 6188 Operator Display Station
Publication 6188-UM001A-EN-P

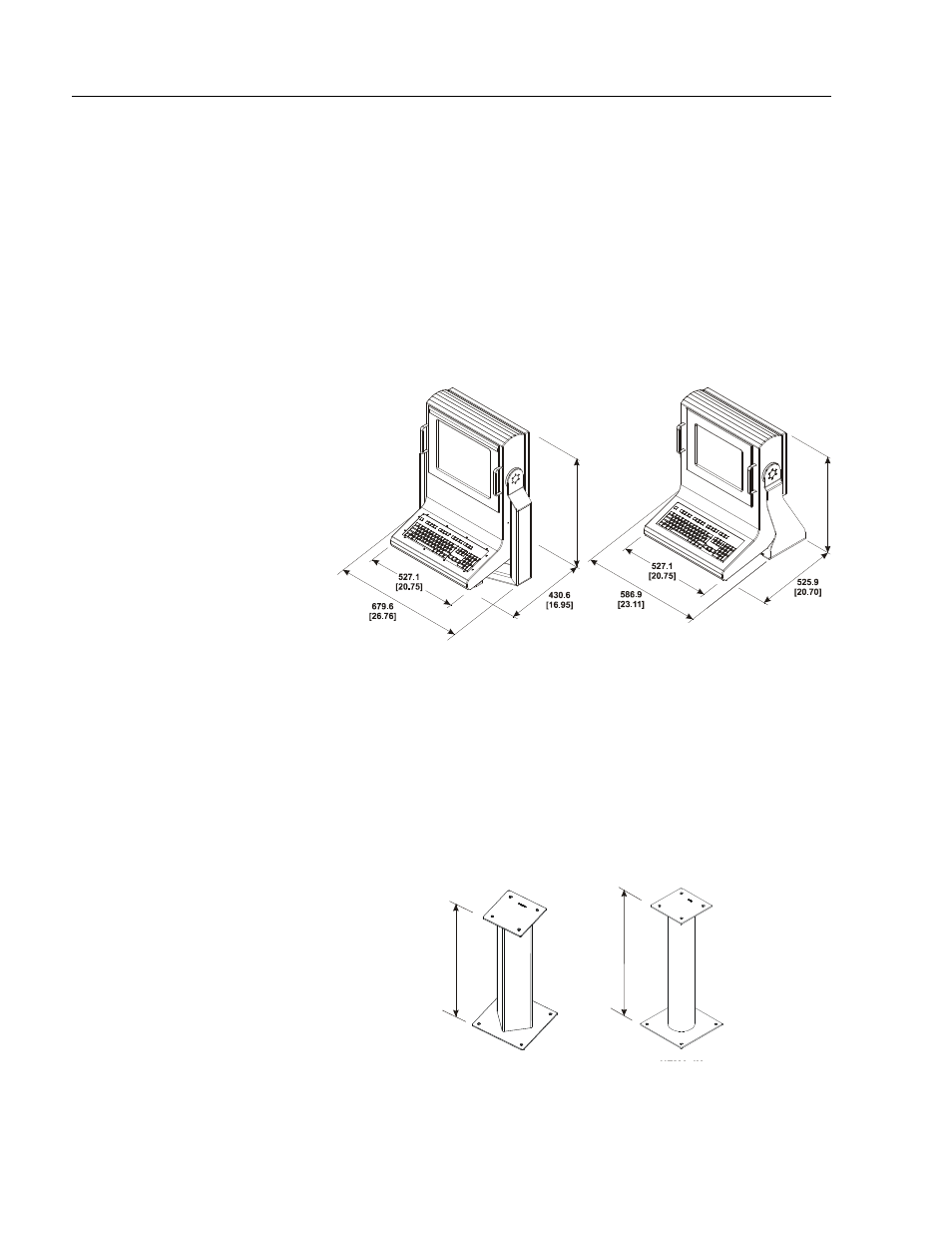

This section shows the dimensions. Use this information to ensure you
have adequate space to install the unit and route cables. Units are in mm
[inches].
Table Top and Floor Pedestal Mounting
For applications where you need the operator station in a fixed position,
Rockwell Automation offers the RAC6188 with a table top or floor
pedestal mounting option. Both of these mounting options provide side-
to-side swivel (180
°
) and tilt (30
°
) for optimum viewing.
15.1 Display 18.1 Display
Pedestal Specifications
RAC6188 pedestals are available in NEMA 4 and NEMA 4X stainless
steel. The height of the pedestal varies according to the size of the flat
panel display selected
•
15.1 Display 749.3 [29.50]
•
18.1 Display 952.5 [37.50]
NEMA 4 NEMA 4X
Dimensions
