Rockwell Automation Publication 6176M-UM001D-EN-P - December 2012 33
Display Configuration Chapter 3
Tool Menu

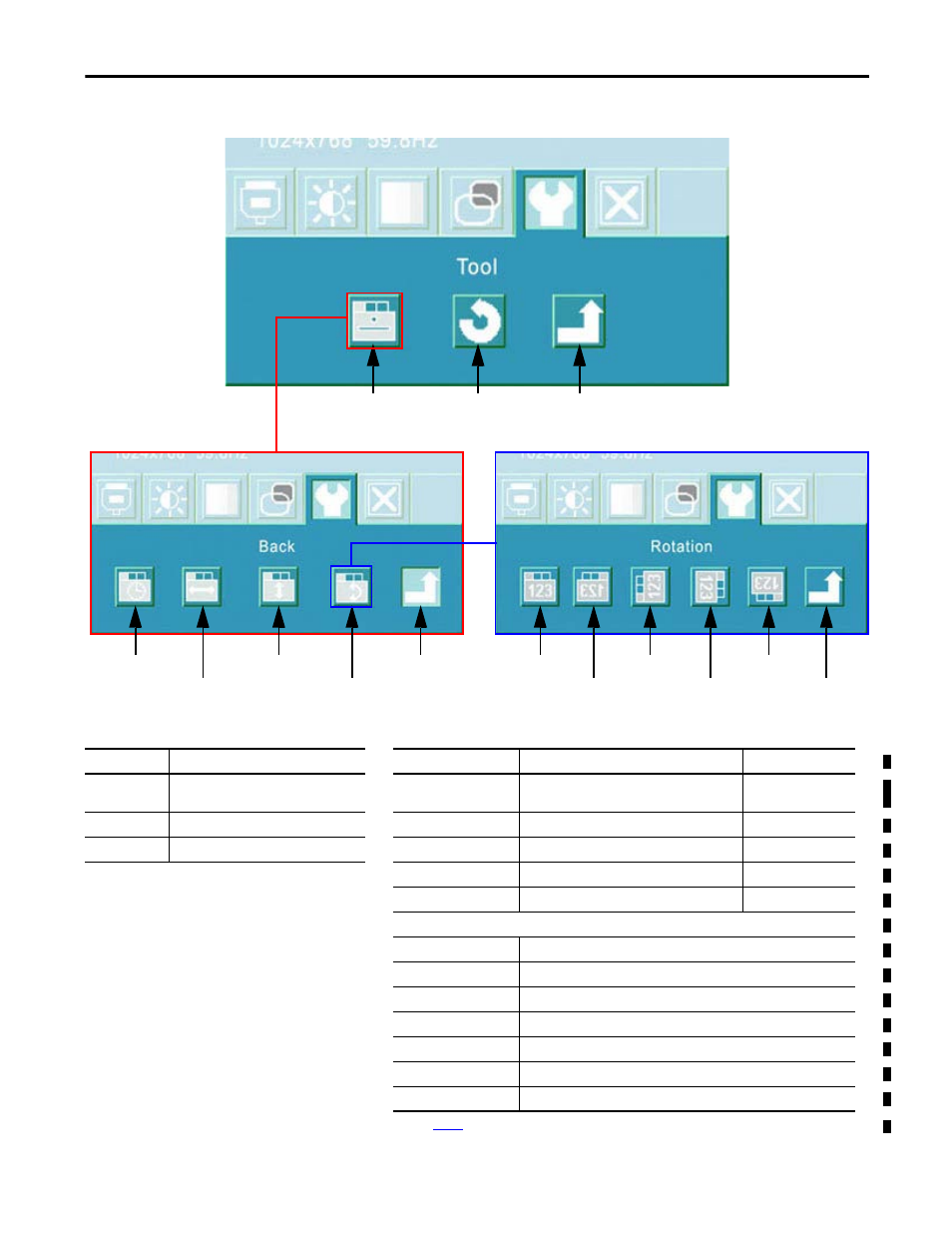

Table 8 - Tool Menu, OSD Submenu, and Rotation Submenu Descriptions
Factory
Reset
Back OSD
Standard
Mirror
Left
Right Back
Back
Rotation
Timer
Horizontal
Position
Vertical
Position
OSD Submenu Rotation Submenu
180 Degree
Tool Functions Description OSD Functions Description Value Range
OSD Accesses the OSD submenu. Timer Sets a maximum idle time for exiting the OSD
system if input is not received. 0…100 seconds in
increments of 2
Factory Reset Resets all OSD settings to factory defaults. Horizontal Position Adjusts the horizontal position of the OSD menu. 0…255
Back Returns to the OSD main menu. Vertical Position Adjusts the vertical position of the OSD menu. 0…155
Rotation Adjusts the direction of the OSD menu. See submenu below
Back Returns to the Tools menu.
Rotation Functions (1)
(1) Rotation functions apply to display but not the monitor. See installation guidelines on page 13 for monitor orientation.
Description
Standard Images are upright and text is read left-to-right.
Mirror Images and text are reversed (backwards).
Left View moves from bottom-to-top of monitor.
Right View moves from top-to-bottom of monitor.
180 Degree Images and text are reversed and upside down.
Back Returns to the Tools menu.
