Chapter 3 Display Configuration
Image Menu
Table 7 - Image Menu Description
Image Functions Description Value Range
Auto Automatically adjusts the horizontal and vertical image
position, frequency phase, and black level.
Width Adjusts the width. 0...100
Phase Adjusts the sampling phase. 0...100
Horizontal Position Adjusts the horizontal position of the image on the
screen. 0...100
Vertical Position Adjusts the vertical position of the image on the screen. 0...100
Back Returns to the OSD main menu.
TIP The Image functions are not available with a DVI connection.

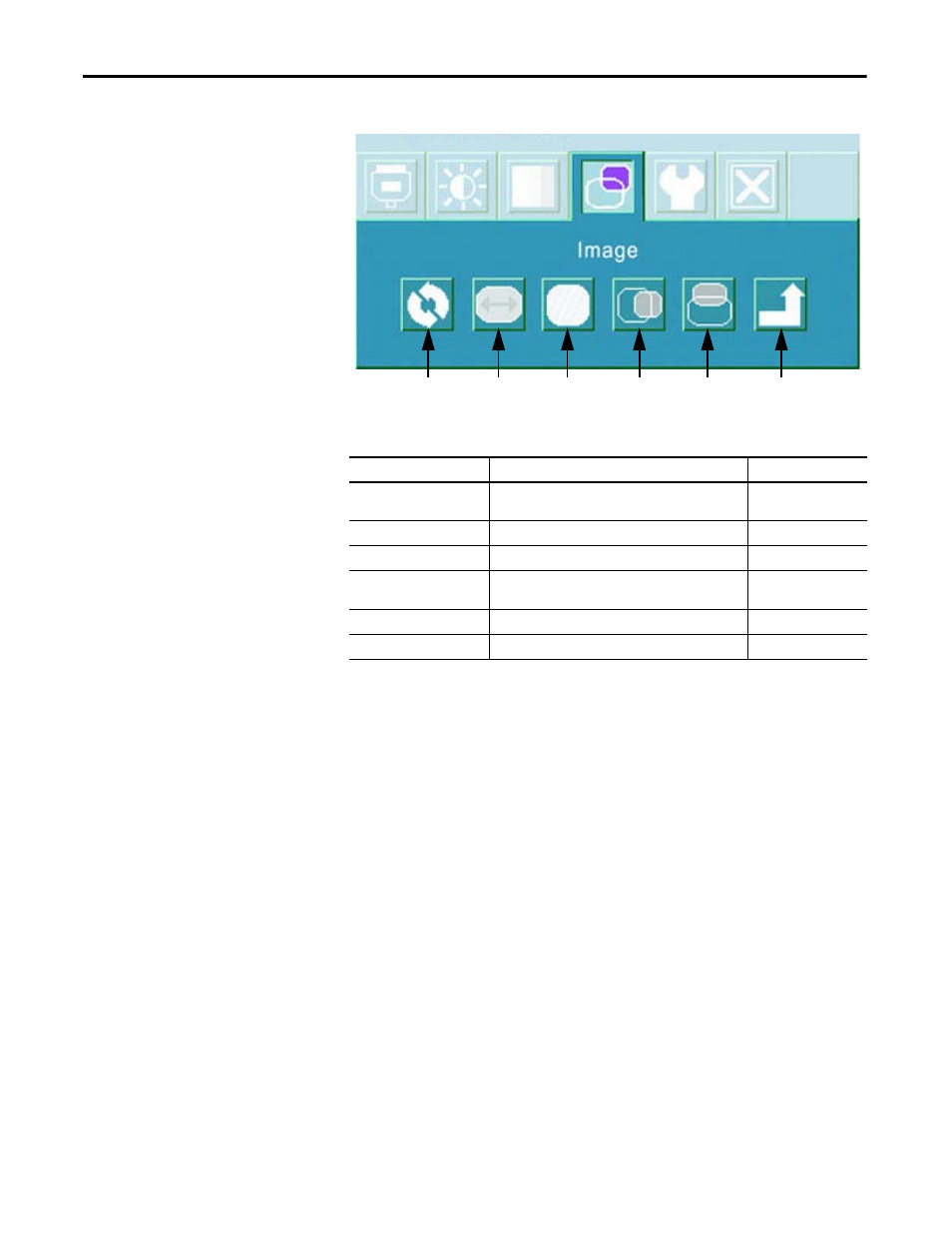

Width Phase Auto Horizontal
