Display Configuration Chapter 3
OSD Menus You can modify the settings to the monitors by using the following menus:
• Signal Selection
• Brightness and Contrast
• Color
• Image
• Tools

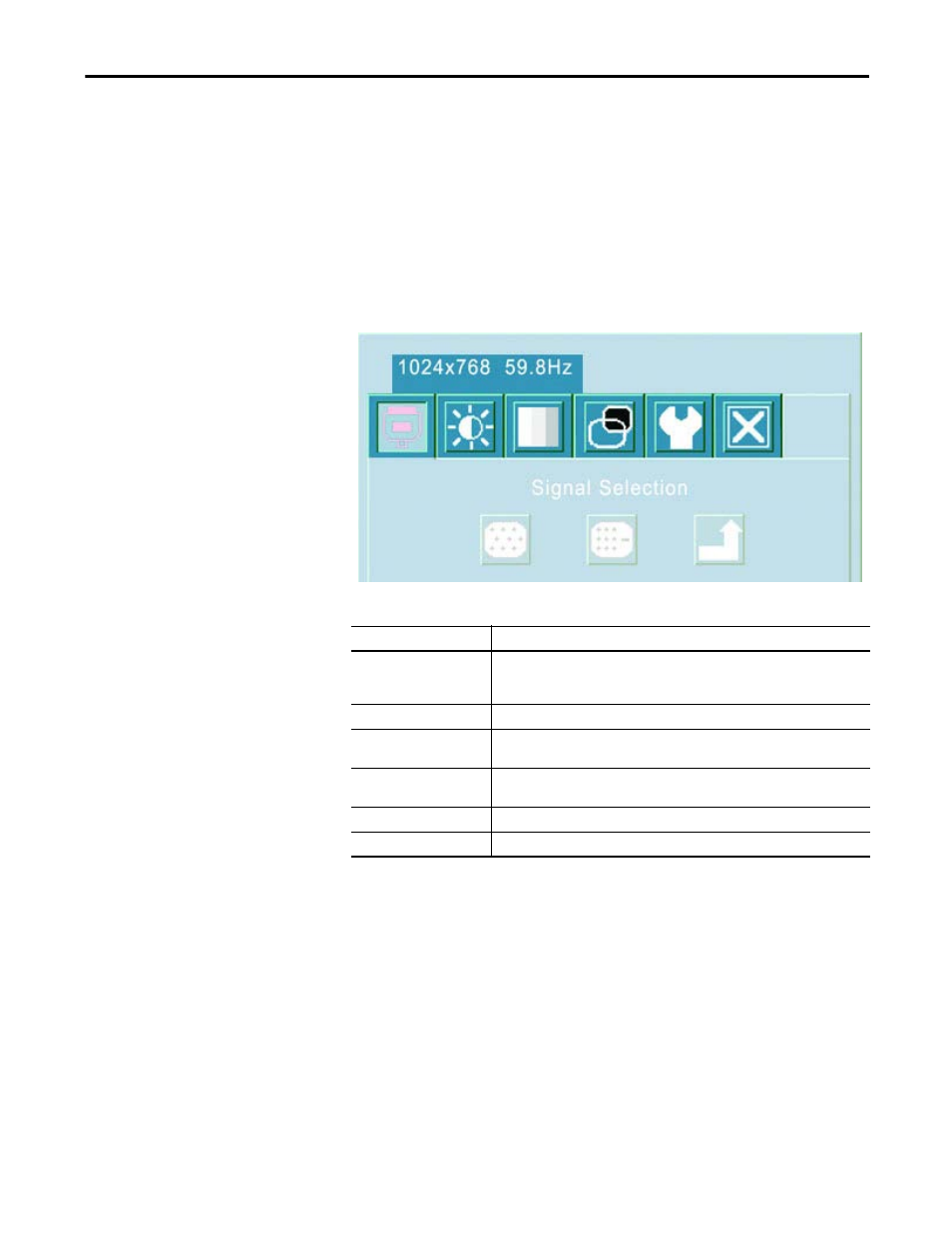

OSD Main Menu
Table 3 - Main Menu Description
Main Menu Description
Signal Selection Accesses options for selecting analog or digital picture input. The input selection
depends on the signal from the computer and the type of cable connected to the
monitor.
Brightness & Contrast Accesses functions to adjust the brightness and contrast.
Color Accesses functions to select standard RGB levels, manually adjust RGB levels or set the
color temperature.
Image Accesses functions to auto-adjust the display settings or manually adjust the
horizontal and vertical image position, frequency phase, and width level.
Tools Accesses functions to adjust the OSD, reset factory settings.
Exit Exits the OSD main menu.
Signal
Selection
Brightness
& Contrast
Color Image Tools Exit
Video Resolution
and Refresh Rate
