Page 14: Mounting clearance
14
Rockwell Automation Publication 6176M-UM001D-EN-P - December 2012
Chapter 2
Installation
Required Tools
These tools are required for installation:
• Panel cutout tools
• #2 Phillips torque screwdriver

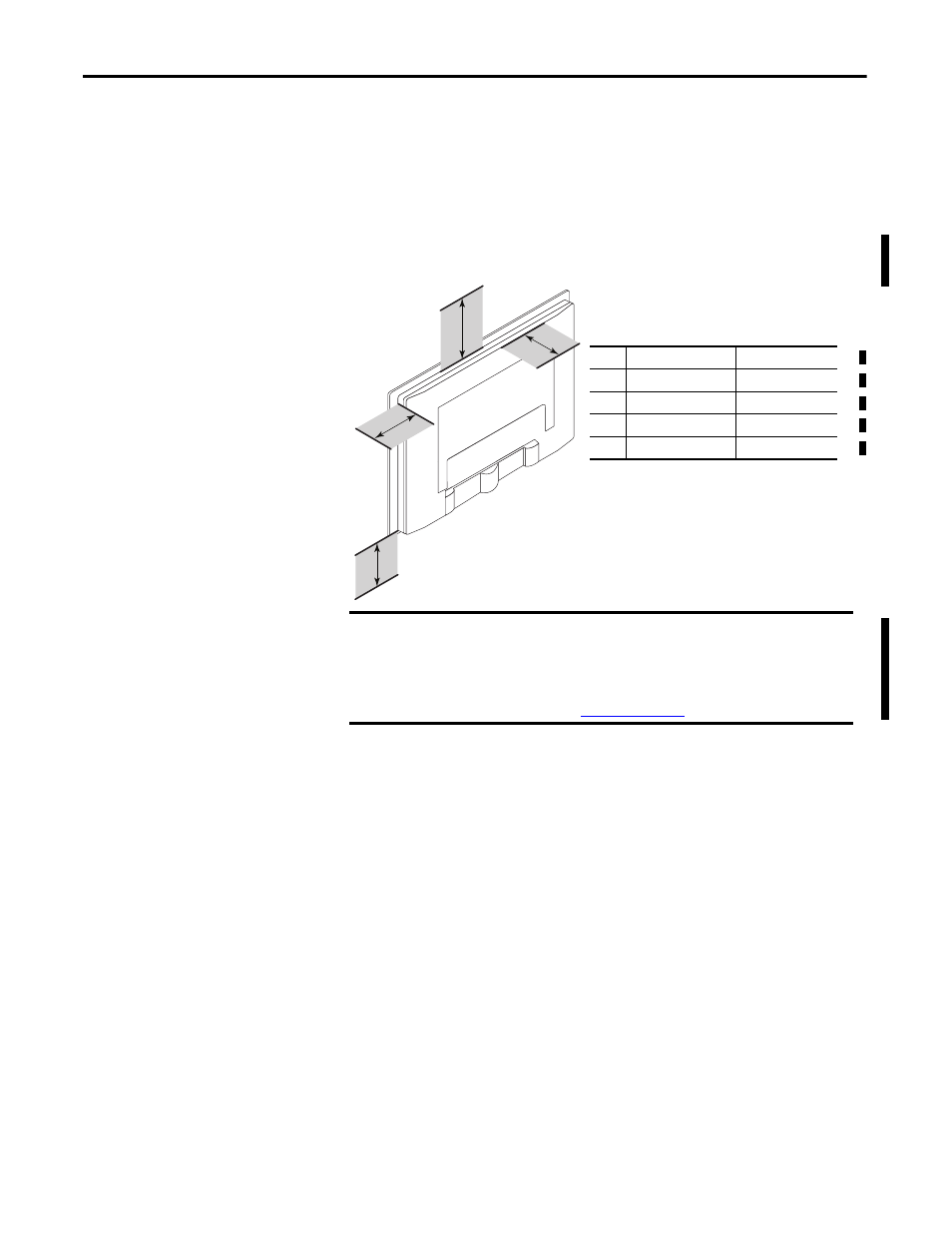

Mounting Clearance
Requirements
Review the monitor dimensions to make sure you allow adequate clearance
around the monitor for ventilation and cable connections.
IMPORTANT
Do not operate the monitor in an enclosure that uses minimum clearances
unless adequate ventilation or other cooling methods are used to maintain
the monitor temperature at its specified rating.
The ambient temperature around the monitor must not exceed the operating
temperature specified in
.
Item
Monitor Location
Clearance, min
1
Top
77 mm (3 in.)
2
Side (both)
50 mm (2 in.)
3
Back
50 mm (2 in.)
4
Bottom
50 mm (2 in.)
2
1
3
4
