Chapter 3 Display Configuration

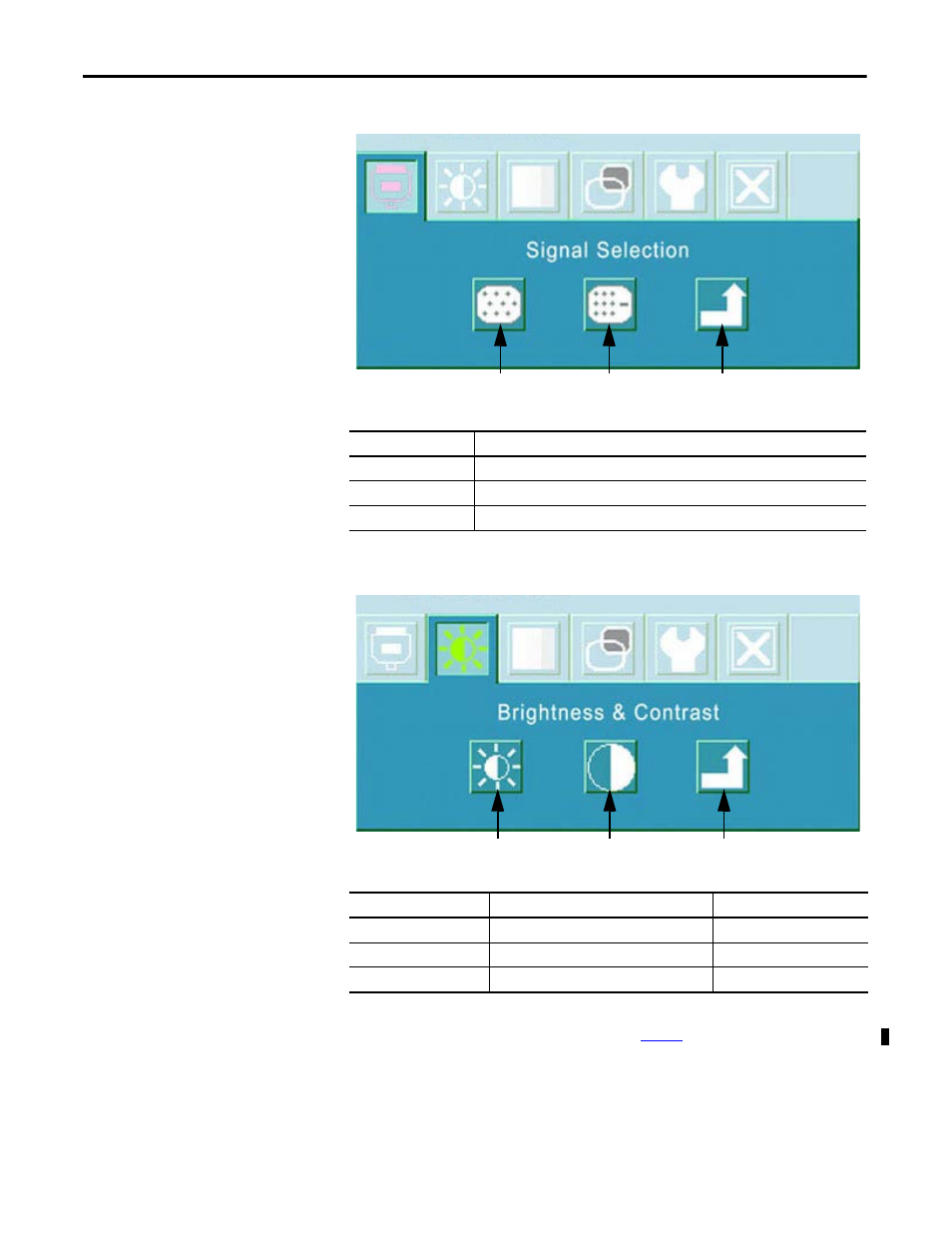

Signal Selection Menu
Table 4 - Signal Selection Menu Description
Brightness and Contrast Menu
Table 5 - Brightness and Contrast Menu Description
Icon Function
VGA (analog input) Displays the incoming VGA analog signal from the 15-pin VGA input connector.
DVI (digital input) Displays the incoming DVI digital signal from the DVI input connector.
Back Returns to the OSD main menu.
Icon Function Value Range
Brightness Adjusts the brightness of the screen. 0…100
Contrast Adjusts the contrast of the screen. 0…100
Back Returns to the OSD main menu.
TIP The more common way to adjust brightness is to use the Up/Down buttons
on the back of the monitor. See
page 26 for further information.
Back VGA DVI
Contrast Back Brightness
