Monitor dimensions, Install the monitor, Panel mounting – Rockwell Automation 6176M-xxxx Standard Industrial Monitors User Manual User Manual

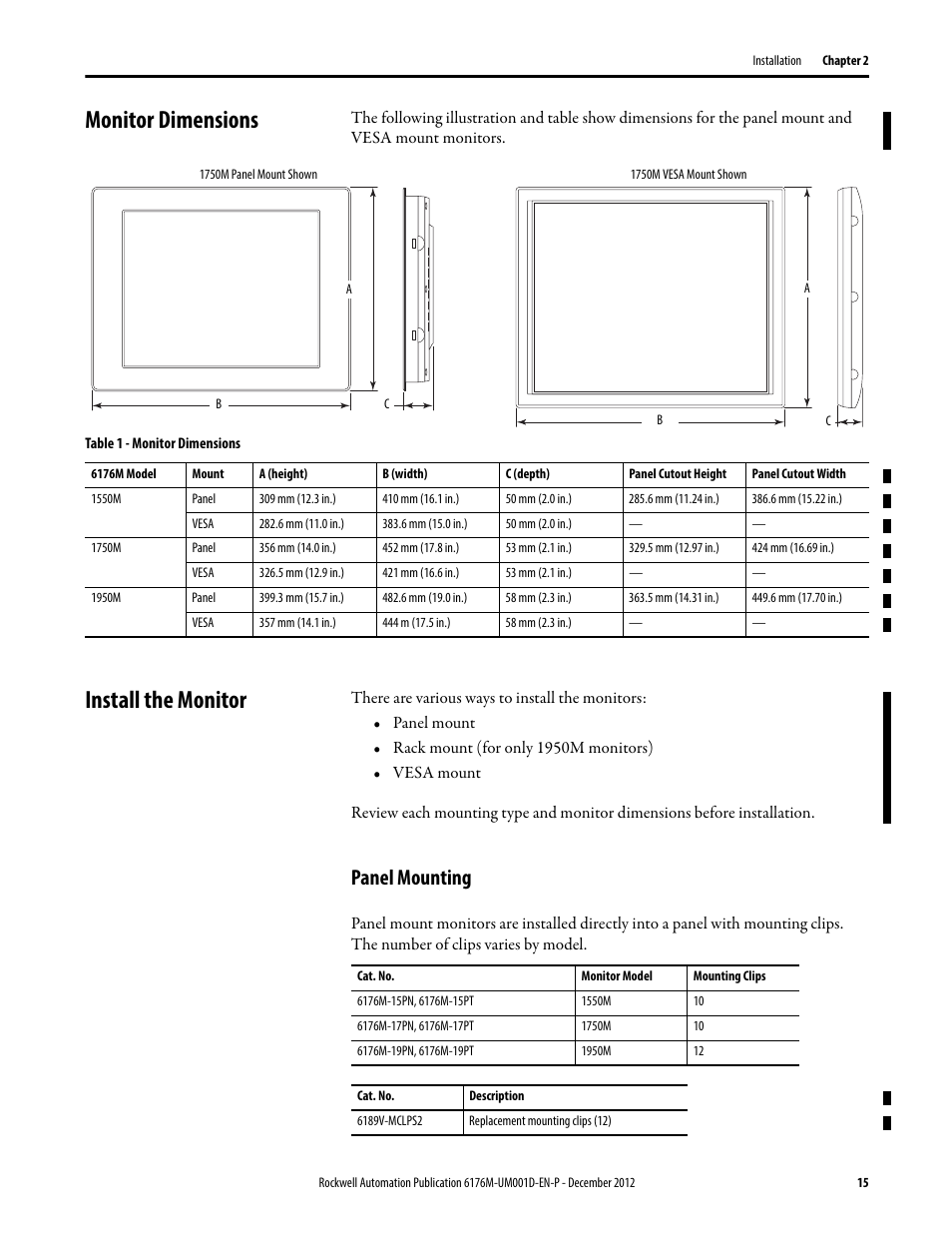

Page 15: Monitor dimensions install the monitor
