Appendix C PanelView Component Emulator

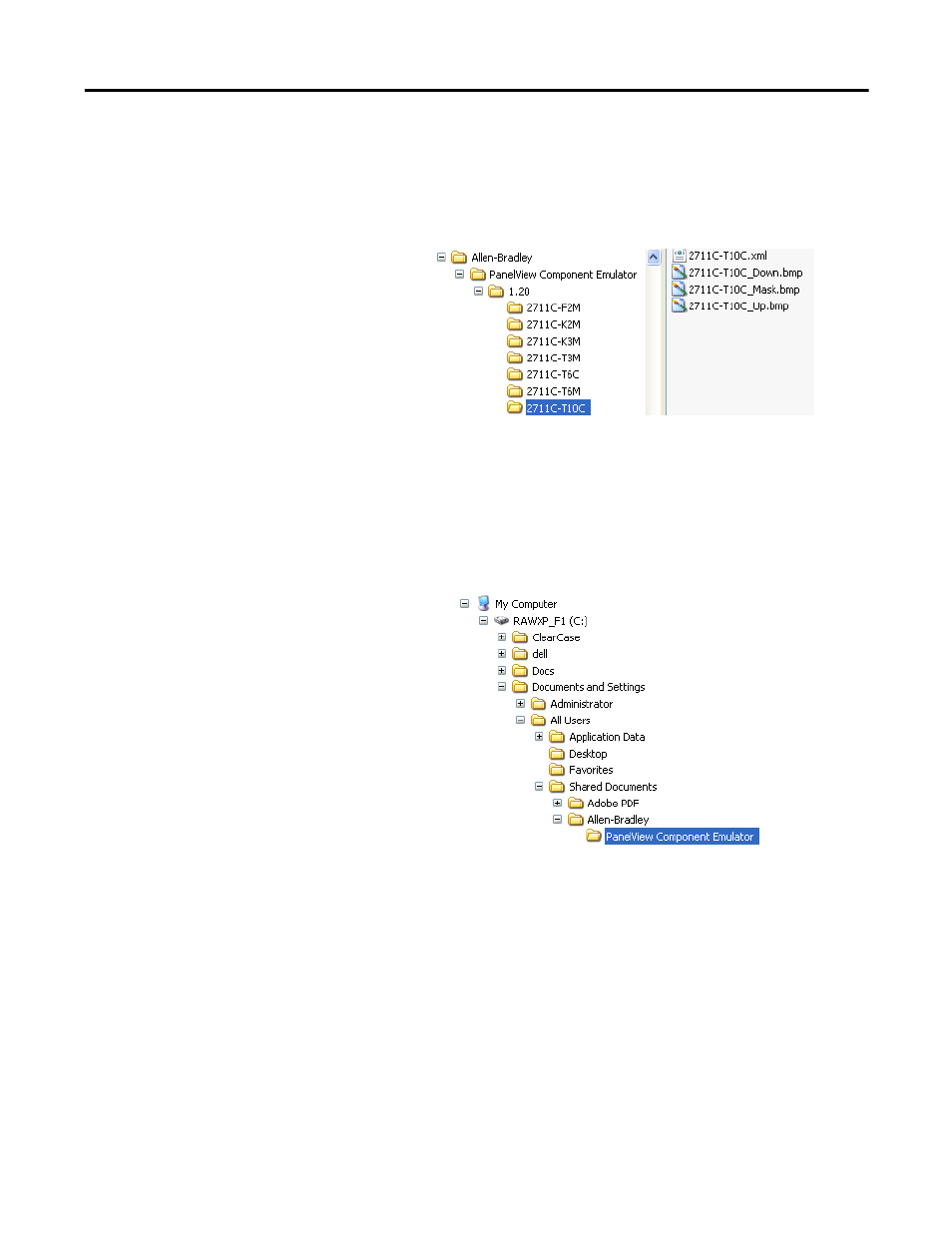

There is a subdirectory for each terminal type. The subdirectory name is the
catalog number for the respective terminal type. These subdirectories contain the
files that define each emulated terminal image and behavior. The files making up
the emulator contain the base name of the terminal catalog.

Terminal Subdirectory

Mapped Share Folder

The emulator is launched with the command line option that maps a PC folder
into the emulator's file system. The given computer folder is referred to as the
Mapped Share folder. The default location for this mapped share folder is shown.

However the installer allows the user to optionally select a different location for
this shared folder.

Launch Mechanism

There are two primary ways to launch the PanelView Component emulator. The
first is via entries in the Windows Start Menu. The second is via double-clicking a
PanelView Component user application file (*.cha).
