Page 11: Chapter 1, Overview, Chapter objectives about the terminals, Chapter
11
Publication 2711C-UM001I-EN-P - July 2014
11
Chapter
1
Overview
Chapter Objectives
This chapter gives an overview of the PanelView component terminals.
• About the terminals
• How to connect browser
• PanelView Explorer
• How to display help
• Peripheral connection
• Catalog number configuration
About the Terminals
PanelView Component terminals are operator interface devices for monitoring
and controlling devices attached to a controller. HMI applications are created
using a Web application while your computer is connected directly to the
terminal. You see the direct result on the terminal display without having to
download first.

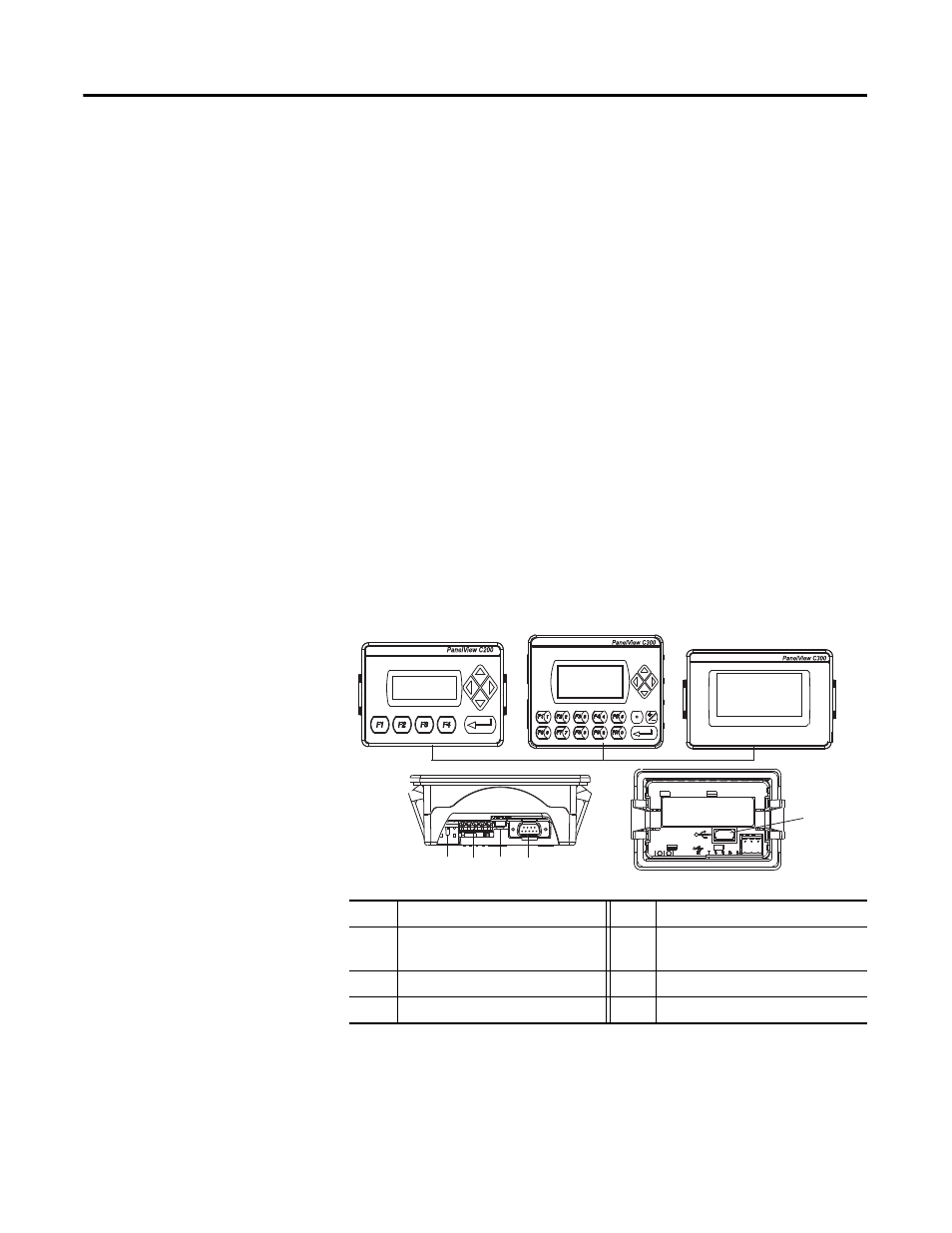

PanelView Component C200 and C300 Terminals
Item
Description
Item
Description
1
Function keys, keypad, or touch
display
4
USB device port
2
24V DC power input
5
RS-232 serial port
3
RS-422 and RS-485 port
6
USB host port
2
3
4
5
6
1
