Other Commands and Options 7-7
Save Options

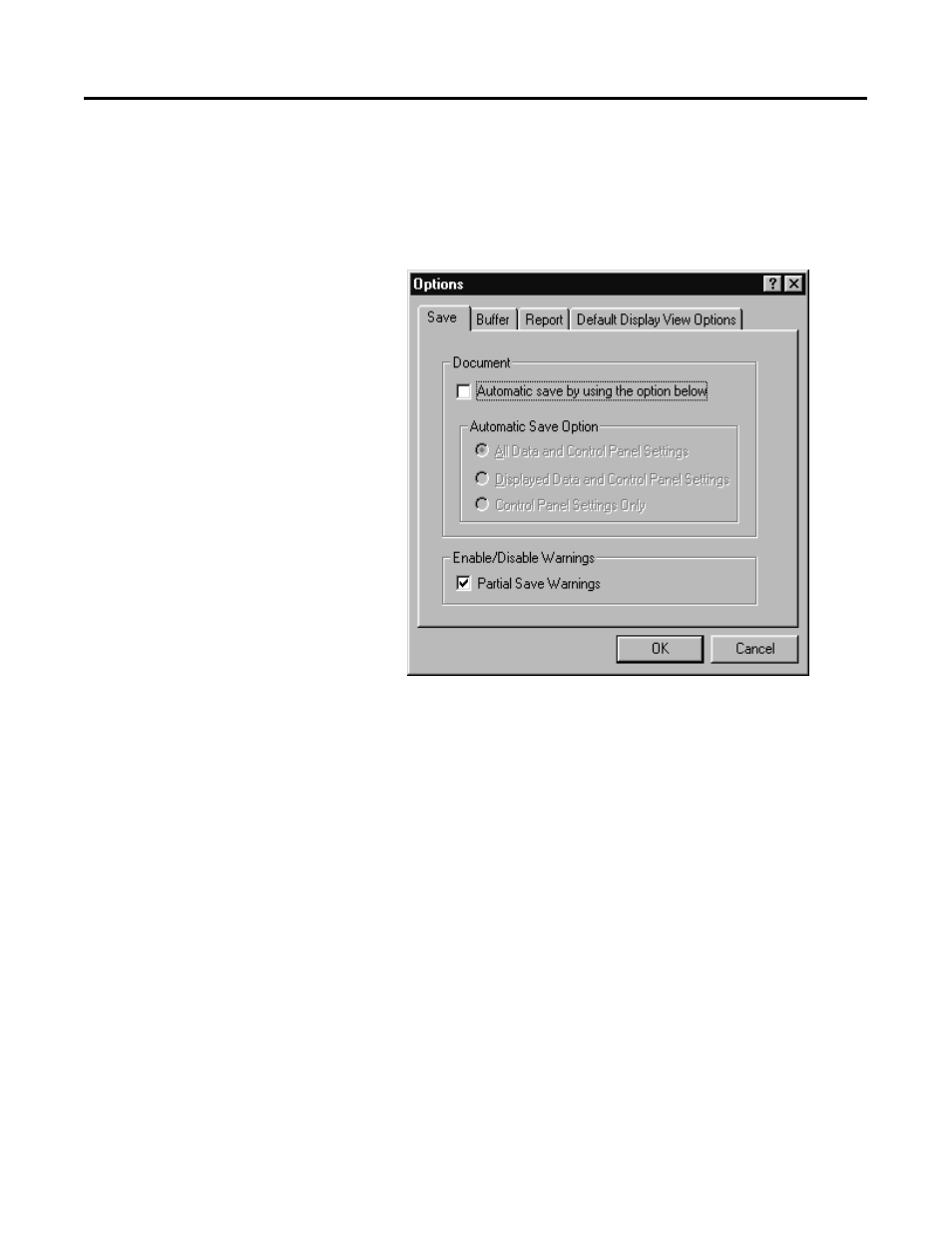

Use the save option to define an automatic save configuration. The
Options dialog box is shown below with the Save options displayed.
The dialog box is divided into two independent parts:
•
upper part - When you enable Automatic save by using the option
below, you gain access to the Automatic Save Option radio
buttons. Whichever radio button you select defines the default
automatic saving mode. Consequently, the Save dialog box
described on page 7-1 will not display when an automatic save
option is selected.
•
lower part - the first two automatic save options (the two that
include data options) have a warning box attached to them. Use
the Partial Save Warnings box to enable (Partial Save Warnings
box is checked) or disable these warning boxes.
Buffer Size
You can select the maximum amount of data you want to collect into
the buffer via the Buffer Options dialog box. You select the increments
by 256 Kbytes (KB). The default value is 512 KB (the minimum value).
