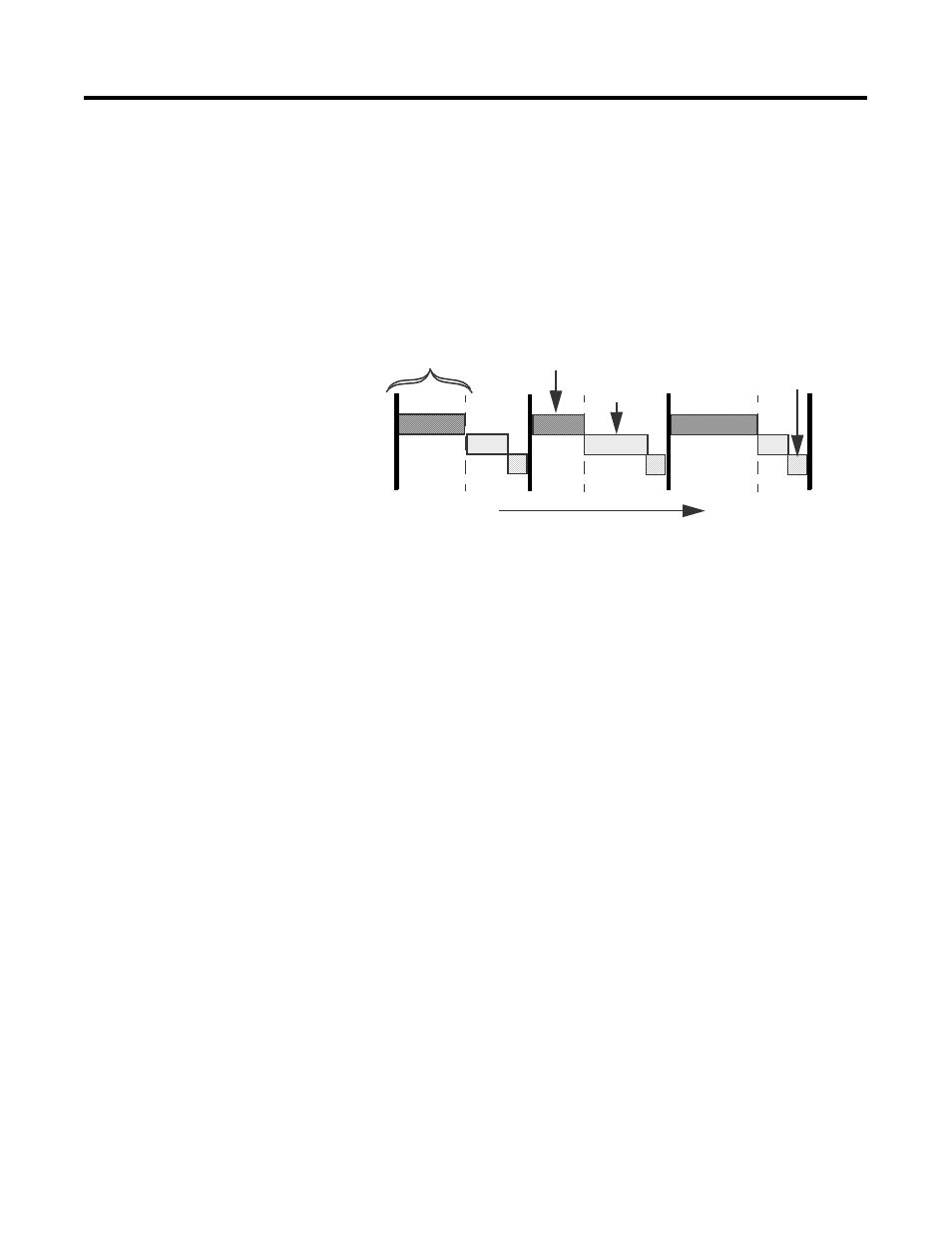

The following illustration describes the ControlNet network’s link
layer services.
ControlNet Messages
The repetitive time interval in which data can be sent on a link is
called the Network Update Time (NUT). The NUT is divided into three
parts containing three defined types of Media Access Control (MAC)
frames:
•
Scheduled
Every scheduled node in sequential order is guaranteed one
opportunity to transmit. Information that is time-critical is sent
during the scheduled part of the interval. The bandwidth is
reserved in advance to support real time data transfers. Real time
data transfers include:
•
real time control data (I/O updates)
•
analog data
•
peer to peer interlocking
•
Unscheduled
All nodes transmit on a rotating basis in sequential order. This
rotation repeats until the time allocated for the unscheduled
portion is used up.
7
8
9..
8
9
10..
9
10..
Network Update Time (NUT)
Scheduled
Service
Unscheduled
Service
Network Maintenance
Service the
“Guardband”
41561
0 ... SMAX
0 ... SMAX
Time
Link Layer Services
0 ... SMAX
