Page 54

Publication 9220-052C-EN-P - August 2002
5-4 Display Information

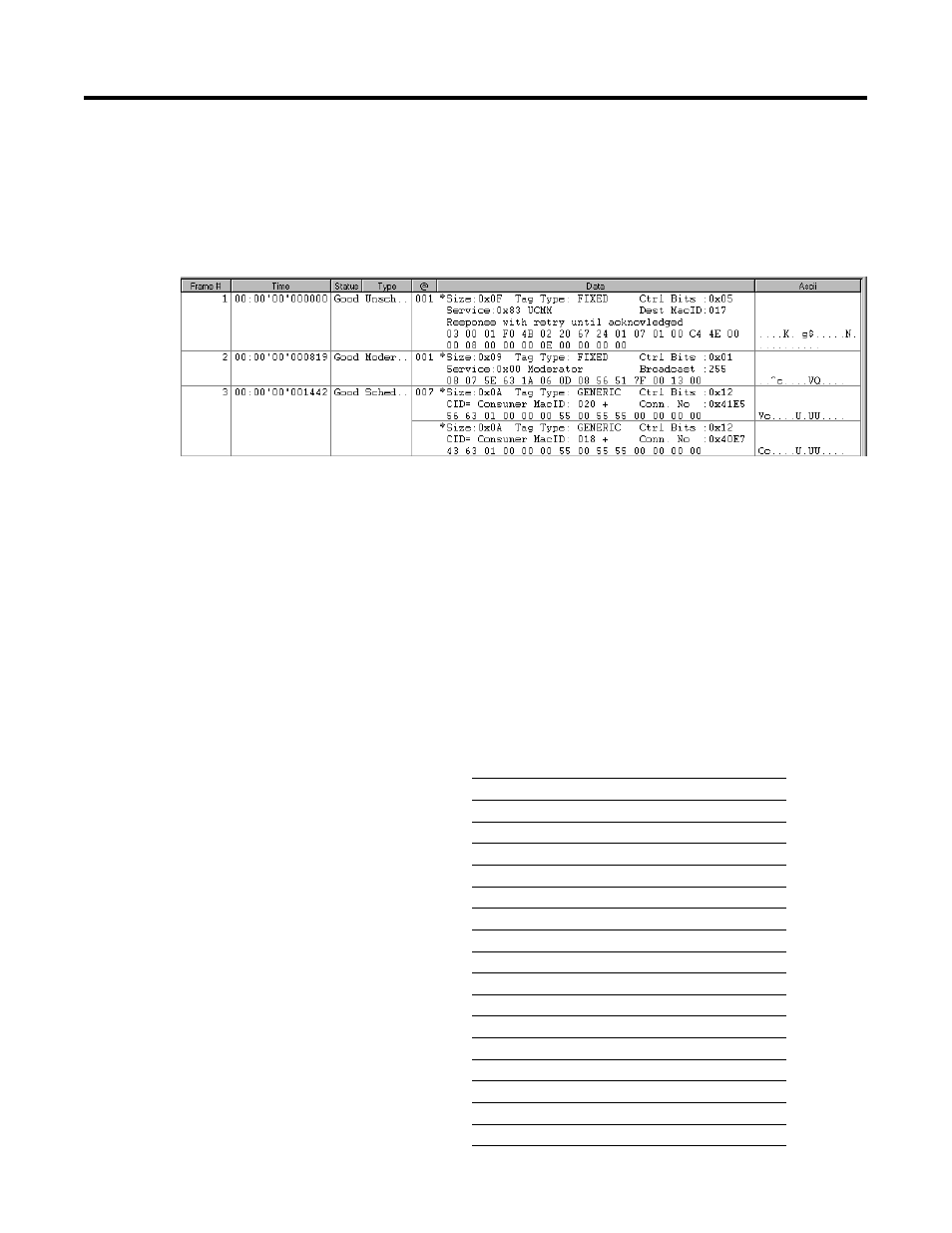

Interpreted
Each LPacket Header is interpreted. The first two lines of each LPacket
details the contents of the LPacket Header. The Interpreted data
format is shown below.
The next two sections describe LPacket Header information for fixed
and generic tags.
LPacket Header for a Fixed Tag:
The LPacket Header for a fixed tag is composed of: Size + Control bits
+ Service + Destination MAC ID.
See the following table for fixed tag service numbers and their
description.
Fixed Tag Service
Description
0x00
Moderator
0x01 – 0x08
Vendor specific
0x09
Ping request
0x0A – 0x14
Vendor specific
0x15
tMinus
0x16 – 0x28
Vendor specific
0x29
Ping reply
0x2A – 0x3F
Vendor specific
0x40 – 0x6F
Reserved
0x70 – 0x7F
Vendor specific
0x80
I’m alive
0x81
Link parameters
0x82
Reserved
0x83
UCMM
0x84
TUI
0x85
Reserved for IP
0x86
WAMI
