Publication 9220-052C-EN-P - August 2002
Display Information 5-9

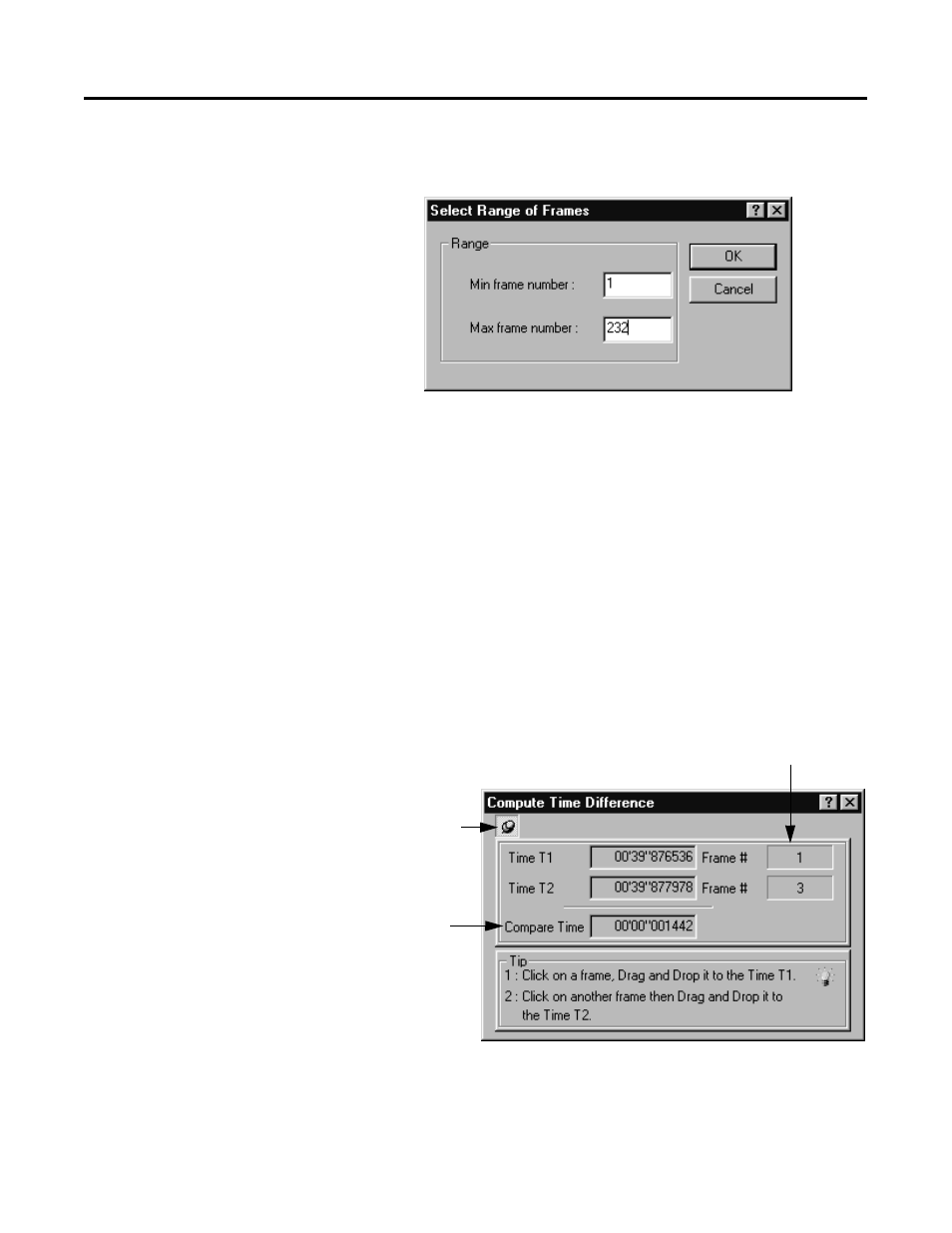

You see this dialog box:
Enter the first frame in the range in the Min frame number box and the
last frame in the range in the Max frame number box and click OK. By
default, the range of frames displayed correspond to the minimum &
maximum frame numbers contained in the current document. You can
only reduce the range.
Compute Time Difference
Use this function to compute the time difference between two
ControlNet frames. Access the Compute Time Difference dialog box
from the MAC Frame Data view pop-up menu.
You see this dialog box:
Enter Time T1 and Time T2 values by clicking on a frame in MAC
Frame Data view and dragging and dropping it into the Time T1 or
Time T2 box.
Click on the pin to
activate the dialog box.
When pinned, the box
is always visible.
The frame number of the frame is used
to easily retrieve the corresponding frame.
The Compare Time
result window
always shows the
positive time
difference between
T1 and T2.
