Publication 9220-052C-EN-P - August 2002
Chapter
2
The ControlNet Traffic Analyzer Tool
What This Chapter Contains Read this chapter for a description of the options provided in the
Traffic Analyzer tool. The following table describes what this
chapter contains and where to find specific information.

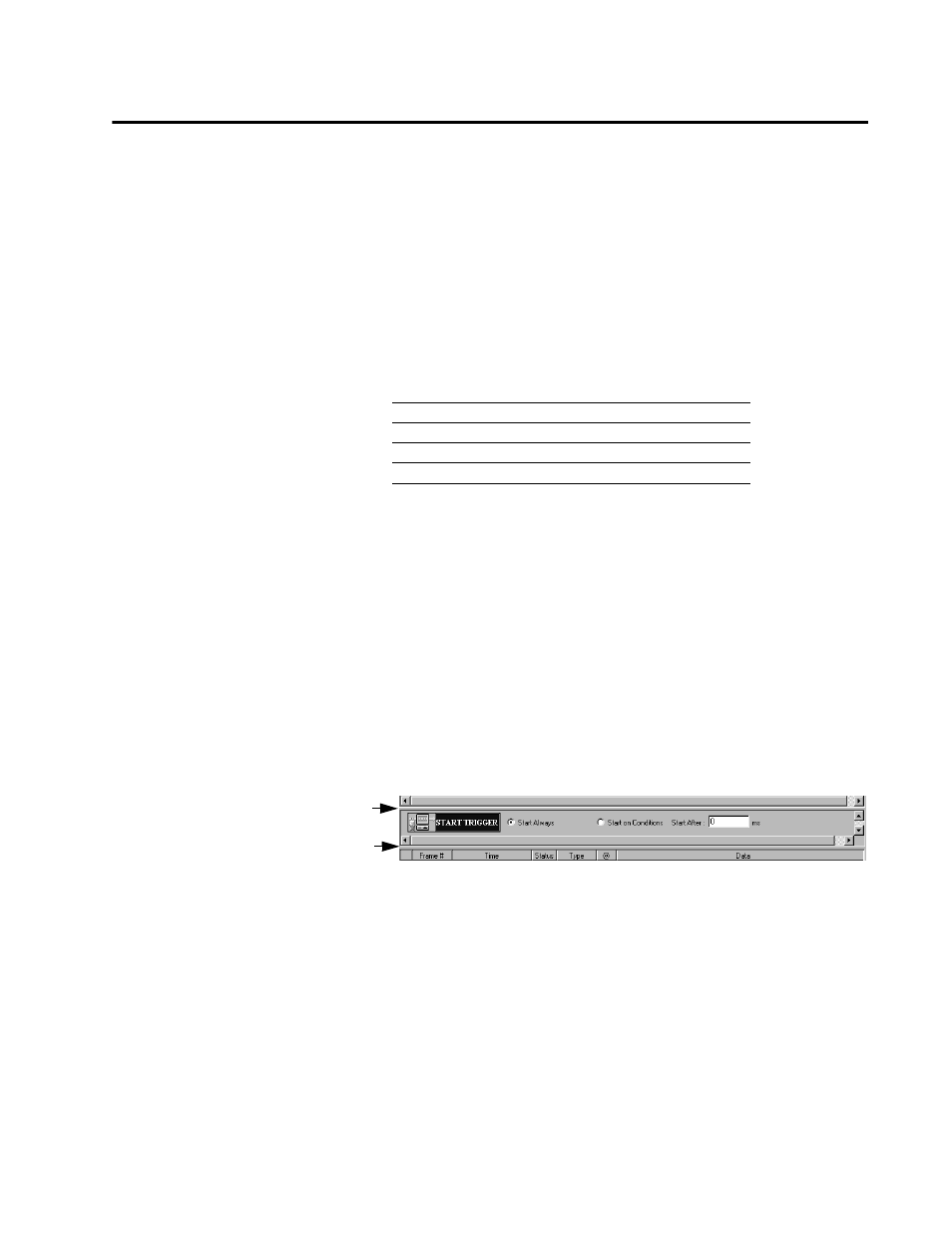

The User Interface The User interface of the ControlNet Traffic Analyzer tool was
designed to be easy to use and to give you the maximum
amount of information. When you open a document, you see a
window divided into three parts:
•
the Control Panel view (upper part)
•
the Filter/Trigger view (middle part)
•
the MAC Frame Data view (lower part)
These three parts are separated by horizontal splitters that are
used to resize the views.
For information about See page
the user interface 2-1
the Control Panel view 2-2
the Filter/Trigger view 2-4
the MAC Frame Data view 2-5
Horizontal splitters
Horizontal splitters
