Rockwell Automation 2085 Micro800 Discrete and Analog Expansion I/O Modules User Manual
Page 46

38
Rockwell Automation Publication 2080-UM003A-EN-E - March 2013
Chapter 5 Configure Your Expansion I/O Module

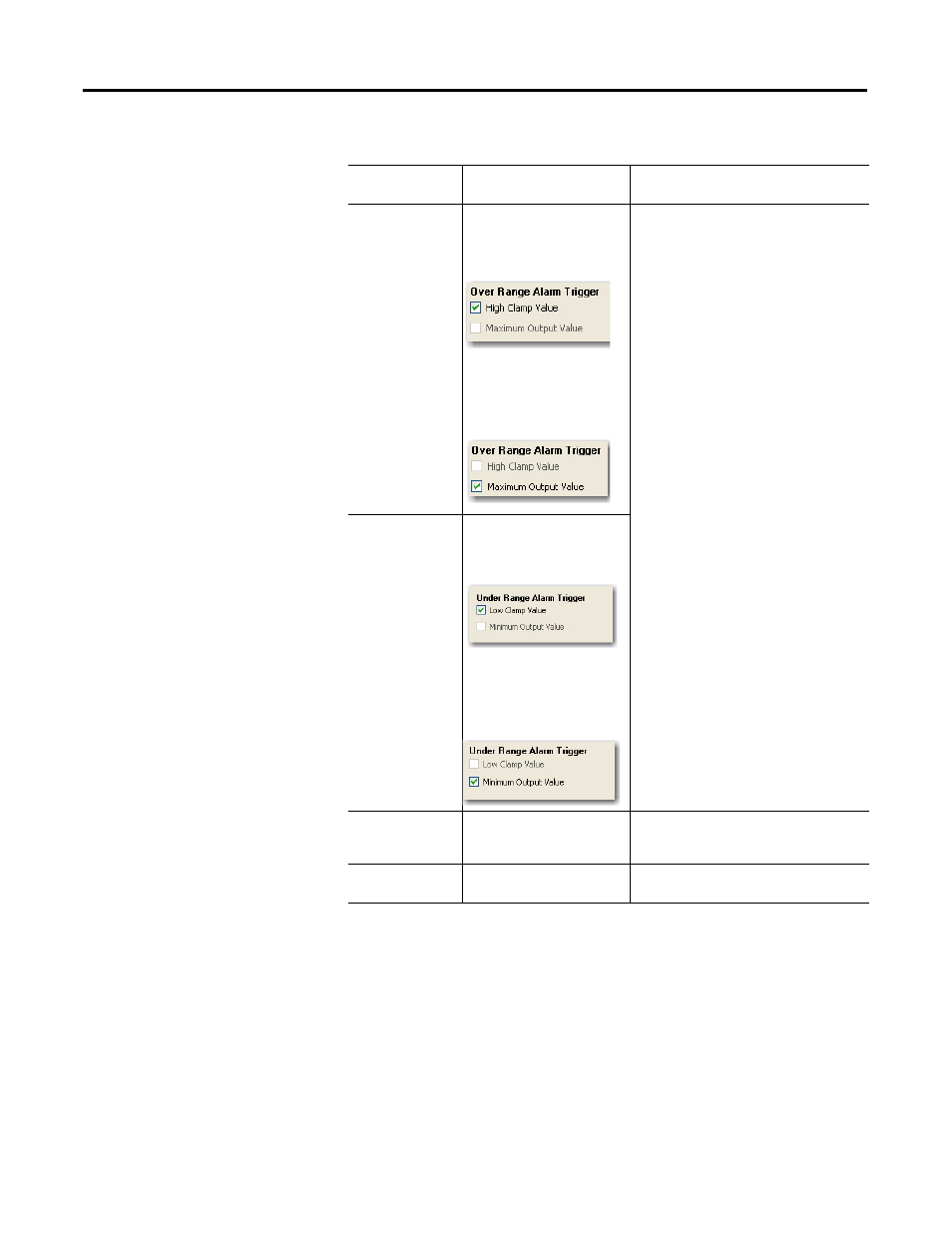

Overrange alarm
trigger
If you enabled and entered a
High Clamp value, you can
check High Clamp Value as
overrange alarm trigger.
If you did not enable and
entered a High Clamp value,
you can check Maximum
Output Value as your
overrange alarm trigger.
The overrange and underrange feature
detects when the output module is operating
beyond limits set by the output range. The
trigger could be set based on clamp values or
minimum/maximum output values.
Underrange alarm
trigger
If you enabled and entered a
Low Clamp value, you can
check Low Clamp Value to set
it as underrange alarm trigger.
If you did not enable and
entered a Low Clamp value,
you can check Minimum
Output Value as underrange
alarm trigger.
Latch over and
under alarm
Click to latch.
Check the box to latch an alarm in the set
position even if the condition that causes the
alarm disappears.
Restore defaults
Click button to restore
defaults.
Restores default device properties.
Configuration Parameters for 2085-OF4
Configuration
Property
What to do
Description
