Terminal block 1 terminal block 2 – Rockwell Automation 2085 Micro800 Discrete and Analog Expansion I/O Modules User Manual
Page 28
20
Rockwell Automation Publication 2080-UM003A-EN-E - March 2013

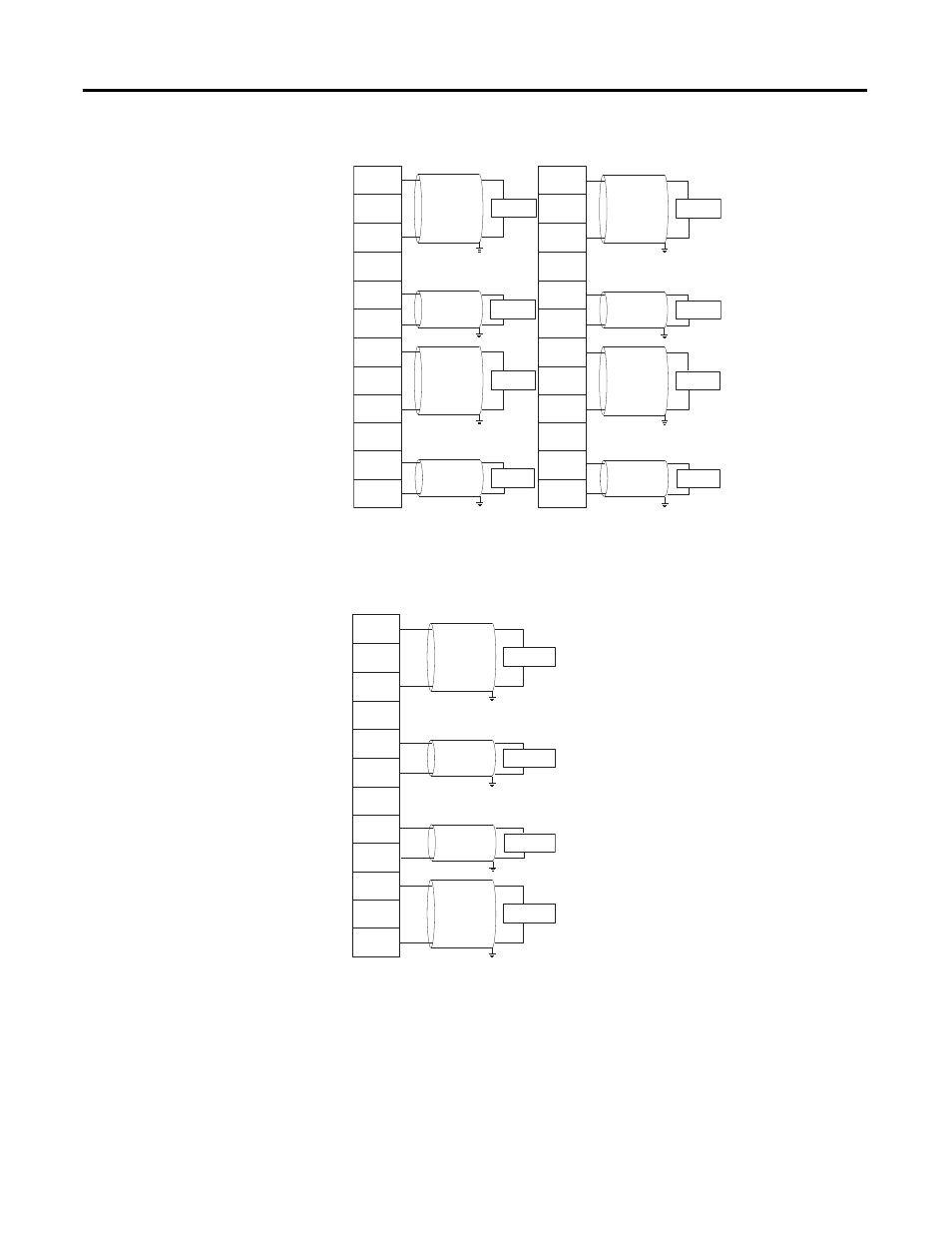

Chapter 3 Wiring Connections
2085-IF8
2085-OF4
CI-0
VI-0
COM0
CI-1
VI-1
COM1
CI-2
VI-2
COM2
CI-3
VI-3
COM3
Current
transmitter
Shielded cable
Current
transmitter
Shielded cable
Voltage
transmitter
Shielded cable
Voltage
transmitter
Shielded cable
CI-4
VI-4
COM4
CI-5
VI-5
COM5
CI-6
VI-6
COM6
CI-7
VI-7
COM7
Current
transmitter
Shielded cable
Current
transmitter
Shielded cable
Voltage
transmitter
Shielded cable
Voltage
transmitter
Shielded cable
45322
Terminal Block 1
Terminal Block 2
CO-0
VO-0
COM0
CO-1
VO-1
COM1
CO-2
VO-2
COM2
CO-3
VO-3
COM3
Current
load
Shielded cable
Current
load
Shielded cable
Voltage
load
Shielded cable
Voltage
load
Shielded cable
45321
