Rockwell Automation Publication 2080-UM003A-EN-E - March 2013 31
Configure Your Expansion I/O Module Chapter 5

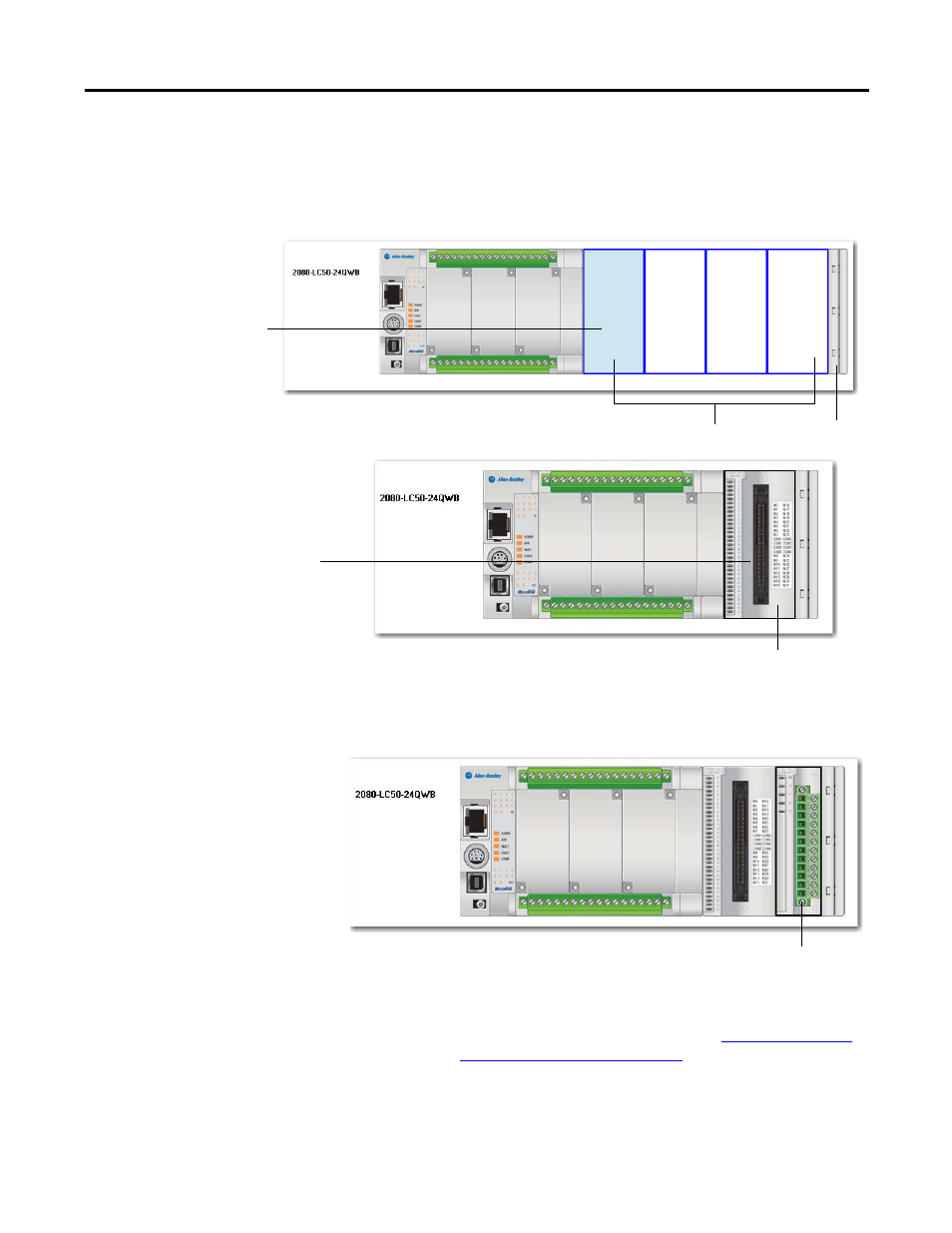

3. Click and drag 2085-IQ32T to the right of the controller graphic at the
center pane. Four blue slots appear to indicate available slots for expansion
I/O modules. Drop 2085-IQ32T on the first and rightmost slot against
the controller.
4. From the Expansion Modules folder on the Device Toolbox pane, drag and
drop 2085-IF4 on the second Expansion I/O slot, next to 2085-IQ32T.
5. From the Expansion Modules folder on the Device Toolbox, drag and drop
2085-OB16 on the third Expansion I/O slot, next to 2085-IF4.
Expansion I/O slots
2085-IQ32T
2085-ECR
Drag and drop the expansion I/O
device in the slot.
The device appears in the slot
where you have dropped it.
TIP To move an expansion I/O device to another slot, simply drag and drop
the device to the preferred slot. For step-by-step instructions on how to
delete and replace expansion I/O devices, see
Delete and Replace an
Expansion I/O Configuration on page 42 .
2085-IF4
