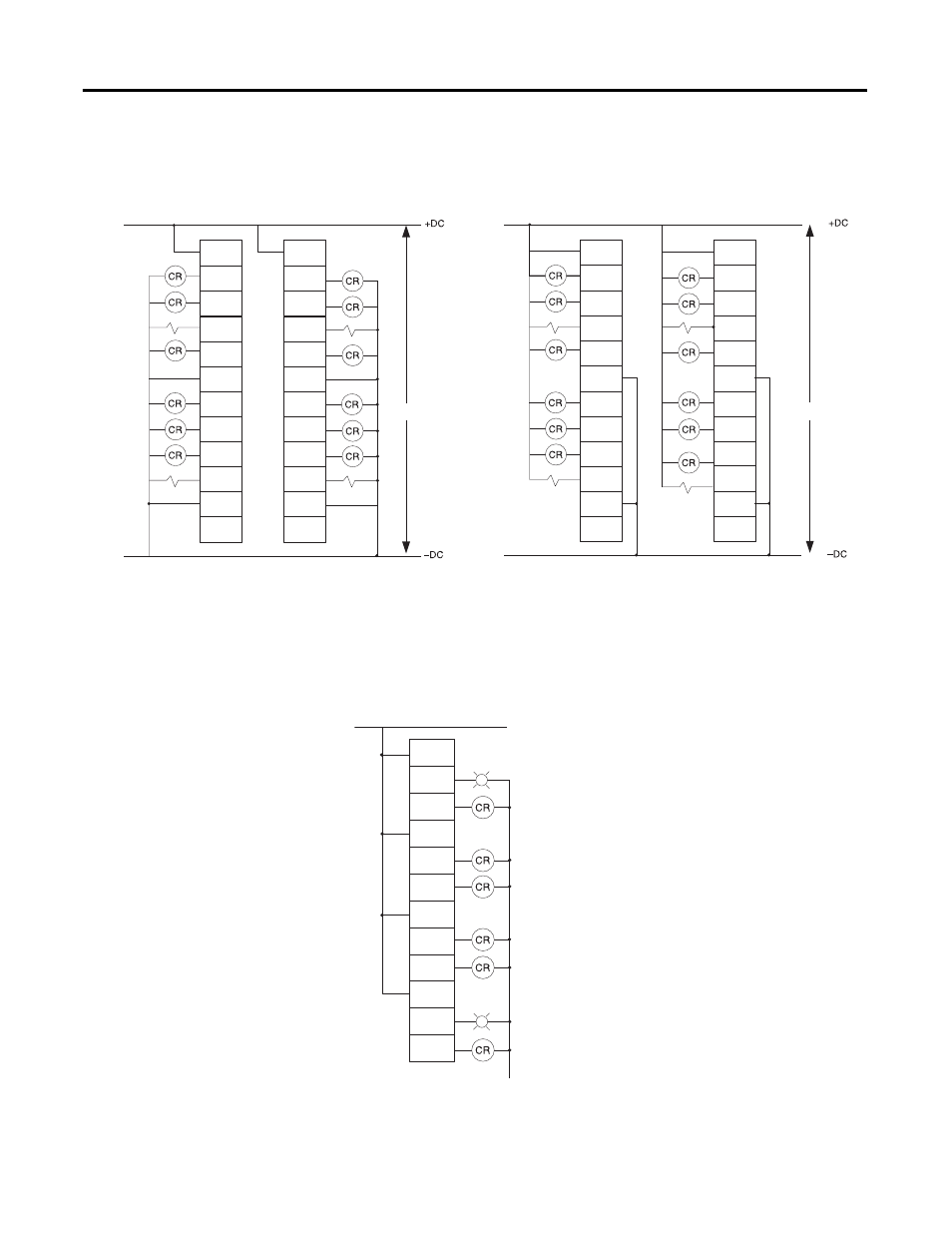

Chapter 3 Wiring Connections
2085-OB16 and 2085-OV16
2085-OW8
+CM0
O-00
O-01
O-02
O-03
-CM0
O-04
O-05
O-06
O-07
-CM0
NC
+CM1
O-08
O-09
O-10
O-11
-CM1
O-12
O-13
O-14
O-15
-CM1
NC
24V DC (Source)
+CM0
O-00
O-01
O-02
O-03
-CM0
O-04
O-05
O-06
O-07
-CM0
NC
+CM1
O-08
O-09
O-10
O-11
-CM0
O-12
O-13
O-14
O-15
-CM0
NC
24V DC (Sink)
45306
2085-OV16 2085-OB16
45327
Terminal Block 1 Terminal Block 2 Terminal Block 1 Terminal Block 2
CM0
O-00
O-01
CM1
O-02
O-03
CM2
O-04
O-05
CM3
O-06
O-07
L1 or +DC or -DC
L2 or -DC or +DC 45310
