Appendix
D
SLC/PLC Program Examples
PLC-5 Channel 0 to DL40 Plus
Slave
This program assumes that the message text is entered in the string
file ST30:10. This file contains the message text and defines the
slave number and line number the mesage is to be displayed on.
Refer to page 4-3 for an example message.
TON
Timer On Delay
Timer T4:1
Time Base 0.01
Preset 50<
Accum 50<
EN
DN

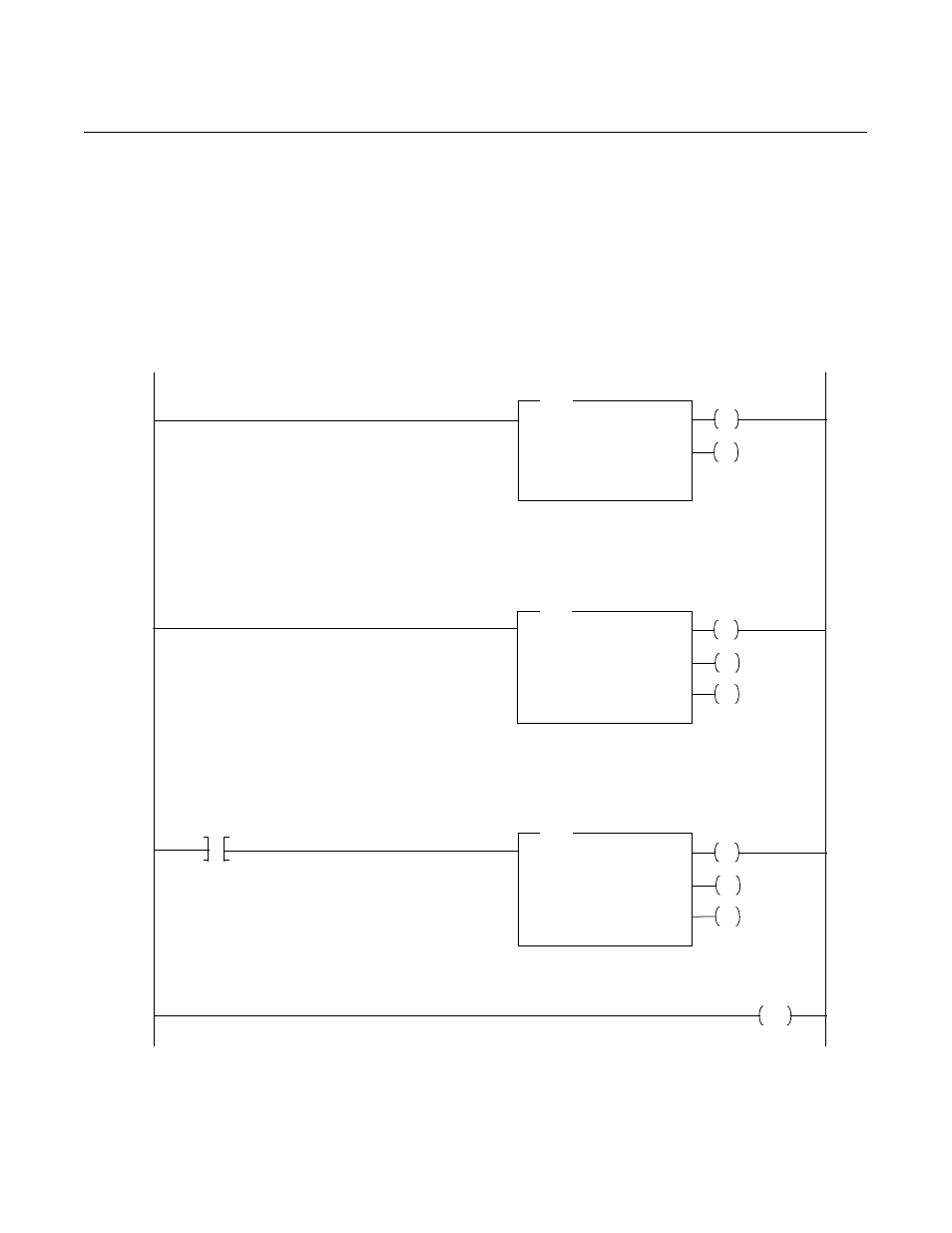

PLC-5 Channel 0 to Dataliner DL40 Slave
in DL Slave Mode, PLC-5 in User-Mode
0000
String sent to DL40 Slave at serial address 01, line 01.
0001
AWT
ASCII Write
Channel 0
Source ST30:10
Control R6:25
String Length 22<
EN
DN
Characters Sent 22<
ER
String sent to DL40 Slave at serial address 01, Line 2.
0002
AWT
ASCII Write
Channel 0
Source ST30:15
Control R6:20
String Length 23<
EN
DN
Characters Sent 23<
ER
0003 END
T4:1
DN
