Page 28
Publication 2706-6.3
Installation and Startup
3-11
Relay Connections
Use the DL40 plus slave relay to trigger a remote alarm or warning
light. The relay has contacts rated at 3A at 250V AC. Connect the
remote alarm or light to the relay connectors on the back of the DL40

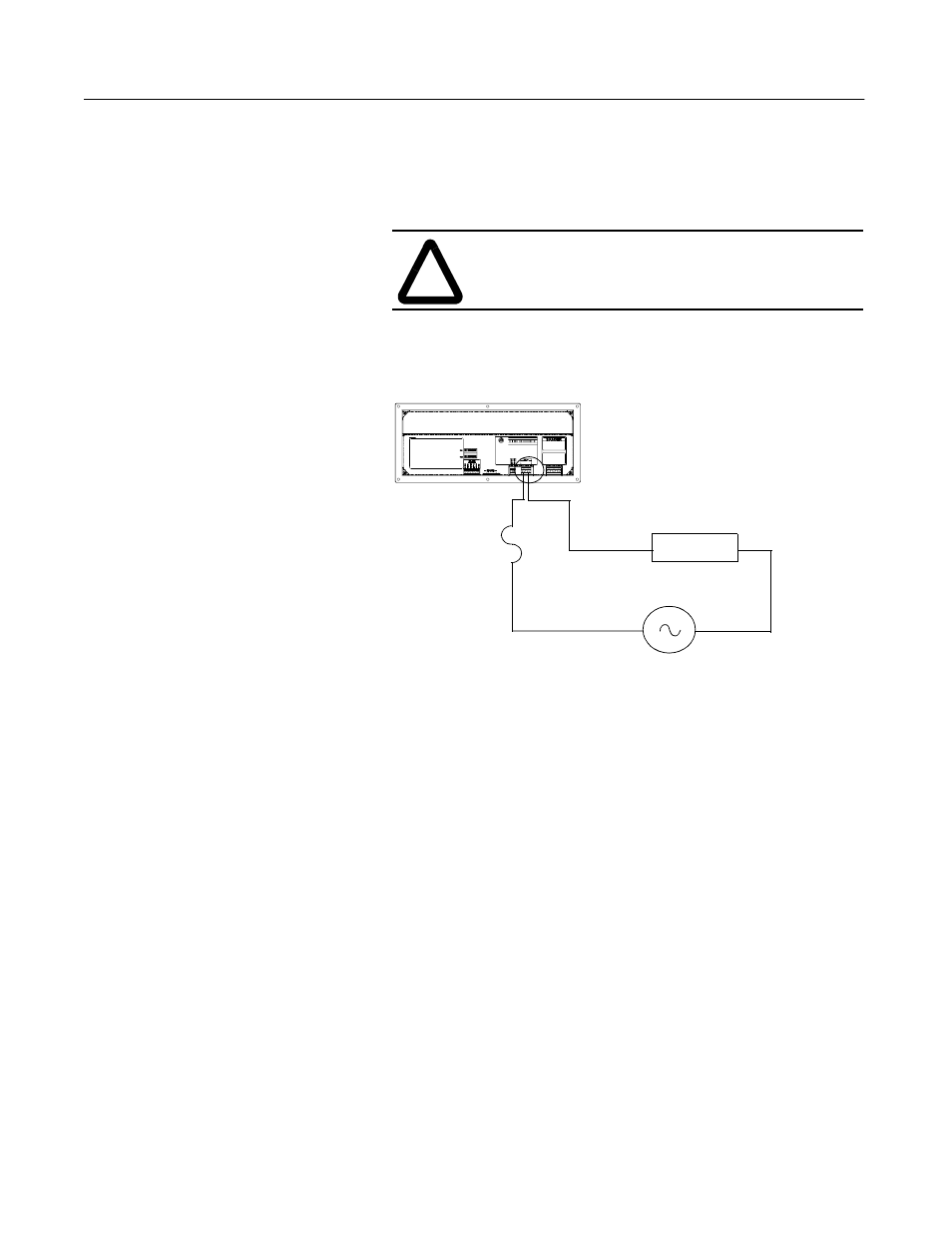

Plus Slave. Shown below is a typical wiring application.
!
ATTENTION: Use the Alarm Relay for annunciator
purposes only. Do not use it for control circuits.
AC Power
May be required if Annunciator control
circuit requires a voltage source.
Fuse 3A Max
Recommended
Annunciator
DL40 Plus Slave
