Publication 2706-6.3
2-2

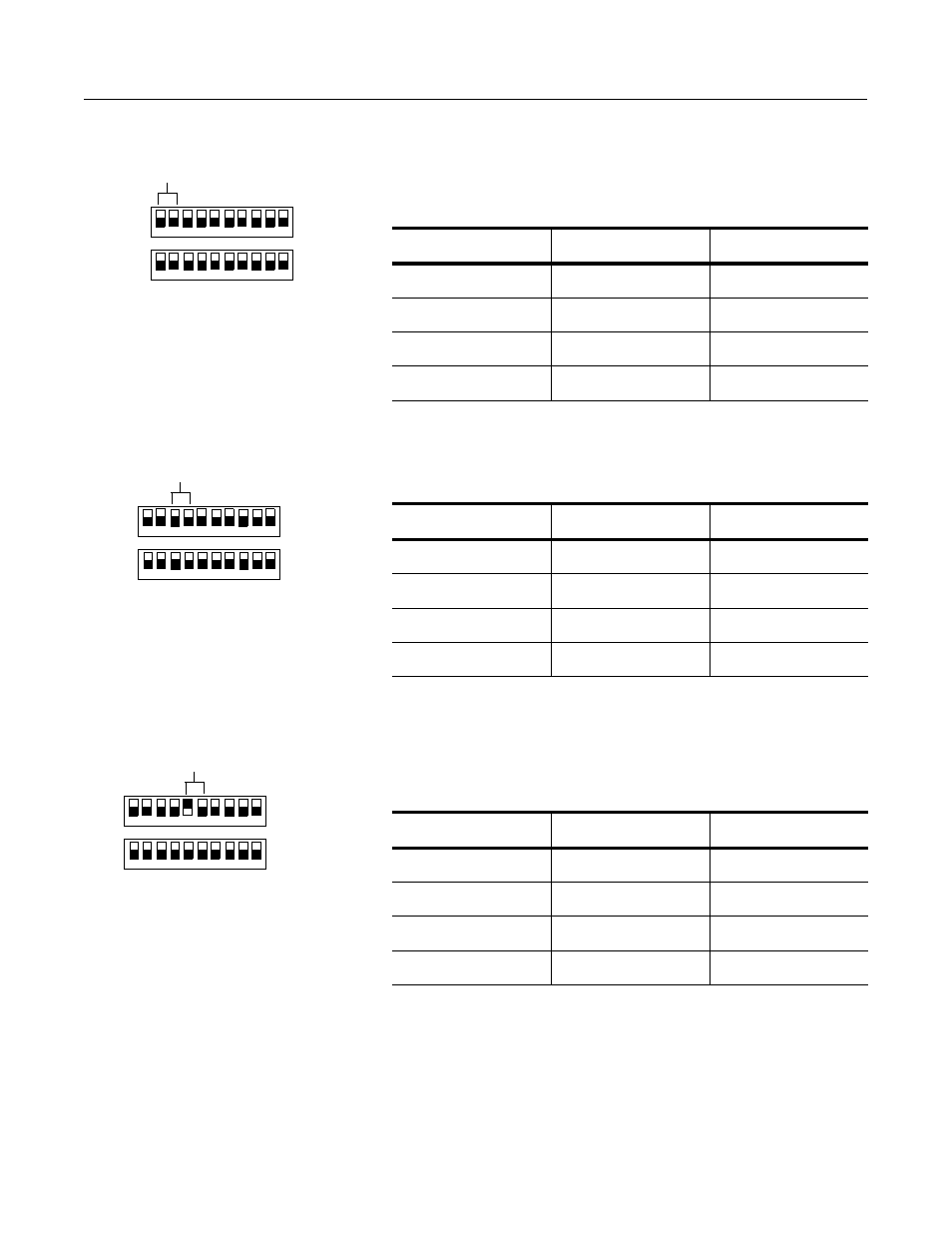

Setting the DIP Switches
Selecting the Operating Mode
The DL40 Plus Slave display operates in one of four modes. Chapter
1 briefly describes these modes. For detailed descriptions refer to the
individual chapters describing each mode. Select the mode using
position #1 and #2 of DIP Switch #1.
Display Language
The DL40 Plus Slave displays characters in one of three language
sets. Appendix B lists the characters in each of the language sets. Set
the display language using positions #3 and #4 of DIP Switch #1.
* Use either English setting, they provide identical character sets.
Baud Rate
Select the baud rate that matches the rate of the host device. Both the
RS-232 and RS-485 ports are set at this rate. Set the rate using
positions #5 and #6 of DIP Switch #1. The DL40 Plus Slave displays
the currently set baud rate during its powerup sequence.
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Mode (DL Slaves Setting)
DIP #1
DIP #2
Mode
Position #1
Position #2
DL Slave
Down
↓
Down
↓
PV Slave
Down
↓
Up
↑
Terminal
Up
↑
Down
↓
Diagnostic
Up
↑
Up
↑
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Language (English Setting)
DIP #1
DIP #2
Language
Position #3
Position #4
English*
Down
↓
Down
↓
International
Down
↓
Up
↑
Cyrillic
Up
↑
Down
↓
English (2)*
Up
↑
Up
↑
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Baud Rate (9600 Setting)
DIP #1
DIP #2
Baud Rate
Position #5
Position #6
300
Down
↓
Down
↓
1200
Down
↓
Up
↑
9600
Up
↑
Down
↓
19200
Up
↑
Up
↑
