Publication 2706-6.3

Installation and Startup

3-3

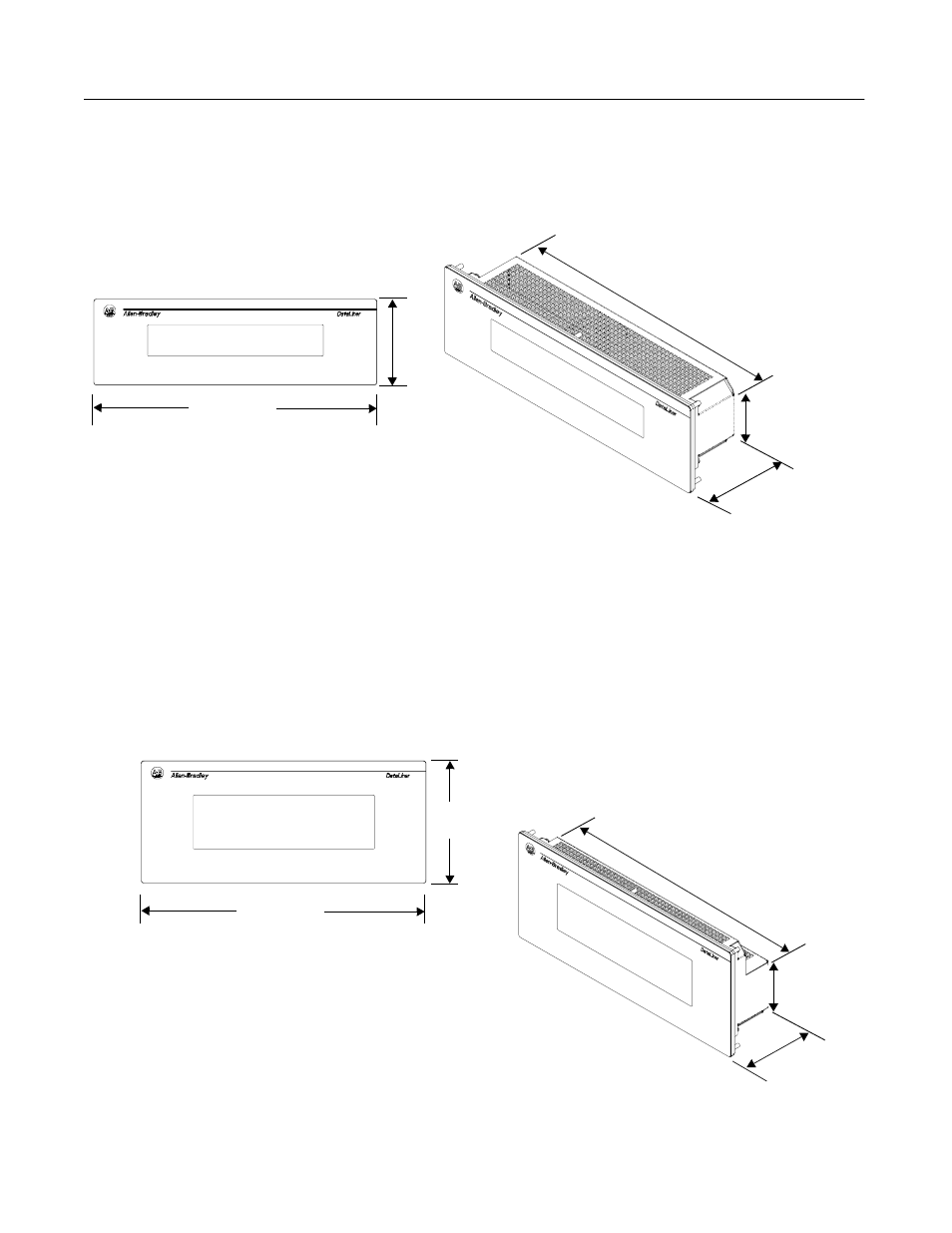

Dimensions

2-Line Display

Dimensions

4-Line Display

13.16

(334.2)

3.19

(81.0)

3.16

(80.3)

14.357 (365.0)

4.38

(111.3)

Dimensions are in inches (millimeters)

14.357 (365.0)

6.16

(156.4)

3.19

(81.0)

3.16

(80.3)

13.16

(334.2)

Dimensions are in inches (millimeters)
