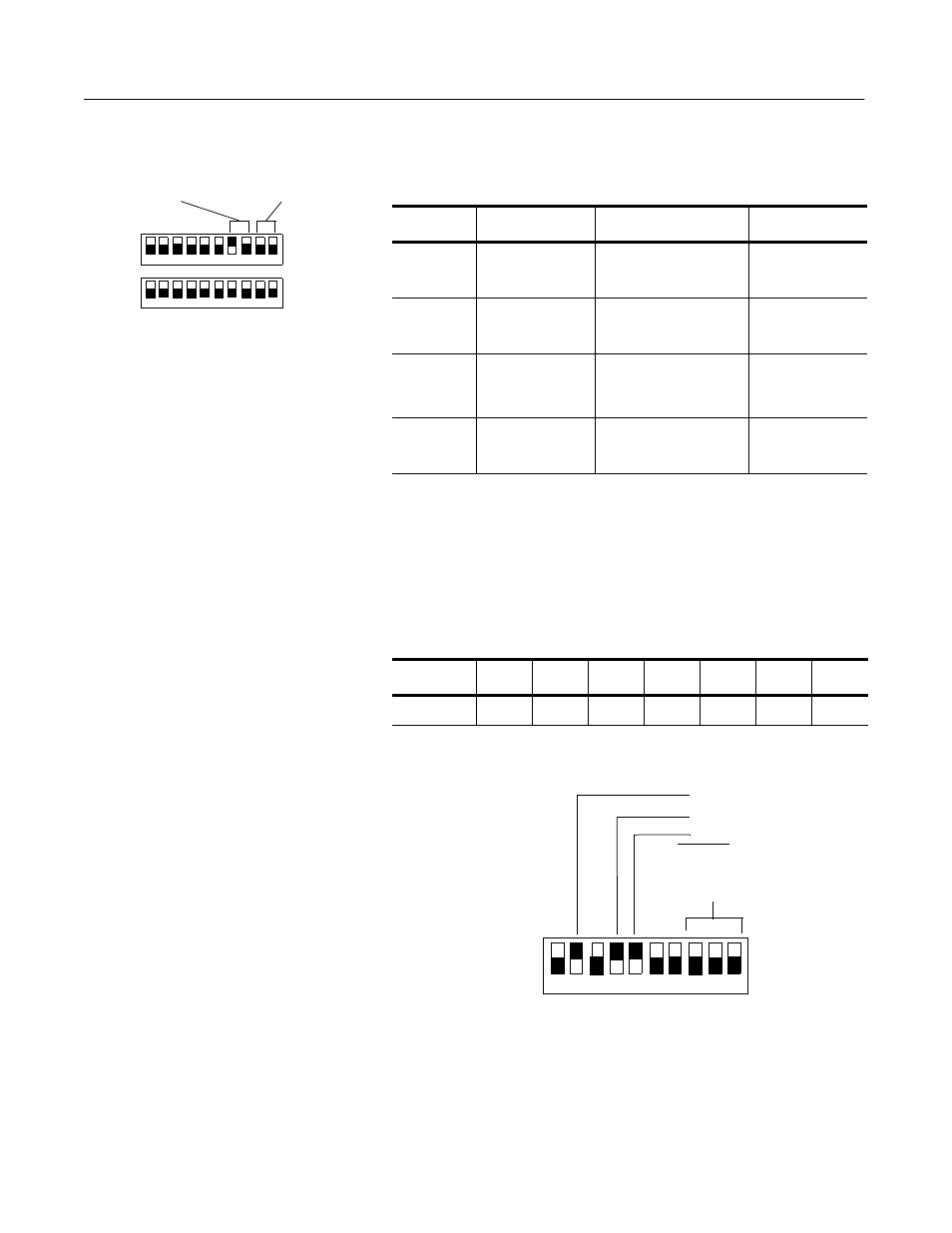

Setting the DIP Switches
2-3
Options
Positions #7 and #8 determine the parity, set the parity to match the
host device. Positions #9 and #10 apply to Terminal mode operation,
Refer to Chapter 6.
Serial Address
Position #1 through #7 of DIP Switch #2 select the serial address of
the slave display. The address is the binary sum of the value of all of
the switches in the Up condition. Position #7 is the least significant
position (ones position) and position #1 has the most significant value
(64 position) as shown below. Positions #8 to #10 are not used.
Refer to Appendix C for a list of all possible addresses and the
corresponding switch positions.
For example, with Positions #2, #4, and #5 in the up condition, the
serial address is 44.
Important: Address 13 and 18 are invalid slave addresses. If you
assign either of these addresses to a slave, the slave overrides the
setting and internally switches the address to 127.
1
2
3
4
5
6
7
8
9
10
Even Parity Enabled
DIP #1
DIP #2
1
2
3
4
5
6
7
8
9
10
Cursor &
Auto New Line
Disabled
Position #
Condition
Selects
Applies to:
#7
Up
↑
Down
↓
Parity Enabled
Parity Disabled
All Modes
#8
Up
↑
Down
↓
Odd Parity
Even Parity
All Modes
#9
Up
↑
Down
↓
Cursor Enabled
Cursor Disabled
Terminal Mode &
PV Slave Mode
#10
Up
↑
Down
↓
Auto New Line Enabled
Auto New Line Disabled
Terminal Mode &
PV Slave Mode
Position #
1
2
3
4
5
6
7
Value
64
32
16
8
4
2
1
1
2
3
4
5
6
7
8
9 10
32
8
4
44
Not Used
