Page 19
Publication 2706-6.3
3-2
Installation and Startup

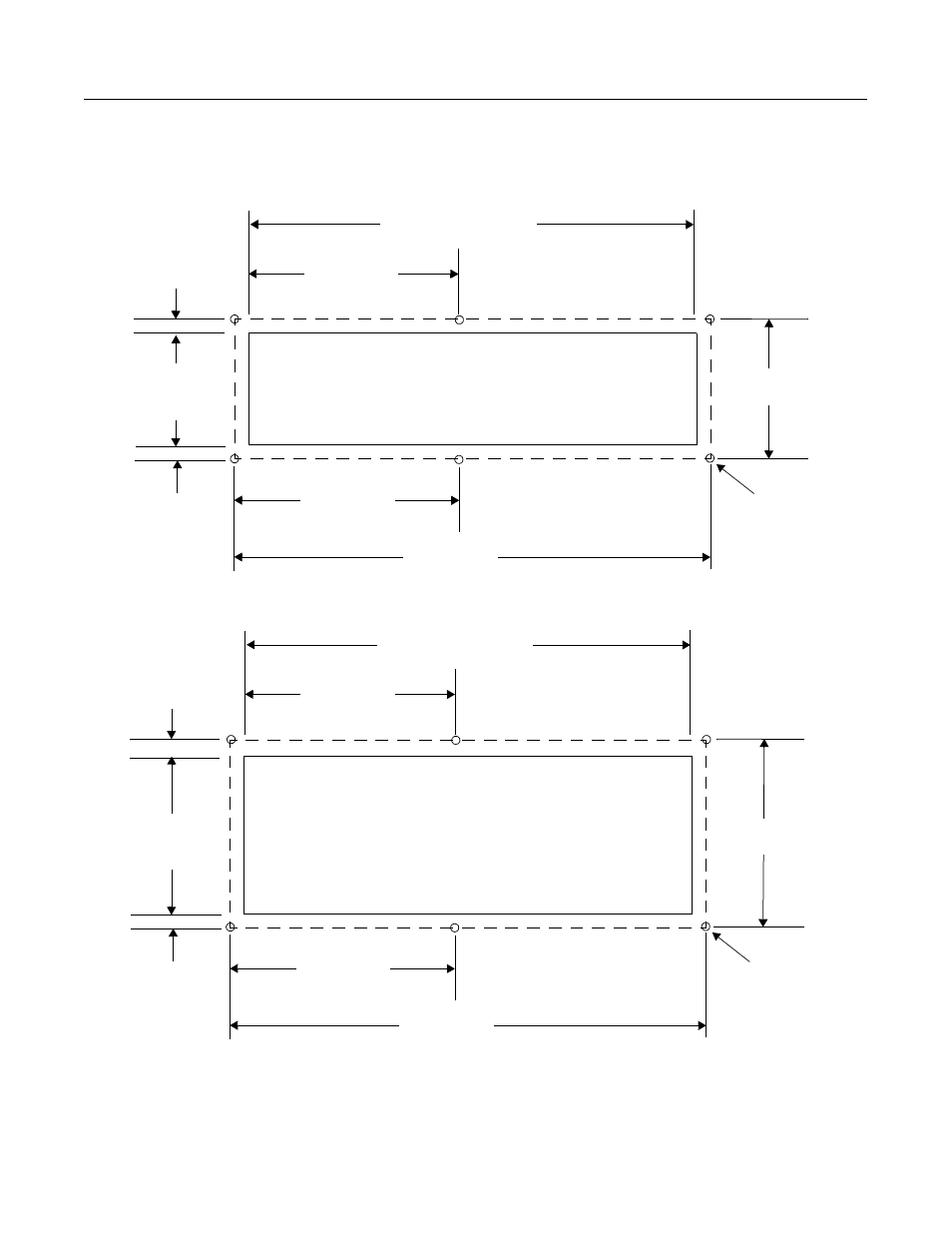

Panel Cutout Dimensions
Cutout 13.62 (345.9)
6.81 (173.0)
3.88
(98.4)
13.87 (352.3)
Cutout
3.50
(88.9)
6.94 (176.1)
0.19 (4.8)
0.19 (4.8)
0.25 (6.4)
Diameter Hole
6 places
All dimensions are in inches (millimeters)
2-Line Slave Display
Cutout 13.62 (345.9)
6.81 (173.0)
5.68
(144.3)
13.87 (352.3)
Cutout
5.30
(134.6)
6.94 (176.1)
0.19 (4.8)
0.19 (4.8)
0.25 (6.4)
Diameter Hole
6 places
4-Line Slave Display
