Rockwell Automation 1747-SN Remote I/O Scanner User Manual
Page 125
Publication 1747-UM013B-EN-P - January 2005
M0 - M1 Files and G Files B-13

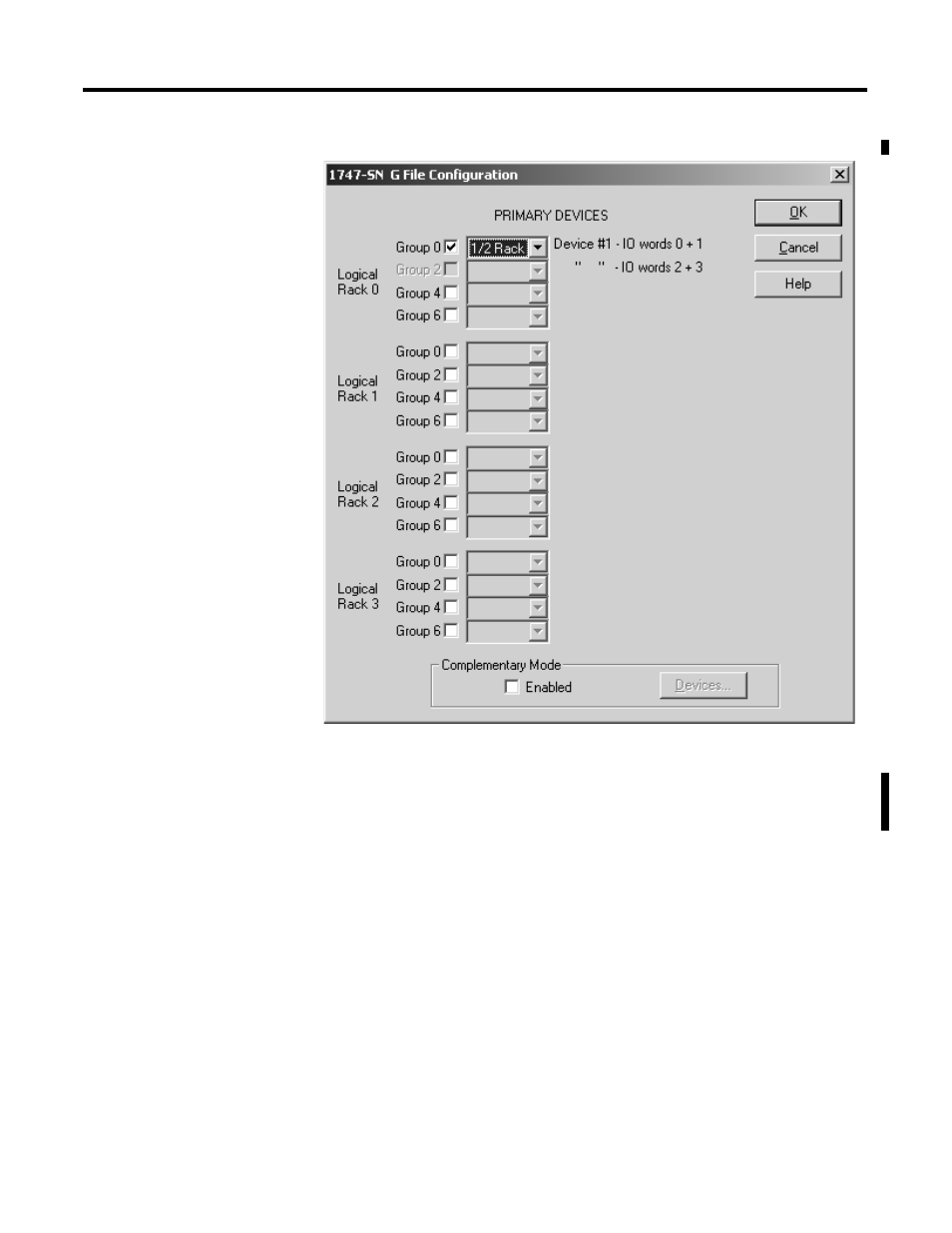

Figure 2.5 Example of a Half-Rack Addressing in Group 1
After all devices have been properly mapped, click OK and the G file
is automatically configured. This procedure eliminates the bit by bit
process needed to configure the G file with other programming tools.
