Using block transfer instructions (btr and btw), Using block transfer instructions (btr and btw) -5, Rio block transfer general functional overview -5 – Rockwell Automation 1747-SN Remote I/O Scanner User Manual

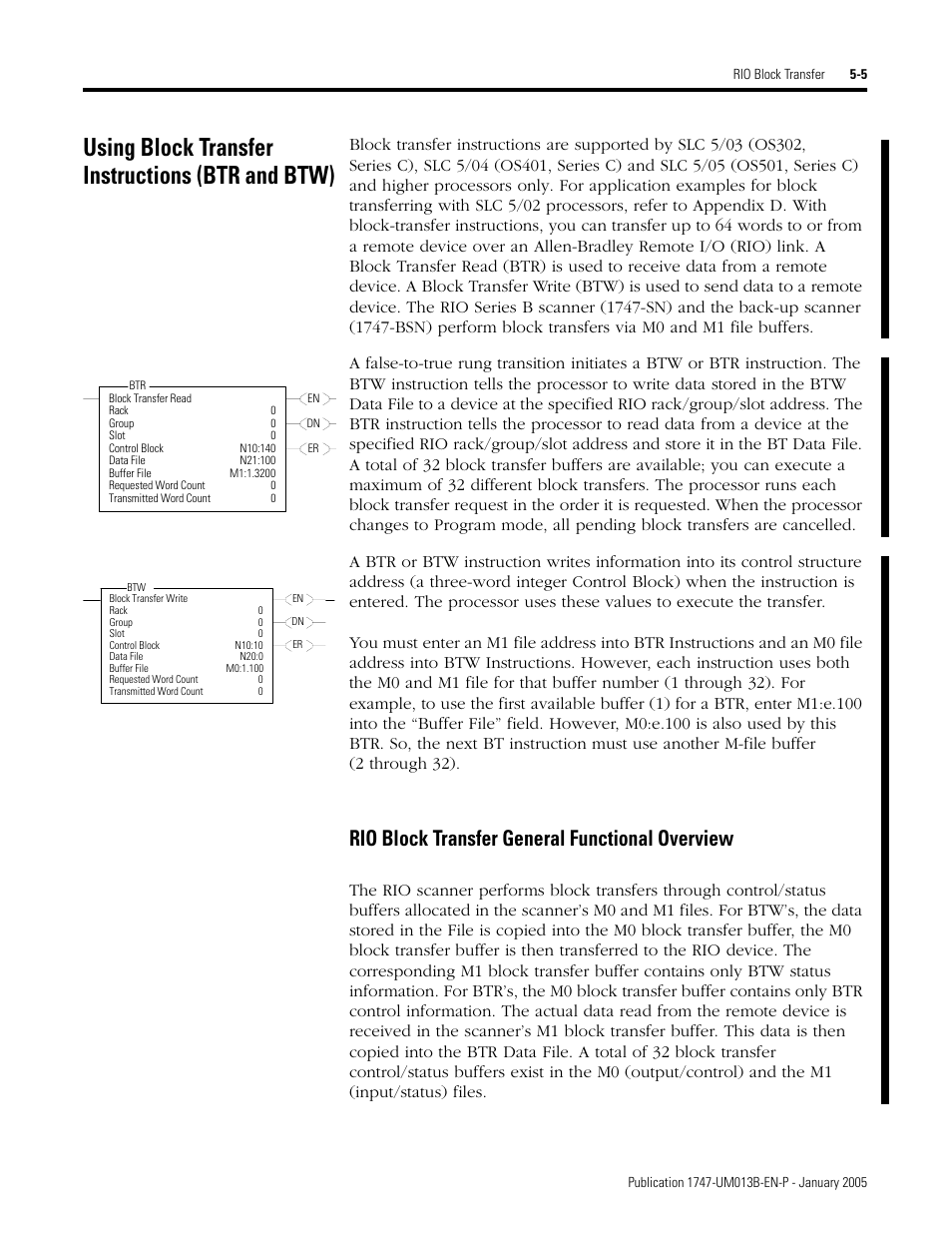

Page 83: Rio block transfer general functional overview
